Weidmuller RS-SIMPLEX 120VAC C/B 5A OUTLET DIN-Rail Receptacle with Circuit Breaker 991548

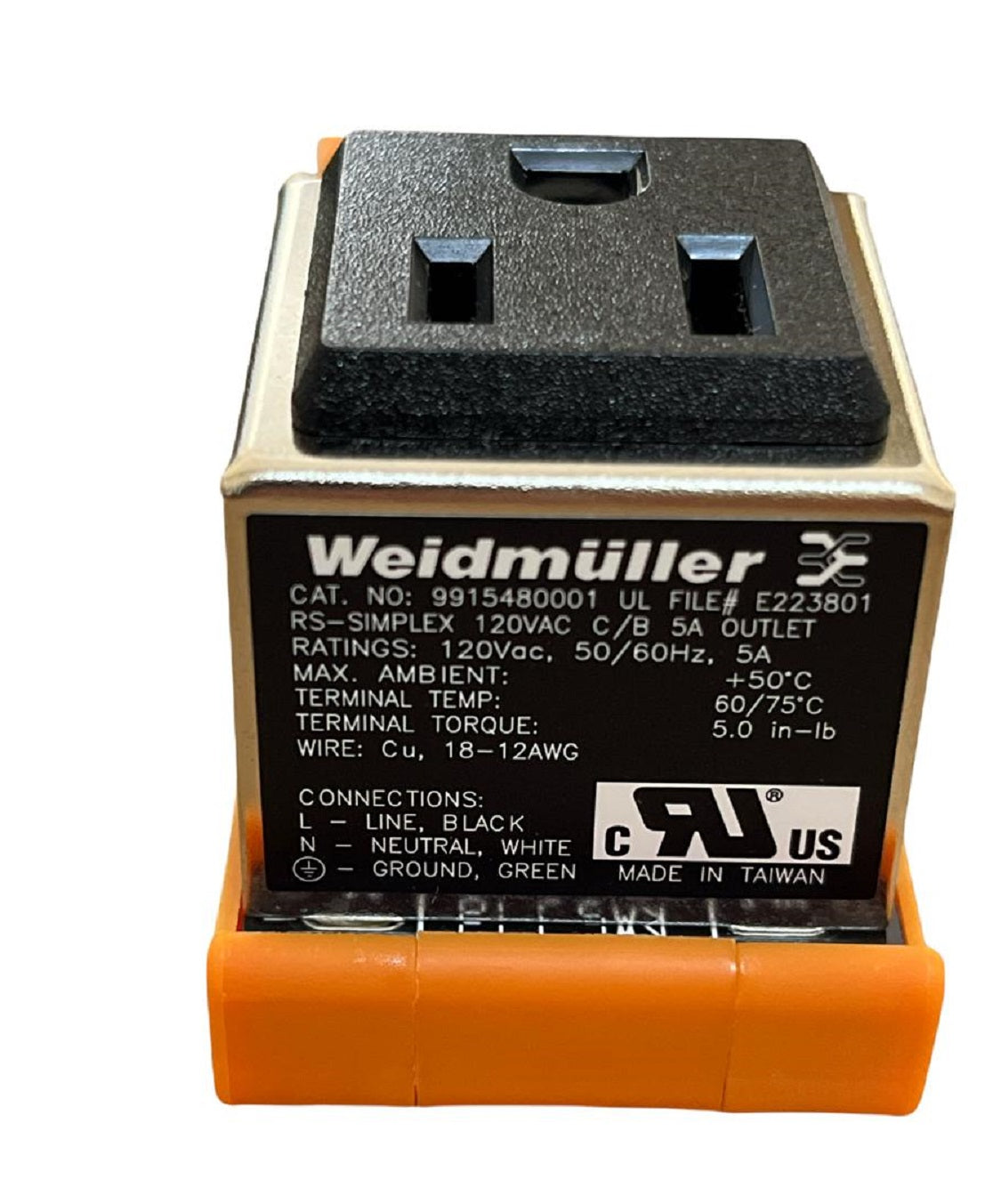

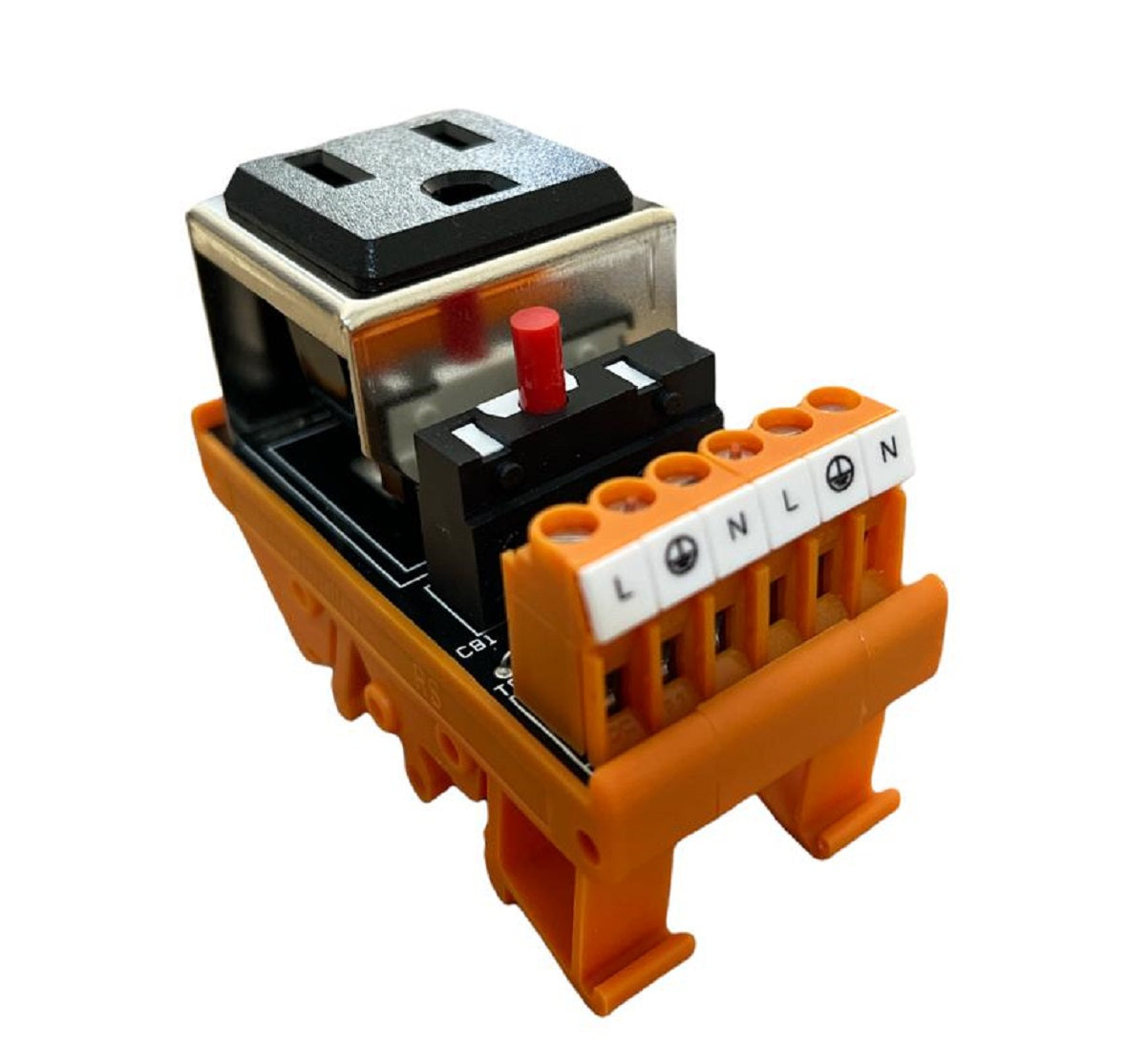

The Weidmüller RS-SIMPLEX 120VAC C/B 5A, Part No. 9915480001 is a compact industrial DIN-rail mounted 120 VAC receptacle with integrated 5 A circuit protection, designed to provide a convenient service power connection inside electrical control panels, automation cabinets, machinery, and industrial enclosures.

This simplex outlet combines a 120 VAC receptacle and an integrated 5 A circuit breaker / supplemental protector with manual push-button reset in a single compact device. This design helps reduce panel space requirements and simplifies installation by eliminating the need for a separate outlet and protective device.

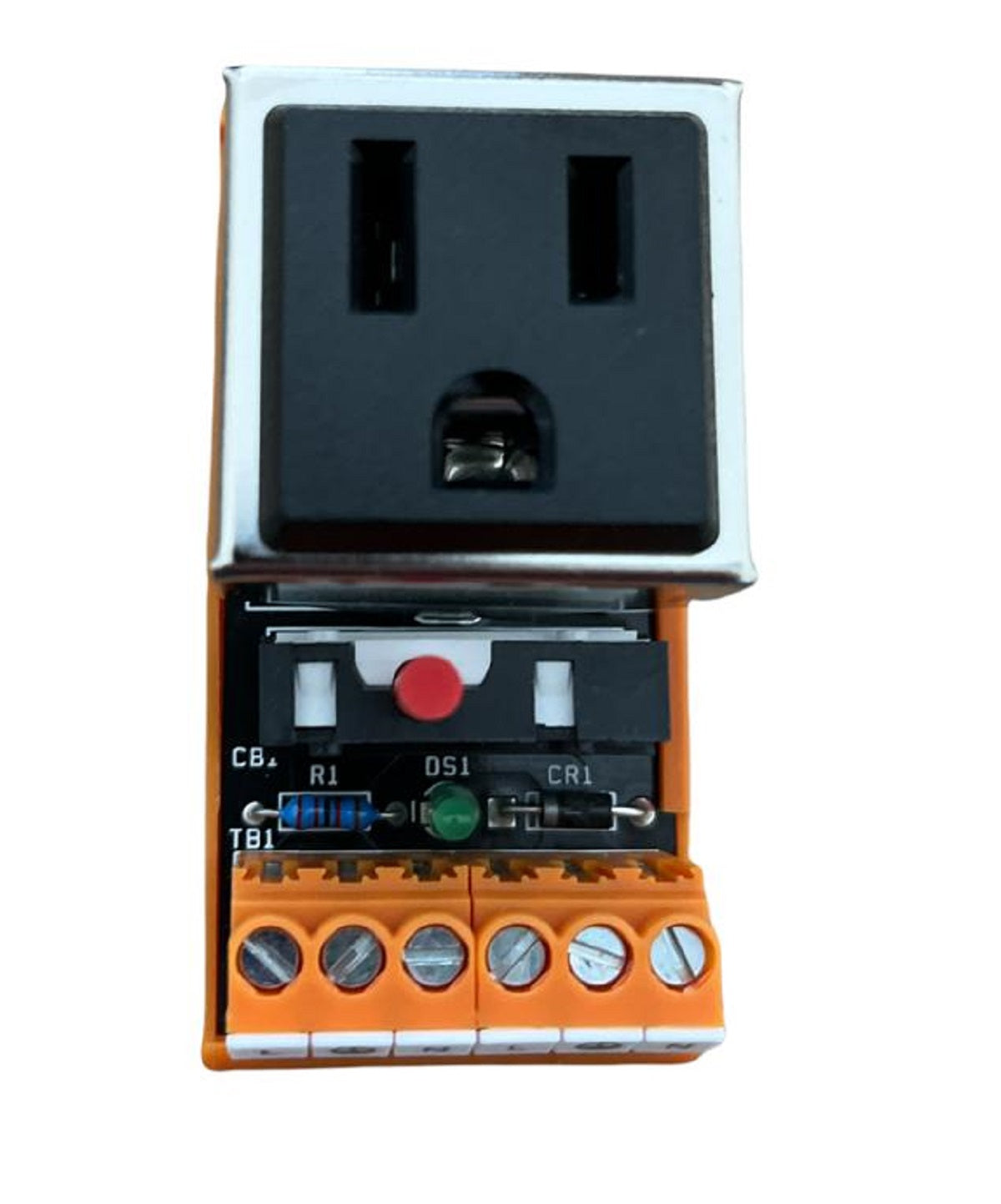

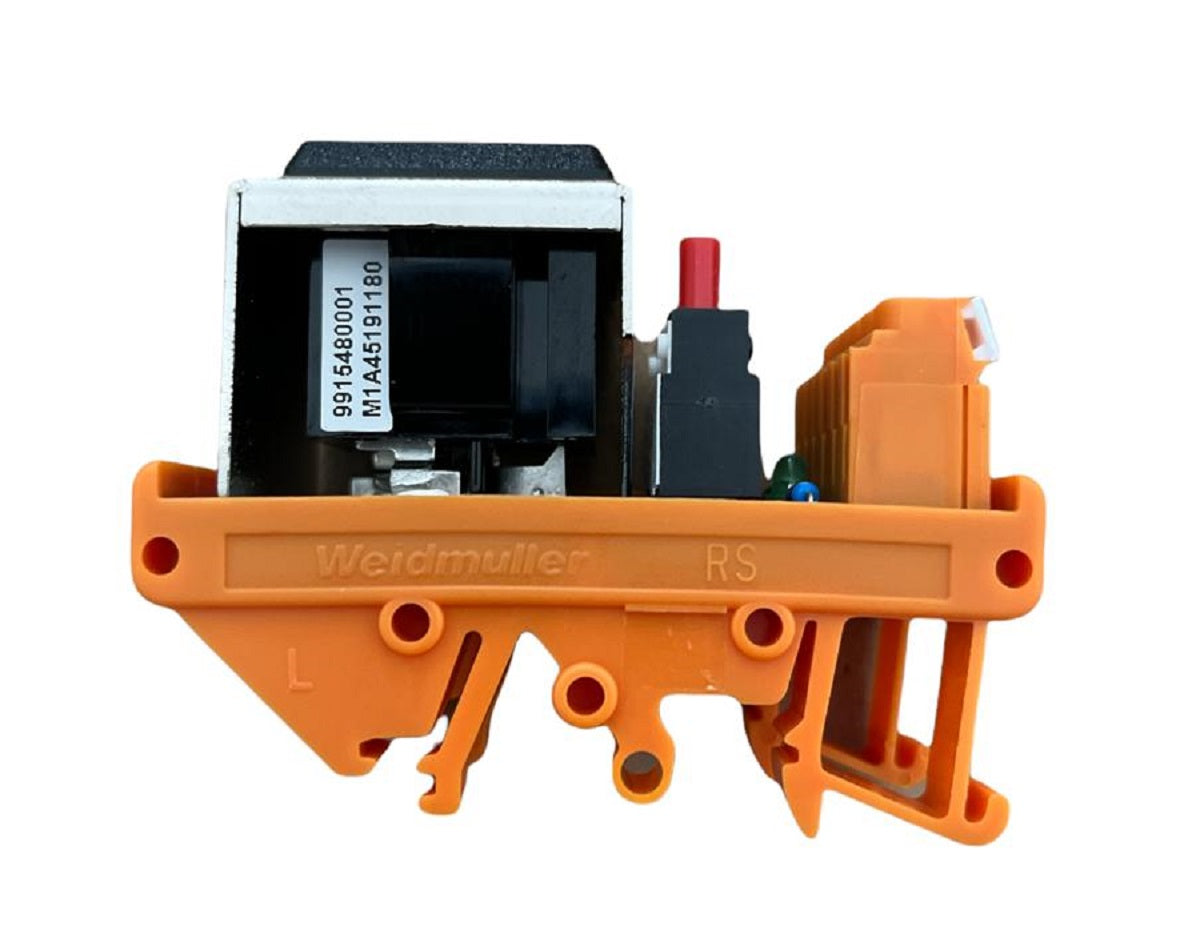

The unit mounts directly onto TS32 or TS35 DIN rail, making it especially suitable for industrial control cabinets where space, accessibility, and organized wiring are important.

Key Features

• Manufacturer: Weidmüller
• Series: RS-SIMPLEX
• Part Number: 9915480001
• Product Type: DIN-Rail AC Receptacle with Circuit Protection
• Receptacle Type: Single / Simplex Outlet
• Rated Voltage: 120 VAC
• Maximum Current: 5 A
• Protection: Integrated 5 A circuit breaker / supplemental protector
• Reset: Manual push-button reset
• DIN-Rail Mounting: TS32 or TS35
• Electrical Connection: Screw terminals
• Compact design for industrial control cabinets and electrical enclosures
• Provides convenient service power directly inside control panels

Technical Specifications

Rated Voltage: 120 VAC
Current Rating: 5 A max.
Wire Size: 26–12 AWG (0.14–4.0 mm²)
Wire Strip Length: 6 mm
Terminal Torque: 0.5–0.6 Nm
DIN Rail Compatibility: TS32 / TS35

Dimensions

Width: 35 mm (1.38 in)
Length: 70 mm (2.76 in)
Height: 58.5 mm (2.30 in)

Typical Applications

The Weidmüller RS-SIMPLEX 9915480001 is ideal for providing protected 120 VAC service power in:

• Industrial control panels
• Automation cabinets
• Electrical enclosures
• PLC control cabinets
• Machinery control systems
• OEM equipment
• Manufacturing equipment
• Maintenance and service power outlets
• Test and commissioning panels

Compact DIN-Rail Power Solution

By combining a 120 VAC simplex receptacle with integrated 5 A circuit protection, the RS-SIMPLEX provides a practical and space-saving solution for supplying service power inside industrial electrical cabinets.

It can be used to power maintenance tools, test equipment, laptops, diagnostic devices, and other compatible equipment without requiring a separately mounted receptacle and protective device.

Product Identification

Brand: Weidmüller
Model: RS-SIMPLEX 120VAC C/B 5A OUTL
Part Number: 9915480001
Voltage: 120 VAC
Current: 5 A
Mounting: TS32 / TS35 DIN Rail

The Weidmüller 9915480001 RS-SIMPLEX is a compact, professional solution for adding a protected 120 VAC, 5 A service outlet directly to a DIN rail inside industrial control panels and electrical enclosures.
