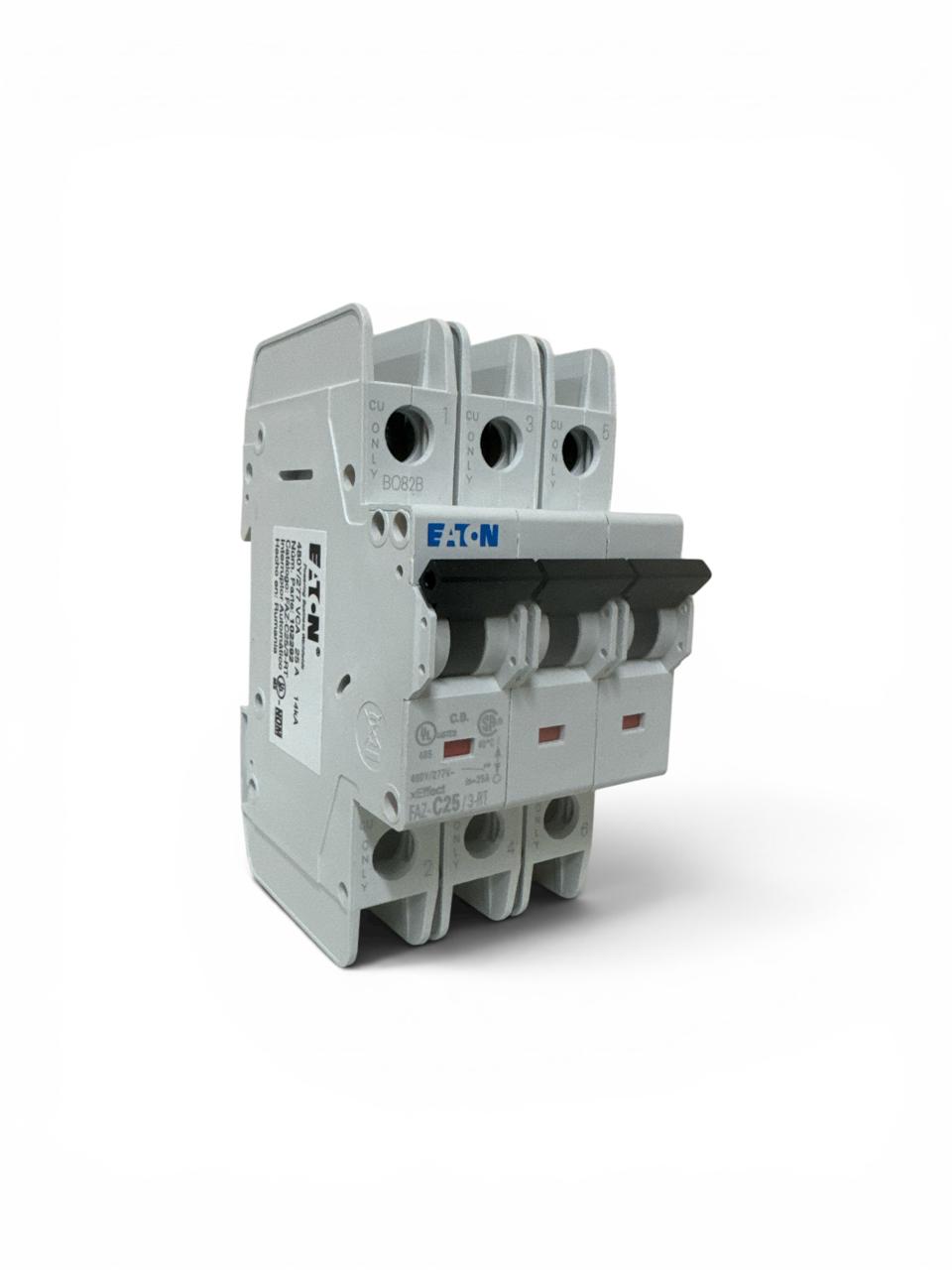

The EATON FAZ-C25/3-RT is a UL489-listed miniature circuit breaker engineered for reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. Built to EATON's exacting standards, this 3-pole breaker delivers consistent performance in demanding environments where uptime and safety are non-negotiable.
Key Specifications
Rated current: 25 A
Number of poles: 3
Trip curve: C (suitable for general loads, motors, and transformers with moderate inrush current)
Standard: UL 489 listed
Series: FAZ – Supplementary & Branch Circuit Protector
Terminal type: Ring tongue (RT) – for reliable lug connections
DIN rail mountable for easy panel integration
Compact design saves panel space
High breaking capacity for enhanced short-circuit protection
RoHS compliant
Typical Applications
Branch circuit protection in industrial control panels
Motor branch circuit protection
Commercial and industrial power distribution
Machine tool and automation equipment
HVAC and building electrical systems
Engineered by EATON, a global leader in power management solutions trusted by engineers and electricians worldwide for over a century.
