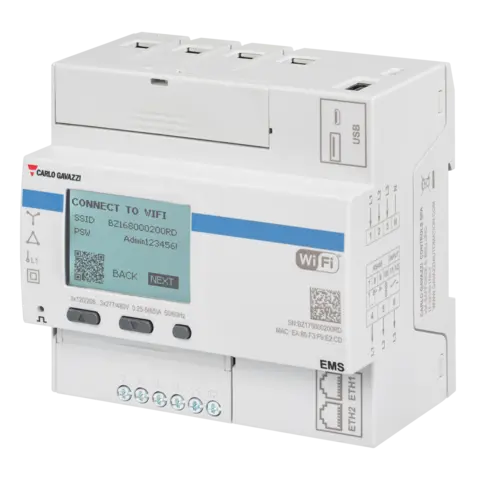

Carlo Gavazzi EMS10AV2O1X Three-phase IoT Energy Meter, 120–277 V L-N, 208–480 V L-L,
Carlo Gavazzi EMS10AV2O1X Three-phase IoT Energy Meter, 120–277 V L-N, 208–480 V L-L,
Regular price
$1,416.00 CAD
Regular price
Sale price
$1,416.00 CAD
Unit price
/
per
General Specifications
Carlo Gavazzi EMS10AV2O1X Three-phase IoT Energy Meter, 120–277 V L-N, 208–480 V L-L, direct connection up to 65 A, self-powered, with digital input and digital output, Ethernet Modbus TCP/IP, BACnet IP, and alarm plus remote control functions
| Catalog Number | EMS10AV2O1X |
| Voltage Inputs | Single-phase, two-phase, and three-phase (up to 480 V), so flexible for many grid types |
| Frequency | 50 / 60 Hz, therefore suitable worldwide |
| Current Inputs | Direct connection up to 65 A, which simplifies installation |
| Energy Metering | Consumption and generation, so useful for renewables |
| Outputs | Digital output, alarm, and remote control, therefore enhancing automation |
| Inputs | Digital input, which adds flexibility |
| Communication | Ethernet Modbus TCP/IP, BACnet IP, RS485 Modbus RTU, so integration is seamless |
| Power Supply | Self-powered, which reduces wiring complexity |
| Approvals | CE (Europe), cULus (North America), therefore globally compliant |
| Support Period | Until December 31, 2041, so long-term reliability |
| End of Life | December 31, 2036, which ensures clear lifecycle planning |
Features
- ✔ All-in-one design, so metering and communication are combined
- ✔ IoT-ready with Modbus TCP/IP and BACnet IP, therefore easy to integrate
- ✔ Direct connection up to 65 A, which simplifies installation
- ✔ Self-powered, so no external supply is needed
- ✔ Digital input and output, therefore more versatile
- ✔ Alarm and remote control outputs, which improve automation
- ✔ CE and cULus approvals, so globally compliant
Applications
- ✔ Commercial building energy monitoring, so efficient and reliable
- ✔ Industrial automation integration, therefore highly adaptable
- ✔ Renewable energy tracking for consumption and generation, which ensures sustainability
- ✔ IoT-ready energy management systems, so future-proof
- ✔ Smart grid and BMS integration, therefore scalable
