Regular price
$1.60 CAD
Regular price
Sale price
$1.60 CAD
Unit price
/
per
✅ Approvals
| Category |
Value |
| RoHS |
Conform |
📦 General Ordering Data
| Field |
Value |
| Version |

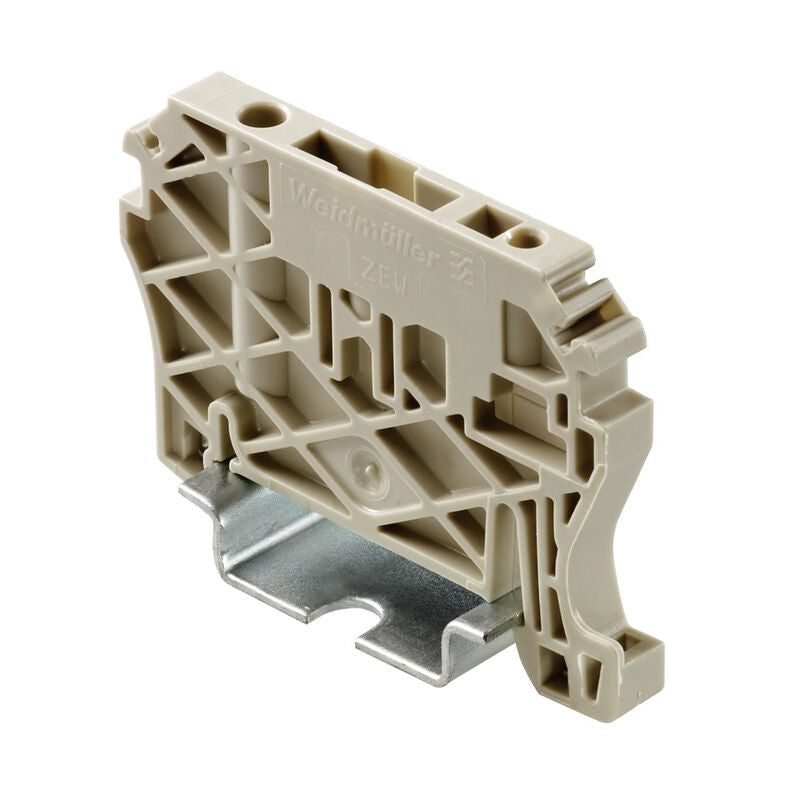

End bracket, dark beige, TS 35, V-2, Wemid, Width: 6 mm, 100 °C |
| Order No. |
9540000000 |
| Type |
ZEW 35 |
| GTIN (EAN) |
4008190956264 |
| Qty. |
20 items |
📐 Dimensions and Weights
| Dimension |
Metric |
Imperial |
| Depth |
40 mm |
1.575 inch |
| Height |
55 mm |
2.165 inch |
| Width |
6 mm |
0.236 inch |
| Net weight |
6.688 g |
— |
🌡️ Temperatures
| Condition |
Value |
| Ambient temperature |
-50 °C…55 °C |
| Continuous operating temp. |
-50 °C to 100 °C |
🌍 Environmental Product Compliance
| Category |
Value |
| RoHS Compliance Status |
Compliant without exemption |
| REACH SVHC |
No SVHC above 0.1 wt% |
| Product Carbon Footprint |
0.151 kg CO₂ eq. (cradle to gate) |
🧱 Material Data
| Field |
Value |
| Basic material |
Wemid |
| Colour |
Dark beige |
| UL 94 flammability rating |
V-2 |
⚙️ System Specifications
| Field |
Value |
| Version |
For the terminals |
| Mounting rail |
TS 35 |
| Installation advice |
Direct mounting |
| Locking |
Screwless |
| Type of mounting |
Snap-on |
| TS 35 offset |
41 mm |
🏷️ Classifications
| Standard |
Code |
| ETIM 8.0 |
EC001041 |
| ETIM 9.0 |
EC001041 |
| ETIM 10.0 |
EC001041 |
| ECLASS 14.0 |
27-25-03-02 |
| ECLASS 15.0 |
27-25-03-02 |
📄 Download Datasheet (PDF)
Share
View full details
