Regular price
$37.00 CAD
Regular price
Sale price
$37.00 CAD
Unit price
/
per
✅ Approvals
| Category |
Value |
| RoHS |
Conform |
| Certificate no. (cULus) |
E499744 |
📦 General Ordering Data
| Field |
Value |
| Version |

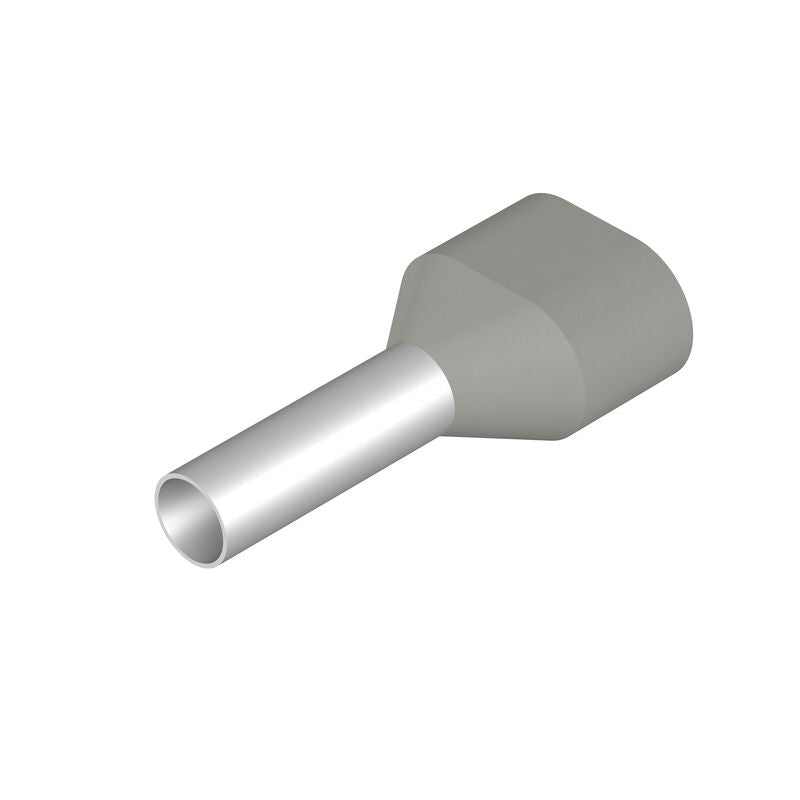

Wire-end ferrule, Twin wire-end ferrule, 15 mm, 12 mm, grey |
| Order No. |
9037530000 |
| Type |
H4,0/22D ZH GR |
| GTIN (EAN) |
4008190493103 |
| Qty. |
100 items |
| Packaging |
Loose |
📐 Dimensions and Weights
| Field |
Value |
| Net weight |
0.42 g |
🌍 Environmental Product Compliance
| Category |
Value |
| RoHS Compliance Status |
Compliant without exemption |
| REACH SVHC |
No SVHC above 0.1 wt% |
⚙️ Technical Data
| Field |
Value |
| Description of article |
Twin wire end ferrule, grey |
| Version |
Twin wire-end ferrule |
| Collar height (A) |
9 mm |
| Collar width (B) |
5.2 mm |
| Colour code |
DIN |
| Conductor cross-section |
4 mm² |
| Contact surface diameter (D1) |
3.5 mm |
| Contact surface length (L2) |
12 mm |
| L1 |
22 mm |
| Metal sleeve thickness (S1) |
0.2 mm |
| Plastic collar thickness (S2) |
0.5 mm |
| Stripping length |
15 mm |
| Wire connection cross section AWG, max. |
AWG 12 |
🏷️ Classifications
| Standard |
Code |
| ETIM 8.0 |
EC000005 |
| ETIM 9.0 |
EC000005 |
| ETIM 10.0 |
EC000005 |
| ECLASS 14.0 |
27-40-02-01 |
| ECLASS 15.0 |
27-40-02-01 |
📄 Download Datasheet (PDF)
