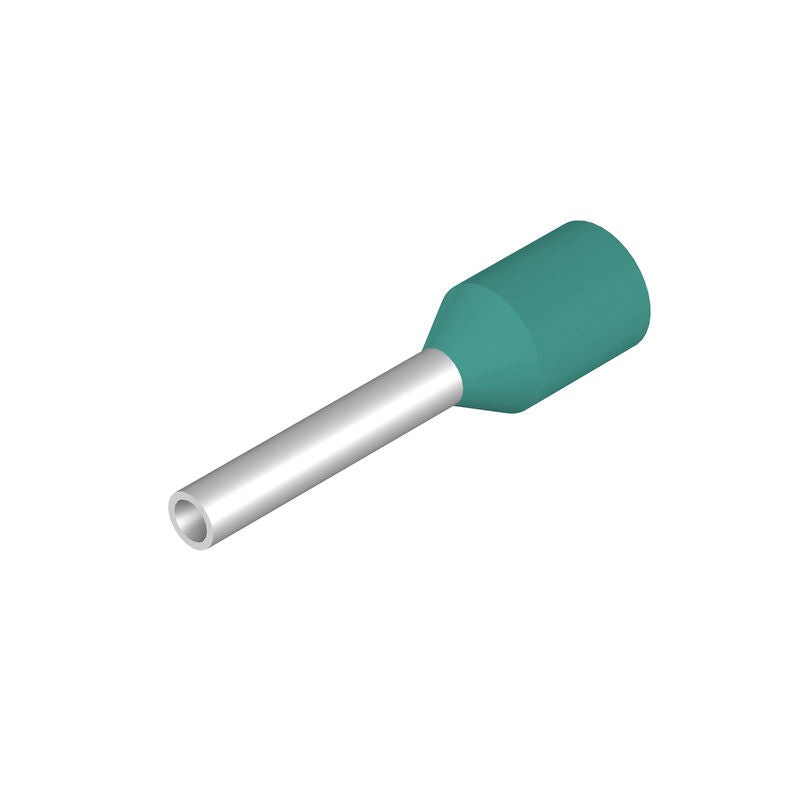

9025750000 H0,34/10 TK Wire-end ferrule, Standard, 8 mm, 6 mm, Turquoise

9025750000 H0,34/10 TK Wire-end ferrule, Standard, 8 mm, 6 mm, Turquoise

$52.00 CAD
$52.00 CAD
Sale Sold out



✅ Approvals

Category Value
RoHS Conform
Certificate no. (cULus) E499744

📦 General Ordering Data

Field Value
Version Wire-end ferrule, Standard, 8 mm, 6 mm, Turquoise
Order No. 9025750000
Type H0,34/10 TK
GTIN (EAN) 4008190105365
Qty. 500 items
Packaging Loose

📐 Dimensions and Weights

Field Value
Net weight 0.04 g

🌍 Environmental Product Compliance

Category Value
RoHS Compliance Status Compliant without exemption
REACH SVHC No SVHC above 0.1 wt%

⚙️ Technical Data

Field Value
Description of article Wire end ferrule with plastic collar, turquoise
Version Standard
Collar diameter (D2) 2 mm
Colour code Weidmueller
Conductor cross-section 0.34 mm²
Contact surface diameter (D1) 0.8 mm
Contact surface length (L2) 6 mm
L1 10 mm
Metal sleeve thickness (S1) 0.15 mm
Plastic collar thickness (S2) 0.25 mm
Stripping length 8 mm
Wire connection cross section AWG, max. AWG 22

🏷️ Classifications

Standard Code
ETIM 8.0 EC000005
ETIM 9.0 EC000005
ETIM 10.0 EC000005
ECLASS 14.0 27-40-02-01
ECLASS 15.0 27-40-02-01

📄 Download Datasheet (PDF)

View full details
