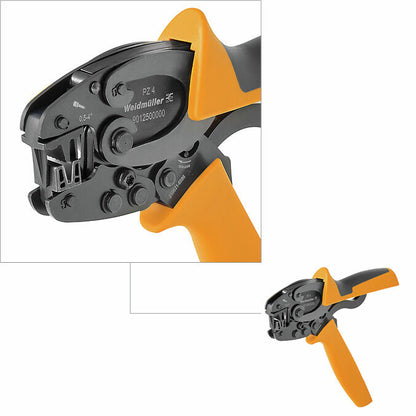

9012500000 PZ 4 Pressing tool, Crimping tool for wire-end ferrules, 0.5mm², 4mm², Trapezoidal crimp

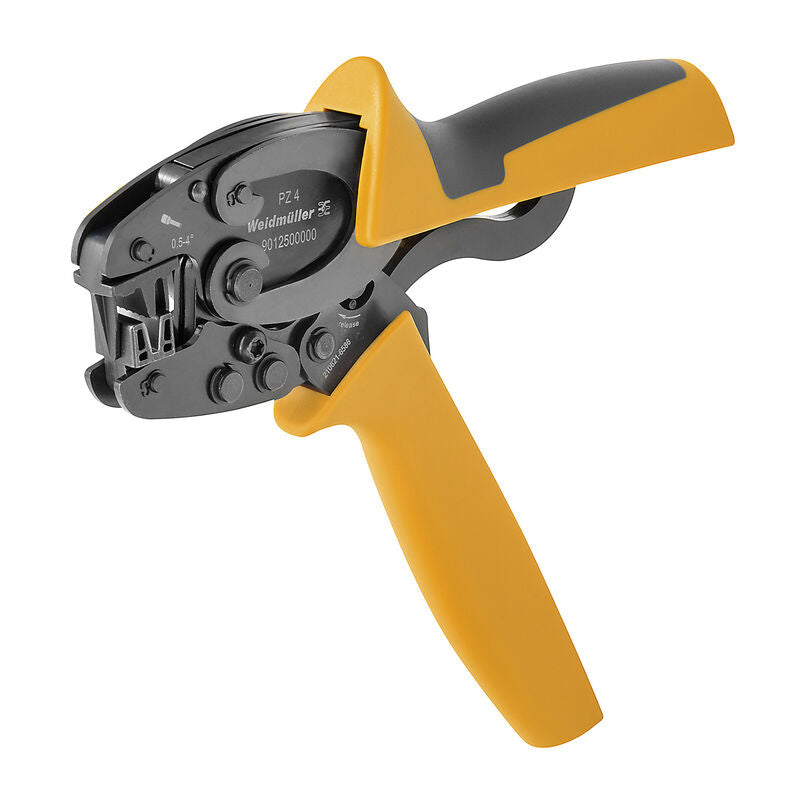

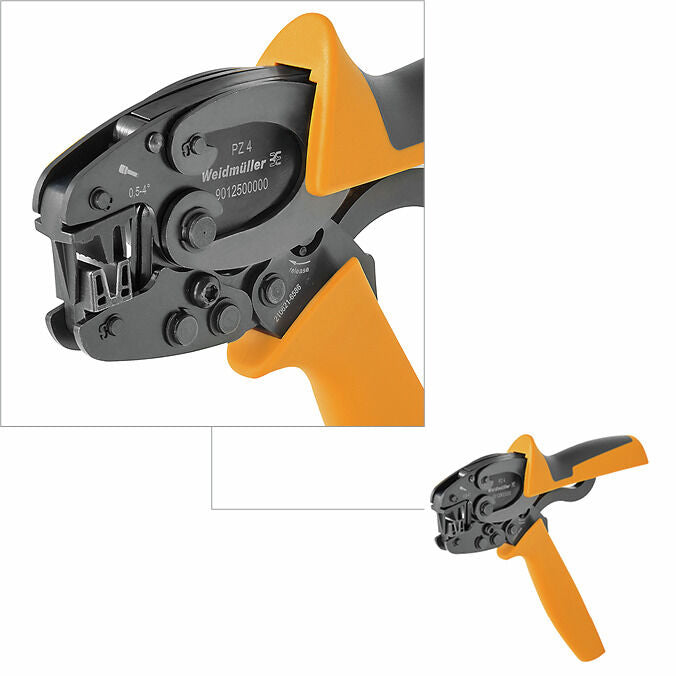

PZ 4 Crimping Tool, 0.5–4 mm²

Version: Pressing tool, Crimping tool for wire-end ferrules, 0.5–4 mm², Trapezoidal crimp

Order No.: 9012500000

Type: PZ 4

GTIN (EAN): 4008190090920

Quantity: 1 item

Dimensions & Weights

• Width: 200 mm (7.874 inch)
• Net weight: 425.6 g

Environmental Compliance

• RoHS: Not affected
• REACH SVHC: Lead 7439-92-1
• SCIP: 2159813b-98fd-4068-b62a-bc89a046c012

Technical Data

• Description: Crimping tool for wire-end ferrules
• Version: Mechanical, without interchangeable inserts
• Conductor cross-section: 0.5–4 mm² (AWG 21–12)

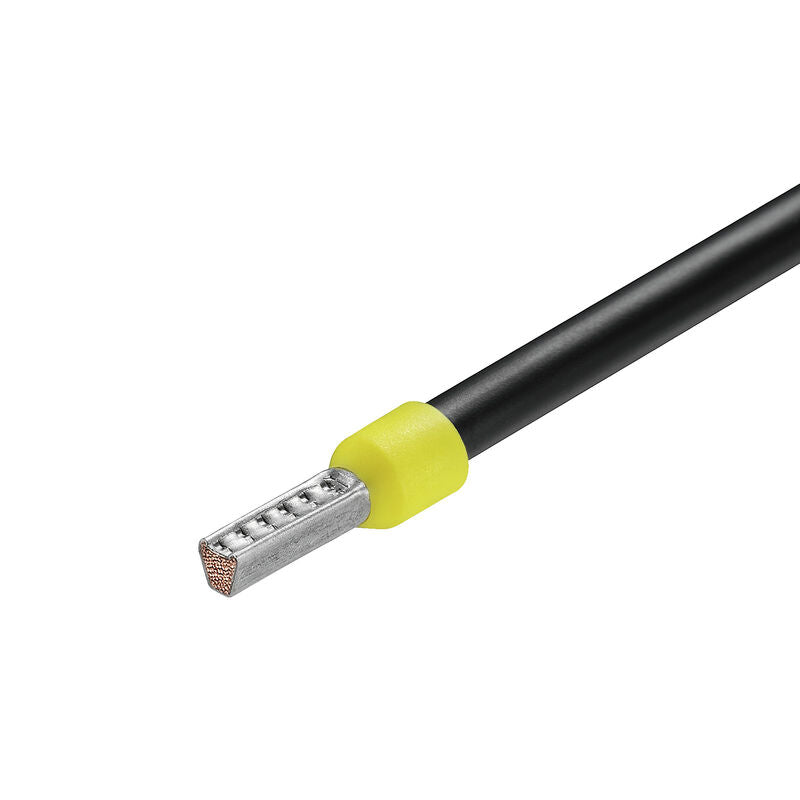

• Type of contact: Wire-end ferrules with/without plastic collars
• Crimping type/profile: Trapezoidal crimp
• Drive: Mechanical

Classifications

• ETIM 8.0: EC000168
• ETIM 9.0: EC000168
• ETIM 10.0: EC000168
• ECLASS 14.0: 21-04-38-11
• ECLASS 15.0: 21-04-38-11

The PZ 4 Crimping Tool is a reliable mechanical pressing tool designed for wire-end ferrules ranging from 0.5 to 4 mm². With its trapezoidal crimp profile, it ensures secure and consistent connections. Built from durable materials and engineered for professional use, this tool delivers precision, efficiency, and long-term performance in electrical and industrial applications.
