📦 General Ordering Data
| Field |
Value |
| Version |
Tools, Sheathing strippers |
| Order No. |
9001080000 |
| Type |
AM 35 |
| GTIN (EAN) |
4008190208011 |
| Qty. |
1 item |
📐 Dimensions and Weights
| Dimension |
Metric |
Imperial |
| Depth |
33 mm |
1.299 inch |
| Height |
174 mm |
6.85 inch |
| Width |
53 mm |
2.087 inch |
| Net weight |
127.73 g |
— |
🌍 Environmental Product Compliance
| Category |
Value |
| RoHS Compliance Status |
Not affected |
| REACH SVHC |
Lead 7439-92-1 |
| SCIP |
cf06c250-ed1e-4a45-9c1b-c5c8cbf13bf0 |
⚙️ Technical Data
| Field |
Value |
| Description of article |

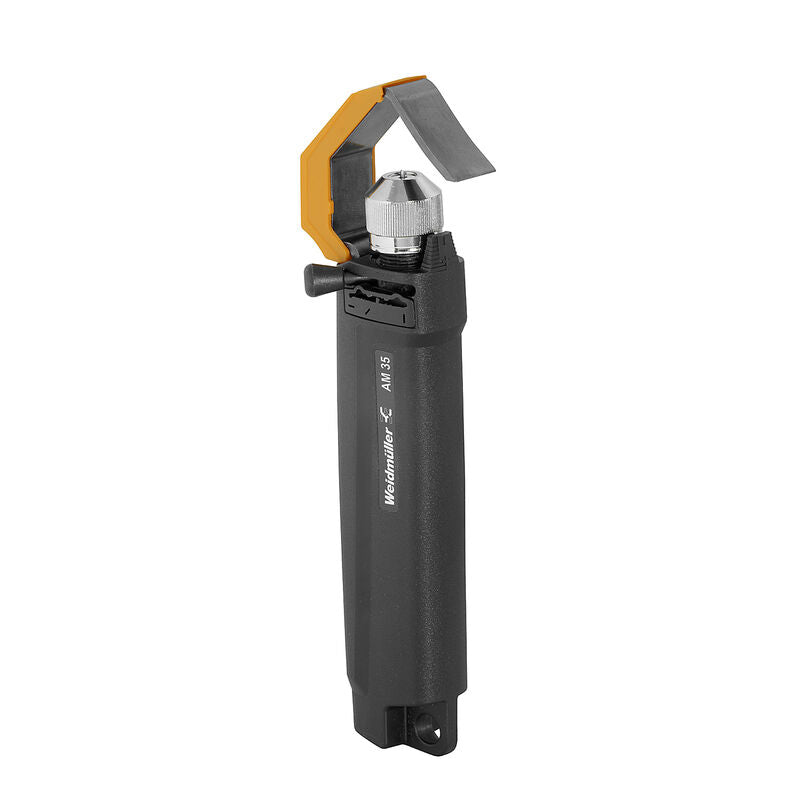

Sheathing stripper for up to 35 mm outer diameter |
| Cable type |
PVC round cable |
| Conductor cross-section, max. |
962 mm² |
| Conductor cross-section, min. |
490 mm² |
| Cut depth |
Adjustable up to 4.5 mm |
| Max. conductor diameter |
35 mm |
| Min. conductor diameter |
25 mm |
🏷️ Classifications
| Standard |
Code |
| ETIM 8.0 |
EC000163 |
| ETIM 9.0 |
EC000163 |
| ETIM 10.0 |
EC000163 |
| ECLASS 14.0 |
21-04-90-90 |
| ECLASS 15.0 |
21-04-90-90 |
