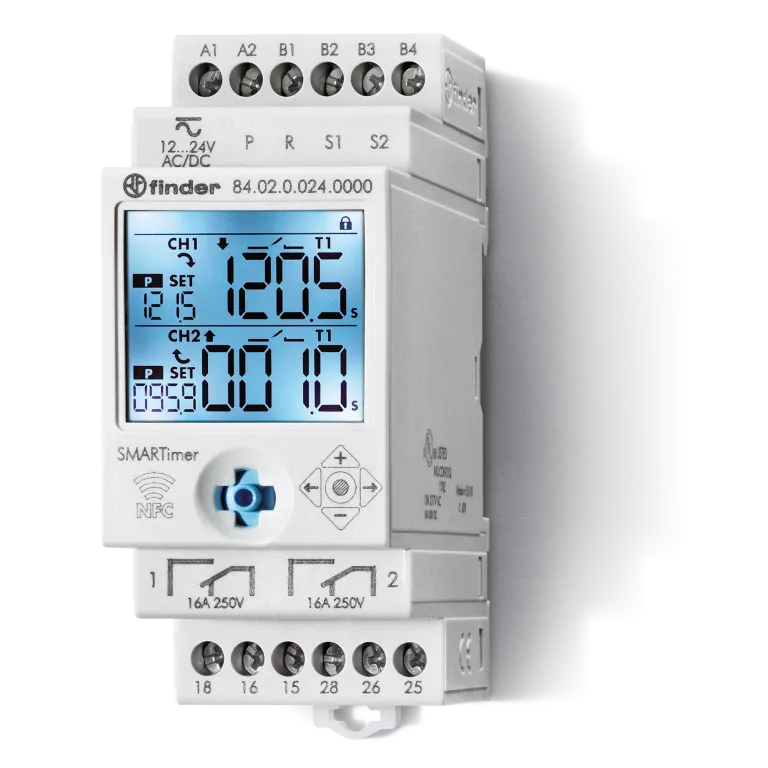

84.02.0.024.0000 Type 84.02 - FINDER SMARTimer 16A

Type 84.02 is a digital SMARTimer, multi-function with ‘2 in 1’ two channels programmable, totally independently, in a single product. It has two programming modes: ‘Smart’ mode via Smartphone with NFC technology or ‘Classic’ mode via integrated joystick.
This product has large backlit LCD display for easy parameter reading and it is flexible because of the possibility to create new specific functions, mixing the 30 functions available on each channel.
The large display allows for easy display of target time, partial time, timing indicator in progress, status of inputs, status of outputs.

Features include:

• 2 changeover contacts 16 A
• Two supply voltages available:12 … 24 V AC/DC and 110 … 240 V AC/DC (non-polarized)
• Great precision and possibility of choice for defining times:
  • Scale settable in tenths of a second, seconds, minutes, hours
  • Times settable from 1 tenth of a second to 9999 hours
• Separate Start inputs for each channel; common reset input and common pause input (that can be enabled on each channel)
• PIN that can be set to protect access to programming
• Type of counting selectable ascending or descending
• 35 mm rail (EN 60715) mounting

Type 84.02.0.024.0000: possible direct interface with sensors of proximity (both PNP and NPN)
