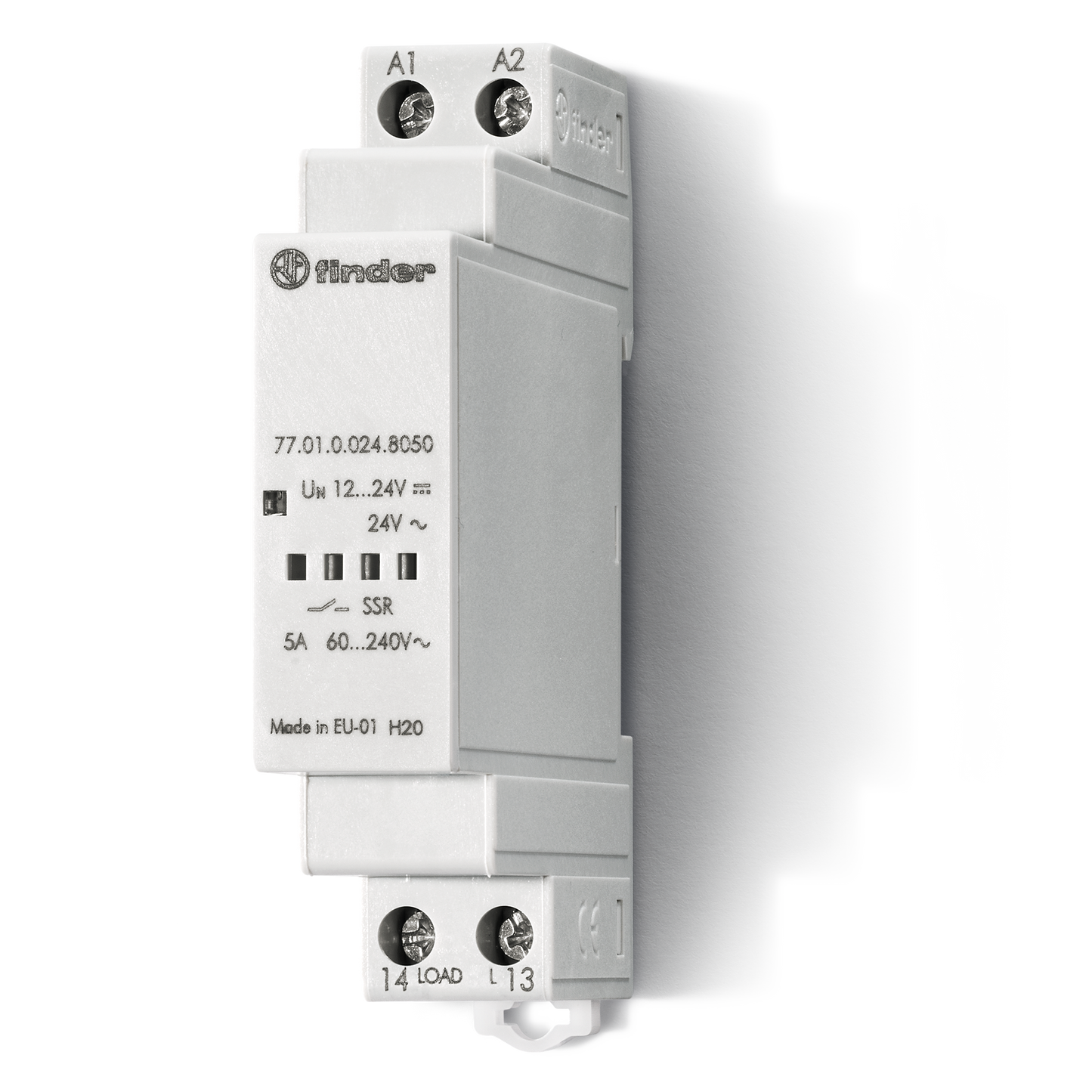

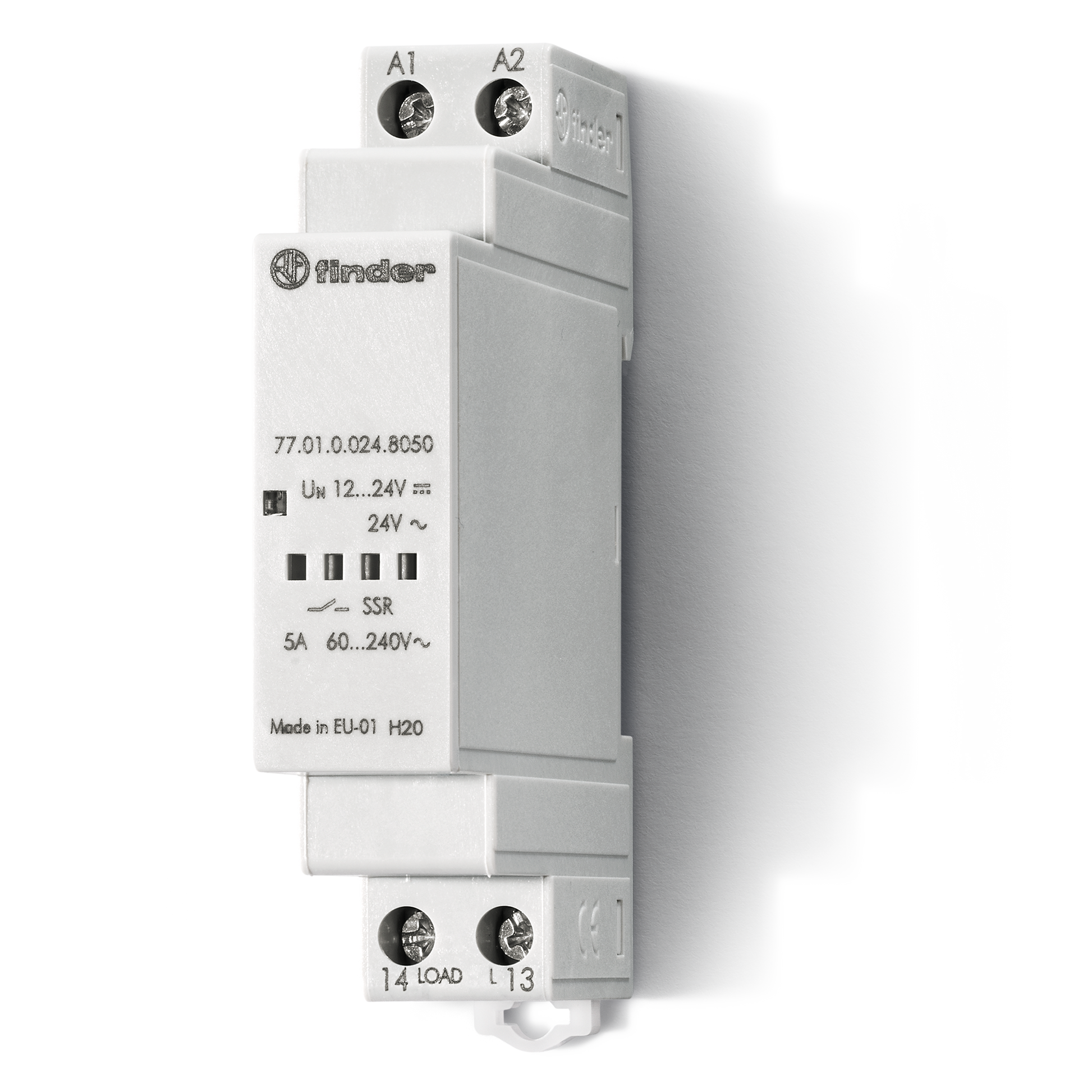

77.01.9.024.9024 Type 77.01 - Modular Solid State Relay 5A
77.01.9.024.9024 Type 77.01 - Modular Solid State Relay 5A
Regular price
$107.00 CAD
Regular price
Sale price
$107.00 CAD
Unit price
per
Commercial Description
7 - 15 A modular SSR relays, 1 NO DC output (versions for 24 and 125 V DC mosfet output). High switching speed. High endurance. Silent spark and bounce-free switching. Low control power. Suitable for railway applications. 35 mm rail (EN 60715) mount Applications in Energy, Automation and Machines: Control of electric, pneumatic and hydraulic electromagnetic valves, motors and electromagnets.
Contact configuration 1 NO
Dimensions 17.5x85.3x56.5 mm
Electrical life: 10000000 cycles
Nominal voltage DC 24 V
Operating range DC 4...32 V
Rated contact voltage 24 V AC
Rated current (contacts) 15
Rated power DC 0.5 W
Supply DC supply version
Technical description
Solid State Relays, 5/7/15 A Output, 1 pole, modular housing, Output circuit 24 V DC, DC supply version, nominal voltage 24 V, operating from 4 to 32 V, rated power 0.5 W, consumption 18 mA, must drop-out voltage 3 V, ambient temperature from -20 to +70 °C
Certifications and quality approvals (according to type)
