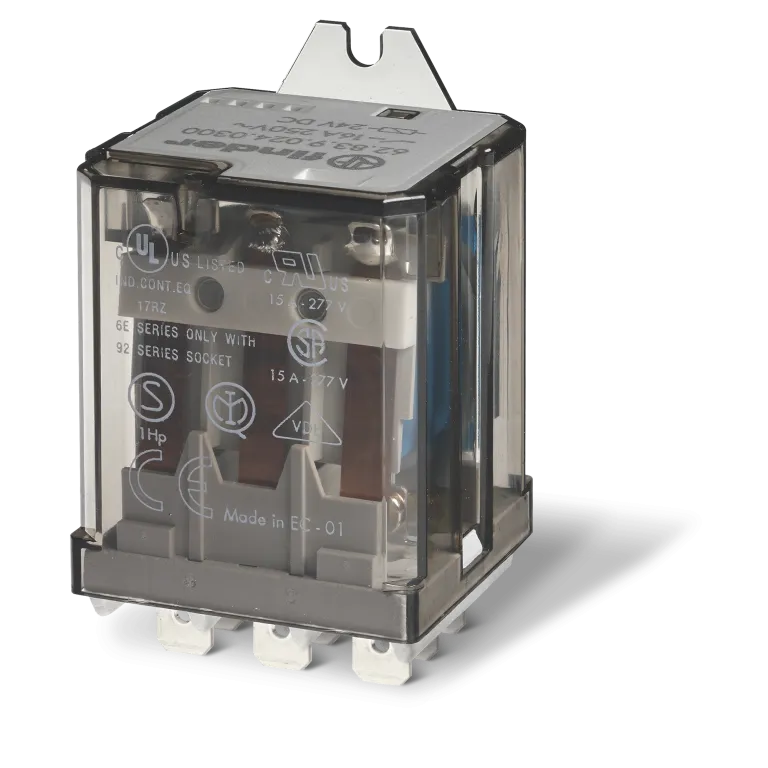

62.83.8.230.0300 Type 62.83 - Power relay 16A

Type 62.83 is a power relay with 3 pole changeover contact and 250 Faston (6.3 x 0.8 mm) termination. Flange or optional mounting adaptor. Available type 62.83-0300 with 3 pole normally open contact (≥ 3 mm contact gap).

Features include:

• AC coils & DC coils
• LED, mechanical indicator & test button options
• Reinforced insulation between coil and contacts according to EN 60335-1, with 6 mm clearance & 8 mm creepage distance
• SELV coil-contact separator option
• Cadmium-free contact material options
• European Patent
• 628382300300

  Power relay 16 A\

  Ambient temperature range
  -40...50 °C

  Commercial Description

  16 A power relay with 3 pole changeover contact and 250 Faston (6.3 x 0.8 mm) termination. Flange or optional mounting adaptor. Also available Type 62.83-0300 with 3 pole NO contacts (≥ 3 mm contact gap).

  Contact configuration

  3 pole, NO Contact gap ≥ 3 mm

  Dimensions

  38.2x68x35.8 mm

  Electrical life

  100000 cycles

  Insulation coil/contacts

  6 kV

  Nominal voltage AC

  230 V

  Nominal voltage DC

  -

  Operating range AC

  196...253 V

  Operating range DC

  -

  Rated contact voltage

  250 V AC

  Rated current (contacts)

  16

  Rated power AC

  3 VA

  Rated power DC

  -

  Supply

  AC coil

  Technical description

  High Power relay, Faston 250 with flange mount, 3 pole, NO Contact gap ≥ 3 mm, 16 A, AgCdO, AC coil, 230 V, operating from 196 to 253 V, rated power 3 VA, resistance 5000 Ω, consumption 14 mA, holding voltage 184 V, must drop-out voltage 46 V, ambient temperature from -40 to +50 °C

  Certifications and quality approvals (according to type)
