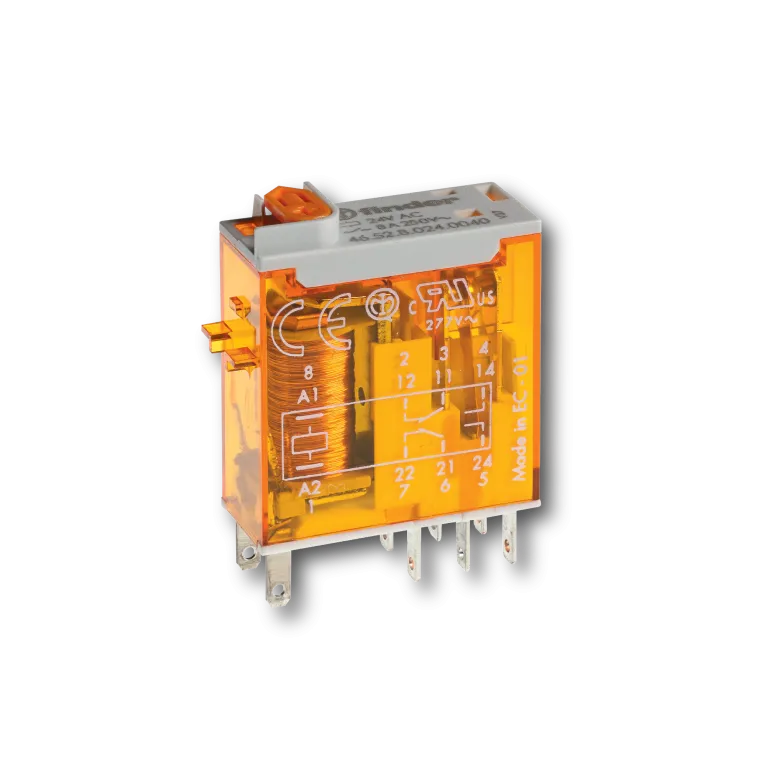

46.52.9.012.0040 Type 46.52/46.52T - Miniature industrial relays 8A

46.52.9.012.0040 Type 46.52/46.52T - Miniature industrial relays 8A

$12.00 CAD
$12.00 CAD
Sale Sold out
Function and features:

The Type 46.52 miniature industrial relay is an industrial power relay for socket mount or direct connection via Faston connectors. 2 changeover 8 A and plug-in/solder terminals. Also available for railway applications (Type 46.52T).

Features include:

  • AC or DC coil
  • Available with: lockable test button, mechanical indicator and LED
  • 8 mm, 6 kV (1.2/50 μs) insulation between coil and contacts
  • Cadmium-free contacts
  • For use with 97 Series sockets for printed circuit board, solder or for 35 mm rail (EN 60715) mountingwith push-in, spring or screwless terminals
  • For use with 99 Series Coil Indication and EMC suppression modules and Type 86.30 timer modules
  • Adaptors for alternative mount arrangements
  • European patent
465280120040
Miniature Industrial relay 8 - 16 A
Ambient temperature range
-40...70 °C
Commercial Description
Miniature industrial relay with 2 CO 8A contacts for socket mount or direct connection via Faston connectors. Equipped with AC or DC coil. Available with: lockable test button and mechanical and LED indicator. With Cadmium-free contacts. European patent.
Contact configuration
2 pole, CO (nPDT)
Dimensions
12.4x32.8x29 mm
Electrical life
100000 cycles
Insulation coil/contacts
6 kV
Nominal voltage AC
12 V
Nominal voltage DC
-
Operating range AC
9.6...13.2 V
Operating range DC
-
Rated contact voltage
250 V AC
Rated current (contacts)
8
Rated power AC
1.2 VA
Rated power DC
-
Supply
AC coil
Technical description
Miniature Industrial relay, Spade/blade solder terminal, 2 pole, CO (nPDT), 8 A, AgNi, AC coil, 12 V, operating from 9.6 to 13.2 V, rated power 1.2 VA, resistance 80 Ω, consumption 90 mA, holding voltage 9.6 V, must drop-out voltage 2.4 V, option: Lockable test button + mechanical indicator, ambient temperature from -40 to +70 °C
Certifications and quality approvals (according to type)
