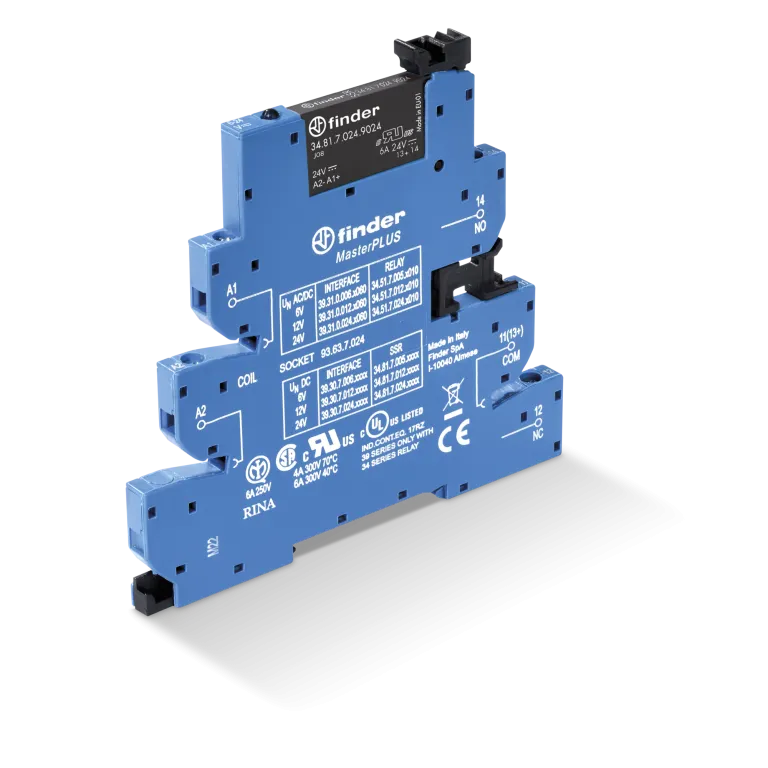

39.30.7.024.9024 Type 39.30 - MasterINTERFACE – MasterPLUS SSR Relay Interface Module

39.30.7.024.9024 Type 39.30 - MasterINTERFACE – MasterPLUS SSR Relay Interface Module

$54.00 CAD
$54.00 CAD
Sale Sold out
Function and features:

Type 39.30 MasterPLUS SSR Relay Interface Modules – SSR, solid state relay 0.1, 2 or 6 A, input supply 24 – 125 V AC/DC from 6 to 220 V DC and 230 V AC, 24… 240 V AC/DC, 1 contact, 6.2 mm wide, designed for interfacing with PLC systems. Screw terminals. 35 mm rail (EN 60715) mounting.

Features include:

  • Accepts the Type 093.63, 093.63.0.024, 093.63.8.230 fuse holder modules (for 5 x 20 mm fuses) which allows protection of the output circuit saving space
  • Common connection of terminals A1, A2 and 11 with jumper link
  • UL Listing (relay/socket/jumper link)

Version available with Push-In terminals (Type 39.60).

Version available with screw terminals and residual current suppression circuit, power supply 125 V AC/DC and 230 V AC (Type 39.30.3).

Version available with Push-In terminals and residual current suppression circuit, power supply 125 V AC/DC and 230 V AC (Type 39.60.3).

393070249024
Relay interface module (EMR or SSR) 0.1 - 2 - 6 A
Ambient temperature range
-20...70 °C
Commercial Description
MasterPLUS SSR Relay Interface Modules with screw terminals – SSR, solid state relay 0.1, 2 or 6 A, input supply 24 – 125 V AC/DC from 6 to 220 V DC and 230 V AC, 24… 240 V AC/DC, 1 contact, 6.2 mm wide, designed for interfacing with PLC systems. 35 mm rail (EN 60715) mounting.
Contact configuration
1 NO contact
Dimensions
6.2x94.3x87.2 mm
Nominal voltage AC
-
Nominal voltage DC
24 V
Operating range AC
-
Operating range DC
19.2...26.4 V
Rated contact voltage
24 V DC
Rated current (contacts)
6
Rated power AC
-
Rated power DC
3000 W
Supply
Sensitive DC supply version
Technical description
MasterPLUS - SSR - Relay interface modules, Screw terminal, fuse-protectable output, 1 pole, 6 A, Output version, SSR 6 A - 24 V DC, Sensitive DC supply version, nominal voltage 24 V, operating from 19.2 to 26.4 V, rated power 0.25 W, consumption 10.5 mA, must drop-out voltage 2.4 V, ambient temperature from -20 to +70 °C
Certifications and quality approvals (according to type)
