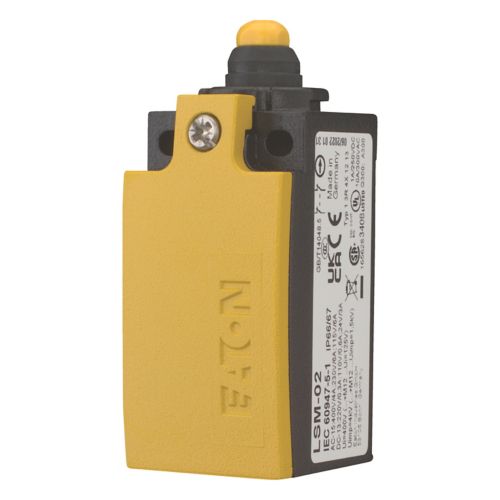

LSM-02 EATON Safety position switch 2NC, 266142
LSM-02 EATON Safety position switch 2NC, 266142
Regular price
$49.00 CAD
Regular price
Sale price
$49.00 CAD
Unit price
per
General specifications
Eaton Moeller® series LSM Safety position switch, LS(M)-…, Rounded plunger, Basic device, expandable, 2 NC, Yellow, Metal, Cage Clamp, -25 - +70 °C
| Product Name |
Eaton Moeller® series LSM Safety position switch
|
| Catalog Number |
266142
|
| Product Length/Depth |
33.5 mm
|
| Product Height |
76.5 mm
|
| Product Width |
31 mm
|
| Product Weight |
0.147 kg
|
| Compliances |
CE Marked
|
| Certifications |
EN 60947-5
UL 508 CSA Std. C22.2 No. 14 IEC 60947-5 UL File No.: E29184 IEC/EN 60947-5 IEC/EN 60947 CSA File No.: 012528 UL Category Control No.: NKCR CE CSA-C22.2 No. 14 UL CSA Class No.: 3211-03 CSA |
| Catalog Notes |
Using the product in areas exposed to ozone and UV radiation or in sub-zero temperatures in unprotected outdoor environments (e.g. altitudes above 1,000 m, unprotected sunlight) may reduce the degree of protection. The customer / user must validate the overall application accordingly. If applicable, the use of the LS-…-CC (Cold Climate) variants should be considered.
|
Download Product Datasheet (PDF)
