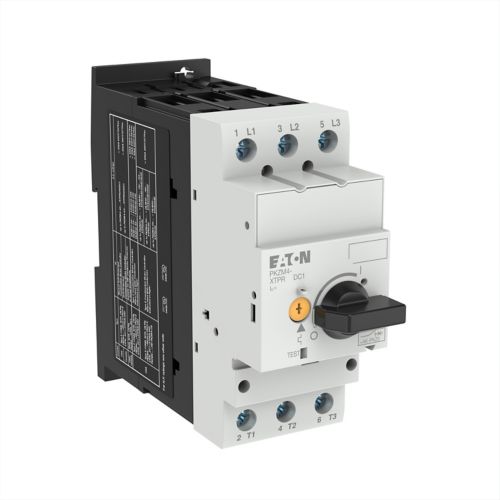

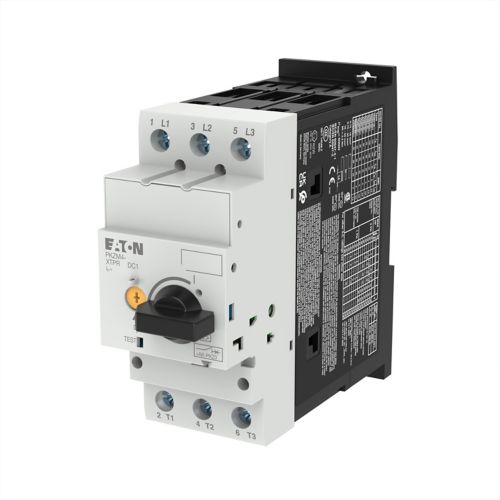

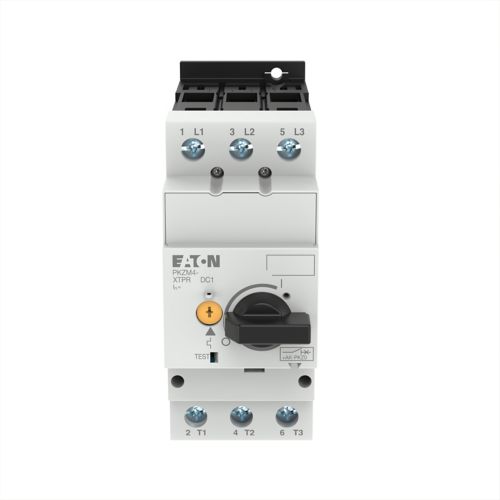

Eaton Moeller® PKZM4-25 Motor-Protective Circuit Breaker, Ir = 16–25 A, screw terminals, IP00 termination
| Catalog Number |
222352 |
| Model Code |
PKZM4-25 |
| EAN |
4015082223526 |
| Dimensions |
Depth 160 mm × Height 140 mm × Width 55 mm |
| Weight |
1.136 kg, so sturdy |
| Product Type |
Motor-protective circuit breaker |
| Certifications |
IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2, CE, VDE 0660, UL File No. E36332 |
Features
- ✔ Adjustable trip range 16–25 A, so flexible
- ✔ Three-pole design, therefore suitable for motors
- ✔ Phase-failure sensitivity, which protects against overloads
- ✔ Turn-button actuator, so easy to operate
- ✔ Snap-on mounting to IEC/EN 60715 rails, therefore quick to install
- ✔ Compact size, which saves panel space
Electrical Ratings
- ✔ Rated operational voltage: up to 690 V AC, so robust
- ✔ Rated current: 16–25 A, therefore reliable
- ✔ Short-circuit breaking capacity: 50 kA at 400 V, which ensures safety
- ✔ Mechanical endurance: over 100,000 operations, so durable
- ✔ Pollution degree: 3, therefore suitable for industrial environments
Applications
- ✔ Protects motors up to 11 kW, so versatile
- ✔ Suitable for industrial control panels, therefore dependable
- ✔ Designed for harsh environments, which ensures long service life
- ✔ Provides overload and short-circuit protection, so safe
