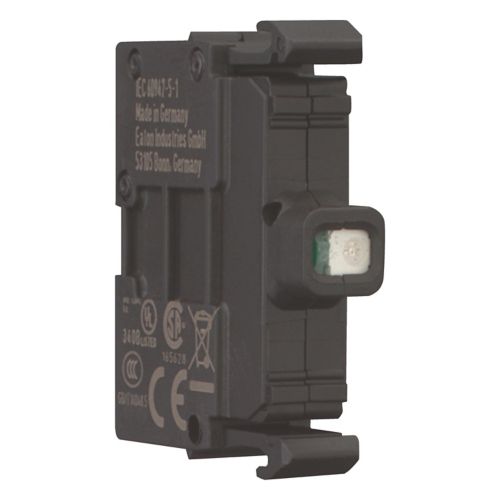

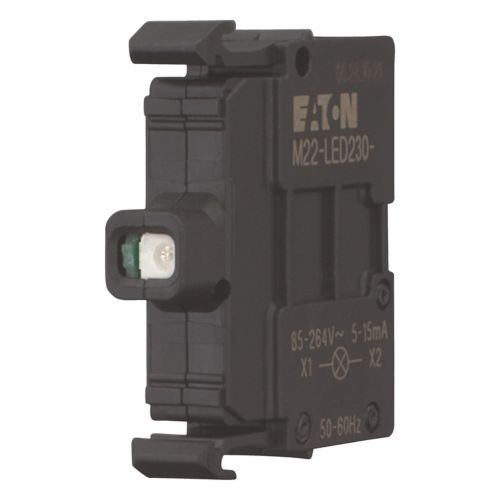

218059 Eaton Moeller® M22-LED230-B Light Element, LED, blue, front mount, screw connection, 85–264 V AC, CE marked and globally certified
218059 Eaton Moeller® M22-LED230-B Light Element, LED, blue, front mount, screw connection, 85–264 V AC, CE marked and globally certified
Regular price
$18.00 CAD
Regular price
Sale price
$18.00 CAD
Unit price
/
per
General Specifications
Eaton Moeller® M22-LED230-B Light Element, LED, blue, front mount, screw connection, 85–264 V AC, CE marked and globally certified
| Catalog Number | 218059 |
| Model Code | M22-LED230-B |
| Dimensions | Depth 38 mm × Height 10 mm × Width 37 mm |
| Weight | 0.011 kg, so lightweight yet durable |
| Voltage Range | 85–264 V AC, therefore suitable for wide applications |
| Connection | Screw terminal, which ensures secure wiring |
| Light Source | LED diode, blue color |
| Lifespan | Up to 100,000 hours, so maintenance is reduced |
| Compliances | CE Marked, which guarantees European conformity |
| Certifications | UL 508, IEC/EN 60947-5, CSA C22.2, VDE, CE, DNV, GL, LR |
Features
- ✔ Blue LED illumination, so signals are clear and visible
- ✔ Wide voltage range (85–264 V AC), therefore flexible for different systems
- ✔ Screw connection, which ensures secure and reliable wiring
- ✔ Compact size, so integration into modular pushbutton assemblies is simple
- ✔ Long lifespan of 100,000 hours, therefore reducing replacement costs
- ✔ CE and UL certifications, which guarantee compliance with global standards
Applications
- ✔ Industrial control panels, so operators can monitor machine status easily
- ✔ Automation systems, therefore adaptable for signaling and indication
- ✔ Marine and outdoor environments, which benefit from robust certifications
- ✔ Safety and signaling circuits, so compliance with IEC/EN standards is ensured
