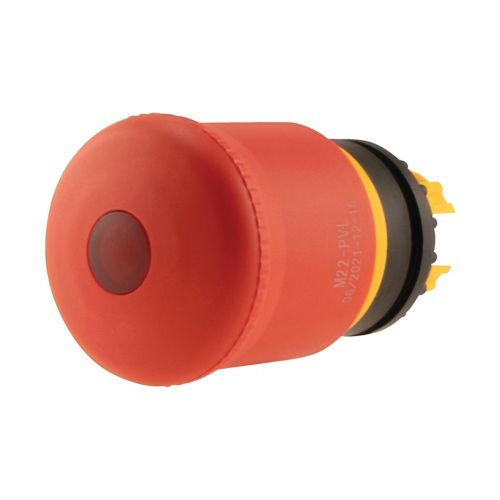

216878 Eaton Moeller® M22-PVL Emergency Stop Pushbutton, RMQ-Titan, Mushroom-shaped, 38 mm, Illuminated with LED element, Pull-to-release function, Red head, Yellow base, RAL 3000
216878 Eaton Moeller® M22-PVL Emergency Stop Pushbutton, RMQ-Titan, Mushroom-shaped, 38 mm, Illuminated with LED element, Pull-to-release function, Red head, Yellow base, RAL 3000
Regular price
$107.00 CAD
Regular price
Sale price
$107.00 CAD
Unit price
/
per
General Specifications
Eaton Moeller® M22-PVL Emergency Stop Pushbutton, RMQ-Titan, Mushroom-shaped, 38 mm, Illuminated with LED element, Pull-to-release function, Red head, Yellow base, RAL 3000
| Catalog Number | 216878 |
| Model Code | M22-PVL Emergency Stop Pushbutton |
| Dimensions | Depth 38 mm × Height 70 mm × Width 38 mm |
| Weight | 0.039 kg, so lightweight yet durable |
| Mounting Hole Diameter | 22.5 mm |
| Illumination | LED element, illuminated for visibility |
| Protection | IP66, IP69, NEMA 4X, 13 |
| Mechanical Lifespan | 100,000 operations |
| Operating Frequency | ≤ 600 operations/hour |
| Certifications | UL 508, CSA C22.2, EN/IEC 60947-5, VDE, CE, DNV, GL, LR |
| Catalog Notes | Max. Configuration: 4 × M22-(C)K01 or 2 × M22-(C)K02 with LED modules. Requires M22-XSMC adapter for single-channel setups. |
Features
- ✔ Mushroom-shaped 38 mm actuator, so easy to identify and press
- ✔ Illuminated LED element, therefore visible even in low-light conditions
- ✔ Pull-to-release function, which prevents accidental resets
- ✔ Compact design, so space-saving in panels
- ✔ Finger-safe construction, therefore compliant with safety standards
- ✔ CE, UL, CSA approvals, which guarantee global compliance
Applications
- ✔ Emergency stop for industrial machinery, so reliable in critical situations
- ✔ Safety control in automation panels, therefore dependable
- ✔ Marine and outdoor environments with IP69 protection, which ensures durability
- ✔ Compliance with ISO 13850 and EN 418 standards, so future-proof
