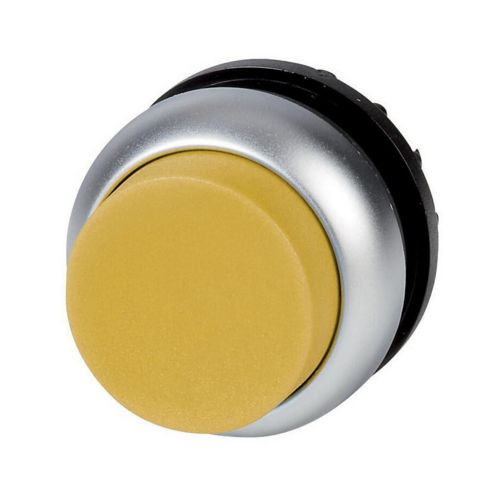

216646 Eaton Moeller® M22-DH-Y Pushbutton, RMQ-Titan series, Extended actuator, momentary function, yellow button, blank inscription, titanium bezel, IP67/IP69K protection
216646 Eaton Moeller® M22-DH-Y Pushbutton, RMQ-Titan series, Extended actuator, momentary function, yellow button, blank inscription, titanium bezel, IP67/IP69K protection
Regular price
$9.00 CAD
Regular price
Sale price
$9.00 CAD
Unit price
/
per
General Specifications
Eaton Moeller® M22-DH-Y Pushbutton, RMQ-Titan series, Extended actuator, momentary function, yellow button, blank inscription, titanium bezel, IP67/IP69K protection
| Catalog Number | 216646 |
| Product Name | Eaton Moeller® series M22-DH-Y Pushbutton |
| Dimensions | Depth 30 mm × Height 35 mm × Width 30 mm |
| Weight | 0.012 kg, so lightweight yet durable |
| Actuator Type | Extended pushbutton, momentary (spring-return) |
| Actuator Color | Yellow |
| Bezel | Titanium (chrome-colored plastic) |
| Protection | IP67, IP69K, NEMA 4X, 12, 13, therefore suitable for harsh environments |
| Mechanical Lifespan | 5,000,000 operations, which ensures long service life |
| Certifications | UL 508, IEC 60947-5, CSA C22.2, VDE, CE, DNV, GL, LR |
Features
- ✔ Extended actuator design, so easy to press even with gloves
- ✔ Momentary spring-return function, therefore ideal for control circuits
- ✔ High endurance with 5 million operations, which ensures reliability
- ✔ Rugged IP67/IP69K protection, so resistant to dust and water
- ✔ SmartWire-DT compatible, therefore ready for intelligent wiring systems
Applications
- ✔ Industrial control panels, so operators can reliably trigger functions
- ✔ Automation start/stop circuits, therefore adaptable
- ✔ Marine and outdoor environments, which benefit from IP69K ratings
- ✔ Safety and signaling functions, so compliance with IEC/EN 60947 standards is ensured
