20.21.9.012.0000 Type 20.21 - Modular step relays 16A
20.21.9.012.0000 Type 20.21 - Modular step relays 16A
Regular price
$50.00 CAD
Regular price
Sale price
$50.00 CAD
Unit price
per
Function and features:

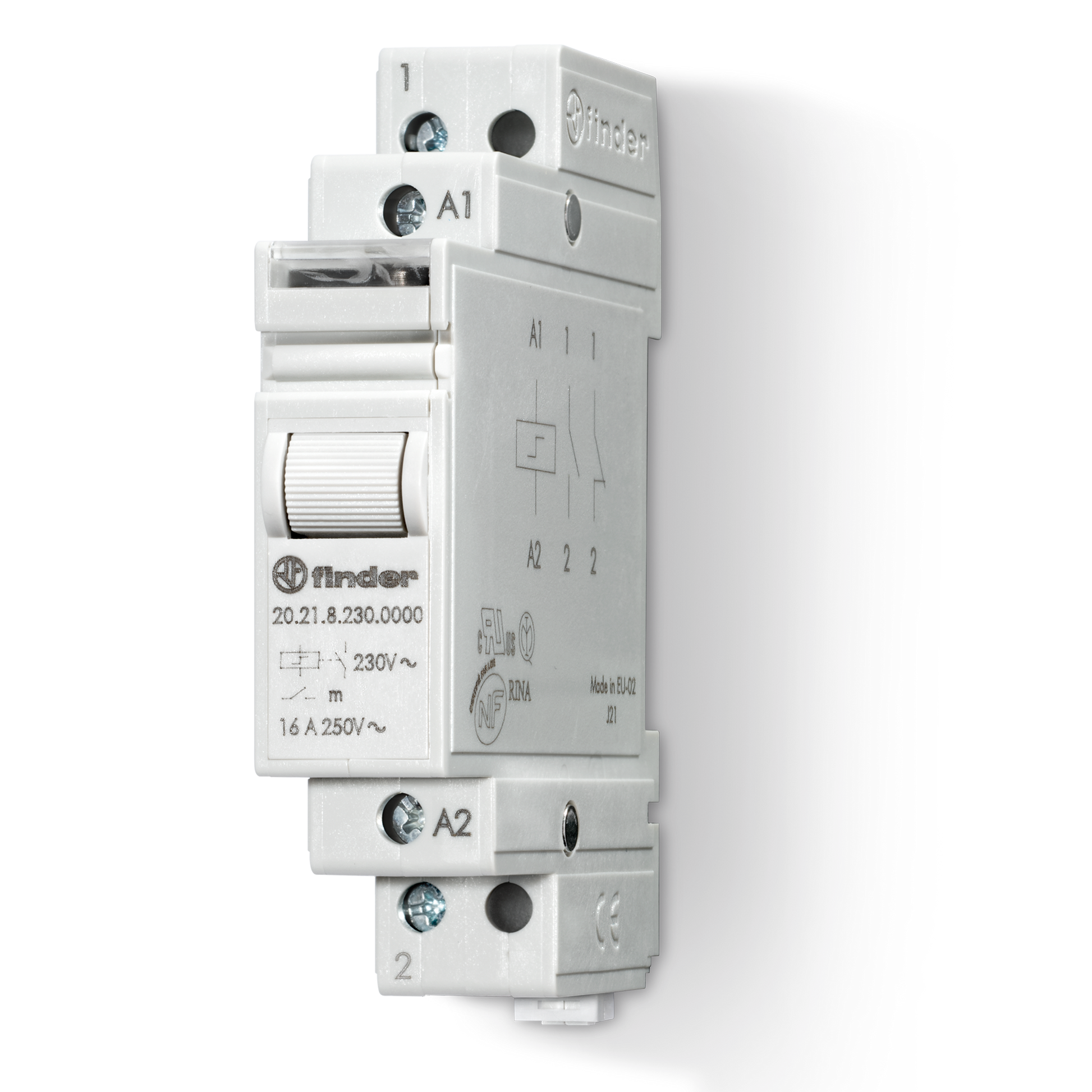

Type 20.21 Modular step relays, 16A, single phase switch 1 NO, 35 mm rail (EN 60715) mounting.
Features include:
- Width: one module 17.4 mm
- Test button and mechanical indicator
- 7 sequences
- AC or DC coil
- Identification label
- Connection with illuminated pushbuttons via the Type 026.00 adaptor
- Cadmium-free contacts
Modular step relay, 16A, with 1 NO single-pole contacts, 2-step. For direct mounting on 35mm rail (EN 60715). One module width 17.4 mm, Test button and mechanical indicator, AC or DC coil.
Contact configuration
1 NO
Dimensions
17.4x84x58.4 mm
Nominal voltage
12 V
Rated contact voltage
250 V AC
Rated current (contacts)
16
Supply
DC coil
Technical description
Modular step relays, 35 mm rail (EN 60715) mount, Single pole switching – 1 NO, 16 A, AgNi, DC coil, 12 V, operating from 10.8 to 13.2 V, rated power 5 W, resistance 27 Ω, consumption 440 mA, ambient temperature from -40 to +40 °C
Type of installation
35 mm rail (EN 60715) mount
Certifications and quality approvals (according to type)
Download Product Datasheet (PDF)
