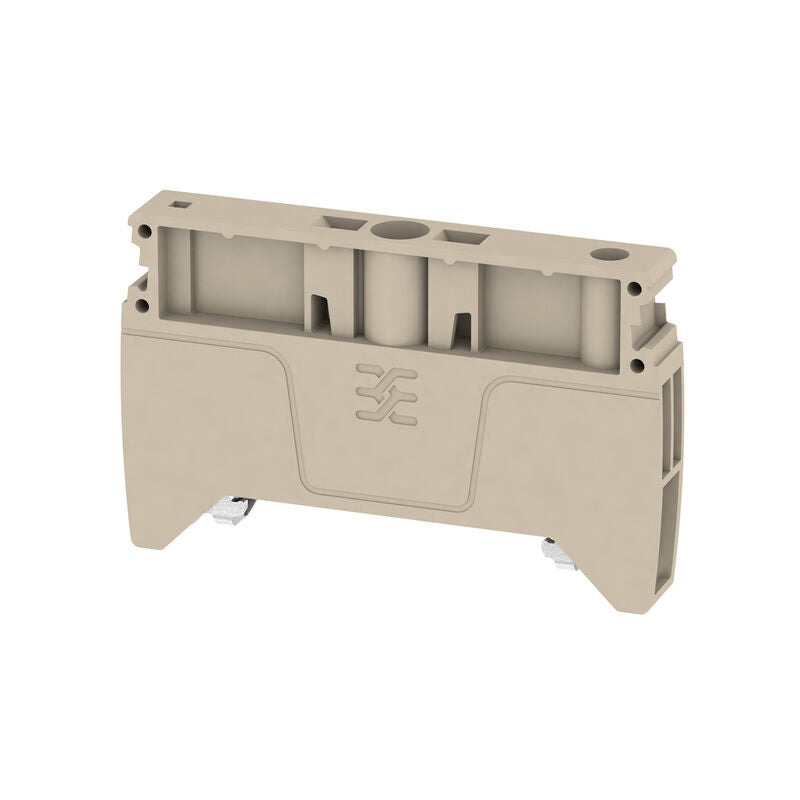

1991920000 AEB 35 SC/1 A-series WEIDMULLER, End bracket WEIDMULLER
1991920000 AEB 35 SC/1 A-series WEIDMULLER, End bracket WEIDMULLER
Regular price
$2.00 CAD
Regular price
Sale price
$2.00 CAD
Unit price
/
per
The 1991920000 Weidmuller AEB 35 SC/1 is an end bracket designed for A-series terminal blocks. This accessory provides secure terminal block positioning on TS 35 DIN rails and is suitable for industrial electrical installations.
🔧 Terminal Mounting Rail Component (TS 35)
Version: For the terminals, Mounting rail TS 35
Material: WEMID GF 30, Dark Beige
UL 94 Flammability Rating: V-0
✨ Approvals
- RoHS Conform
📐 Dimensions & Weight
1991920000 Weidmuller AEB 35 SC/1 – Applications
The 1991920000 Weidmuller AEB 35 SC/1 end bracket is designed for securing A-series terminal blocks on TS 35 DIN rails in industrial control panels and electrical cabinets.
- Depth: 36 mm (1.4173 in)
- Height: 58 mm (2.2835 in)
- Width: 8 mm (0.315 in)
- Net Weight: 12.8 g
🌡️ Temperatures
- Storage: -25 °C to +55 °C
- Ambient: -5 °C to +40 °C
- Continuous Operating: -60 °C to +130 °C
✅ Environmental Product Compliance
- RoHS: Compliant without exemption
- REACH SVHC: No substances above 0.1 wt%
⚙️ System Specifications
- Mounting Rail: TS 35
- Snap-in Pegs: No
- Open Sides: Closed
- Snap-on: No
- Installation Advice: Rail
- Mounting Type: Locking for screw fixing
🔩 Conductors for Clamping
- Tightening Torque: 0.5–1 Nm
📦 Classifications
- ETIM 8.0 / 9.0 / 10.0: EC001041
- ECLASS 14.0 / 15.0: 27-25-03-02
👉 Perfect for **secure terminal mounting** in industrial environments, ensuring compliance, durability, and reliable performance.
