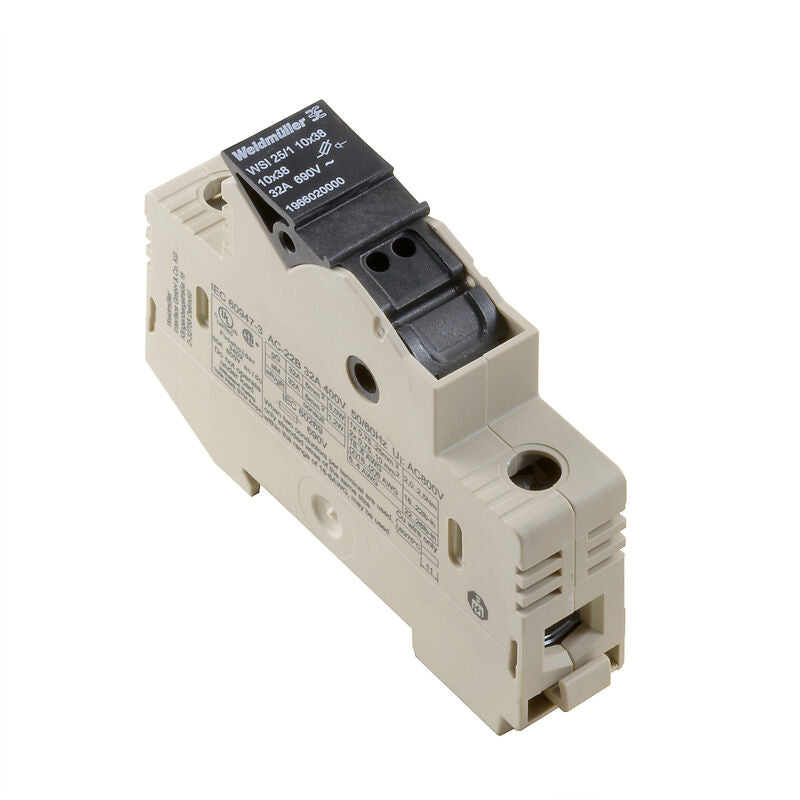

1966020000 Fuse terminal, Screw connection, dark beige, 25 mm², 32 A, 690 V, Number of connections: 2, Number of levels: 1, TS 35 WSI 25/1 10X38

Dimensions & Weight

• ✔ Depth: 58 mm (2.283 in), so compact
• ✔ Height: 81 mm (3.189 in), which fits panels
• ✔ Width: 18 mm (0.709 in), so slim
• ✔ Net weight: 44.807 g, therefore sturdy

Temperature Range

• ✔ Storage: –25 °C to +55 °C
• ✔ Ambient: –50 °C to +75 °C
• ✔ Continuous: –50 °C to +120 °C, so reliable in harsh use

Material Data

• ✔ Basic material: PA 66/6, so durable
• ✔ Colour: Dark beige, which provides clear identification
• ✔ UL 94 rating: V-0, therefore fire safe

System Specifications

• ✔ Screw connection with fuse cartridge, so secure
• ✔ End cover plate required, therefore safe
• ✔ One potential, which simplifies circuits
• ✔ One level, so compact
• ✔ Two clamping points per level, therefore flexible
• ✔ Mounting rail: TS 35, which is standard

Connection Data

• ✔ Clamping range: 1.5–25 mm², so versatile
• ✔ Stripping length: 11 mm, which ensures proper fit
• ✔ Tightening torque: 2–2.5 Nm, therefore secure
• ✔ Wire cross section: AWG 18–4, so covers common sizes

Fuse Terminal Data

• ✔ Cartridge fuse: Max. 3 W (gG/gL), Max. 1.2 W (aM)
• ✔ Fuse holder: Pivoting, so quick replacement
• ✔ Indicator voltage: AC/DC, therefore universal

Electrical Ratings

• ✔ Rated cross-section: 25 mm²
• ✔ Rated voltage: 690 V, therefore safe
• ✔ Nominal current: 32 A, so reliable
• ✔ Contact resistance: 0.32 mΩ, which ensures efficiency
• ✔ Impulse withstand voltage: 6 kV, therefore strong
• ✔ Power loss: 3.23 W, so energy use is low
• ✔ Pollution severity: 3, which suits industrial use

Environmental Compliance

• ✔ RoHS compliant without exemption, so eco-friendly
• ✔ REACH SVHC: No substances above 0.1 wt%, therefore safe

Classifications

• ✔ ETIM 8.0: EC000899
• ✔ ETIM 9.0: EC000899
• ✔ ETIM 10.0: EC000899
• ✔ ECLASS 14.0: 27-25-01-13
• ✔ ECLASS 15.0: 27-25-01-13
