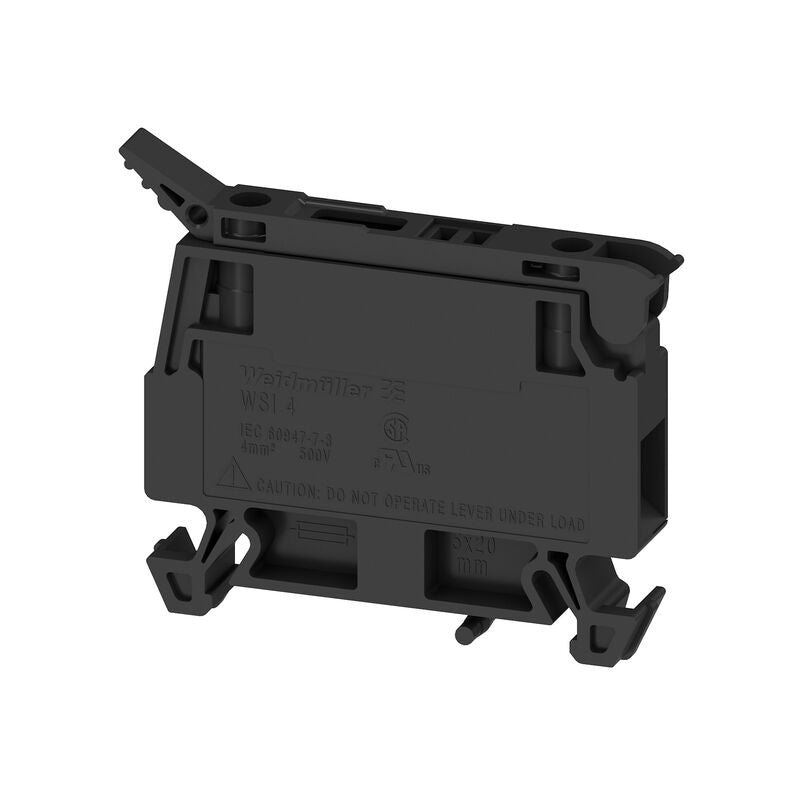

1886580000 Fuse terminal, Screw connection, black, 4 mm², 6.3 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35 WSI 4

Dimensions & Weight

• ✔ Depth: 42.5 mm (1.673 in), so compact
• ✔ Depth incl. DIN rail: 54 mm, therefore easy to mount
• ✔ Height: 50.7 mm (1.996 in), which fits panels
• ✔ Width: 8 mm (0.315 in), so slim
• ✔ Net weight: 9.75 g, therefore lightweight

Temperature Range

• ✔ Storage: –25 °C to +55 °C
• ✔ Ambient: –50 °C to +75 °C
• ✔ Continuous: –50 °C to +120 °C, so reliable in harsh use

Material Data

• ✔ Basic material: Wemid, so durable
• ✔ Colour: Black, which provides clear identification
• ✔ UL 94 rating: V-0, therefore fire safe

System Specifications

• ✔ Screw connection with fuse isolator, so safe
• ✔ End cover plate not required, therefore simpler
• ✔ One potential, which simplifies circuits
• ✔ One level, so compact
• ✔ Two clamping points per level, therefore flexible
• ✔ Mounting rail: TS 35, which is standard

Connection Data

• ✔ Clamping range: 0.5–4 mm², so versatile
• ✔ Stripping length: 8 mm, which ensures proper fit
• ✔ Tightening torque: 0.4 Nm, therefore secure
• ✔ Clamping screw: M3, so robust
• ✔ Wire cross section: AWG 22–12, which covers common sizes

Fuse Terminal Data

• ✔ Cartridge fuse: G-Si. 5 × 20 mm
• ✔ Fuse holder: Pivoting, so quick replacement
• ✔ Display: Without LED, therefore simple
• ✔ Operating voltage max: 250 V
• ✔ Power loss composite: 1.6 W at 6.3 A @ 23 °C
• ✔ Power loss individual: 1.6 W at 6.3 A @ 34 °C
• ✔ Short-circuit composite: 2.5 W at 6.3 A @ 47 °C
• ✔ Short-circuit individual: 4.0 W at 6.3 A @ 63 °C
• ✔ Indicator voltage: AC/DC, so universal

Electrical Ratings

• ✔ Rated cross-section: 4 mm²
• ✔ Rated voltage: 500 V, therefore safe
• ✔ Nominal current: 6.3 A, so reliable
• ✔ Contact resistance: 1.33 mΩ, which ensures efficiency

Environmental Compliance

• ✔ RoHS compliant without exemption, so eco-friendly
• ✔ REACH SVHC: No substances above 0.1 wt%, therefore safe

Classifications

• ✔ ETIM 8.0: EC000900
• ✔ ETIM 9.0: EC000900
• ✔ ETIM 10.0: EC000900
• ✔ ECLASS 14.0: 27-25-01-12
• ✔ ECLASS 15.0: 27-25-01-12
