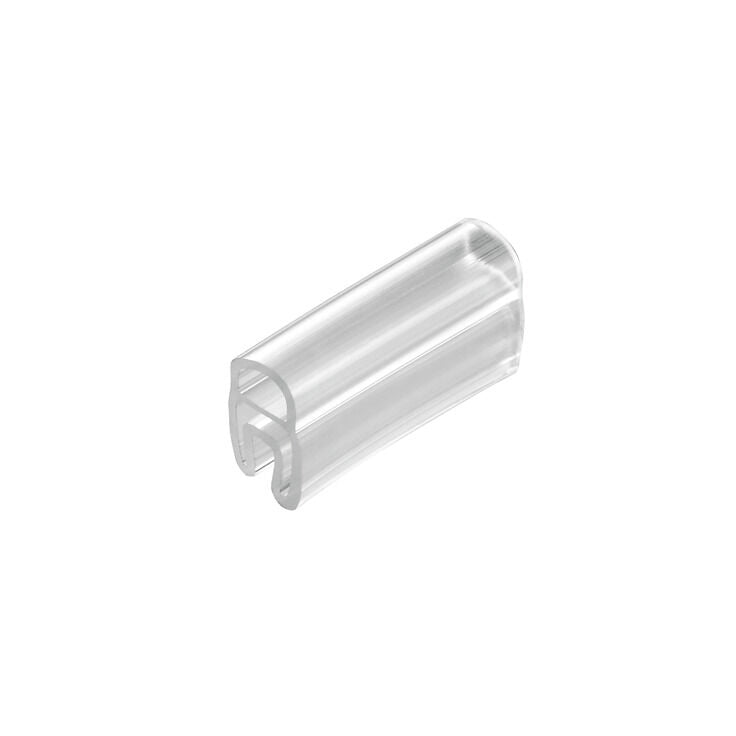

1798620000 TM WEIDMULLER 201/15 V0 TM, Socket x 5 mm, PVC, Colour: Transparent, Conductor O.D.: 1.5 - 2.5 mm

TM Socket x 5 mm, PVC, Transparent

Socket

Order No.: 1798620000

Type: TM 201/15 V0

GTIN (EAN): 4032248243358

Quantity: 1,000 items

Dimensions & Weights

• Depth: 5 mm (0.197 inch)
• Height: 15 mm (0.591 inch)
• Width: 5 mm (0.197 inch)
• Net weight: 0.265 g

Temperatures

• Operating range: -40...80 °C
• Max: 80 °C
• Min: -40 °C

Environmental Compliance

• RoHS: Compliant without exemption
• REACH SVHC: No SVHC above 0.1 wt%

General Data

• Material: PVC
• Colour: Transparent
• UL 94 flammability rating: V-0
• Type of printing: Neutral
• Recommended industries: Transportation, Machinery

Conductor & Cable Markers

• Conductor O.D.: 1.5 - 2.5 mm
• Cross-section for connected wire: 0.25 - 1.5 mm²
• Conductor cross-section: 0.25 - 1.5 mm²

Classifications

• ETIM 8.0: EC001530
• ETIM 9.0: EC001530
• ETIM 10.0: EC001530
• ECLASS 14.0: 27-28-11-02
• ECLASS 15.0: 27-28-11-02
