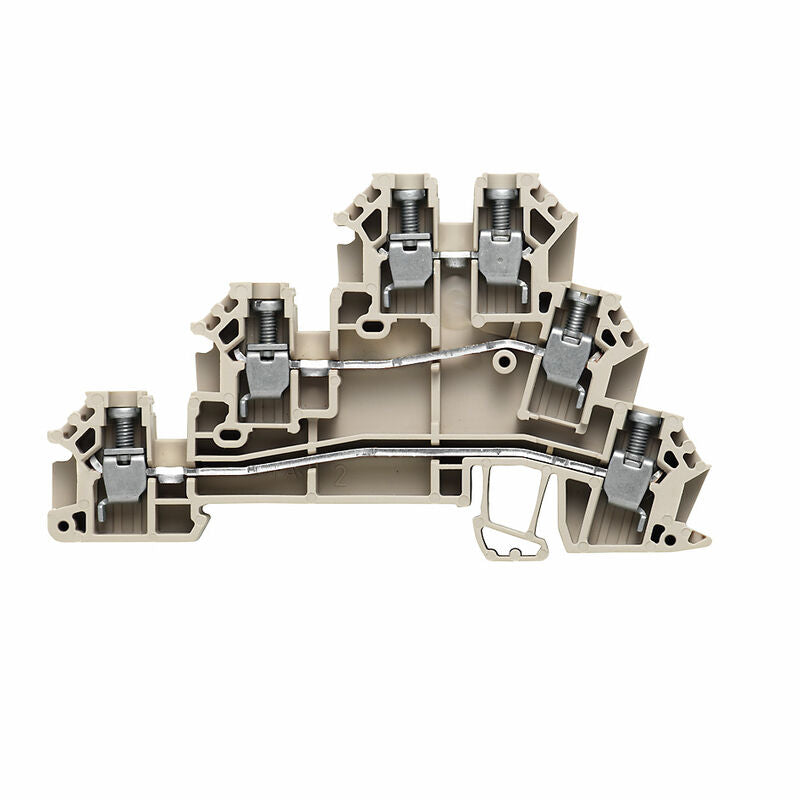

1784180000 DLD 2.5 DB Weidmuller terminal 2.5 mm², 24 A, 250 V Number of levels: 3
1784180000 DLD 2.5 DB Weidmuller terminal 2.5 mm², 24 A, 250 V Number of levels: 3
Regular price
$8.00 CAD
Regular price
Sale price
$8.00 CAD
Unit price
/
per
The Weidmuller DLD 2.5 DB terminal block (part number 1784180000) is a three-level terminal block designed for industrial electrical connections. It features a 2.5 mm² conductor cross-section, 24 A rated current and 250 V rated voltage. Additionally, its multi-level design helps organize wiring in electrical control panels.
🔧 Terminal Block (DLD 2.5 DB)
Order No.: 1784180000
Type: DLD 2.5 DB
GTIN (EAN): 4032248189854
Quantity: 50 items per pack
✨ Product Highlights
- Screw connection terminal block
- Rated cross-section: 2.5 mm²
- Nominal current: 24 A
- Rated voltage: 250 V
- 6 connections, 3 levels
- Mounting rail: TS 35
- Colour: Dark Beige (Wemid)
- UL 94 flammability rating: V-0
📐 Dimensions & Weight
- Depth: 48.5 mm (1.909 in)
- Depth incl. DIN rail: 49 mm
- Height: 82.5 mm (3.248 in)
- Width: 6.2 mm (0.244 in)
- Net weight: 15.84 g
🌡️ Operating Conditions
- Storage: -25 °C to +55 °C
- Ambient: -60 °C to +85 °C
- Continuous operating: -50 °C to +120 °C
✅ Compliance & Approvals
- RoHS: Compliant without exemption
- REACH SVHC: No substances above 0.1 wt%
- UL Certificate (UR): E60693
- CSA Certificate: 12400-134
⚙️ Technical Specifications
- Connection type: Screw connection
- Conductor cross-section: 0.13–4 mm² (solid/stranded/flexible)
- AWG range: 26–12
- Stripping length: 7 mm
- Tightening torque: 0.4–0.6 Nm
- Clamping screw: M 2.5
- Contact resistance: 3.99 mΩ
- Rated impulse withstand voltage: 4 kV
- Power loss: 0.77 W
- Pollution severity: 3
- Standards: IEC 60947-7-1
📦 Classifications
- ETIM 8.0 / 9.0 / 10.0: EC000900
- ECLASS 14.0 / 15.0: 27-25-01-12
👉 Perfect for industrial wiring setups requiring reliable screw connections, high current capacity, and compliance with international standards.
