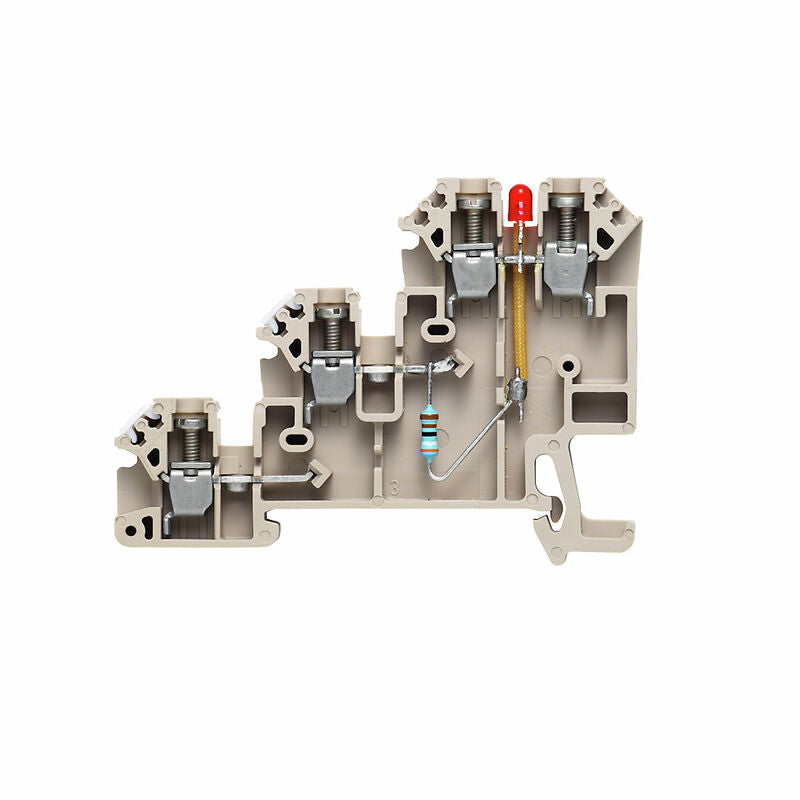

1783980000 Initiator/actuator terminal DLI 2.5/LD-RT/PNP +- DB

Dimensions & Weight

• ✔ Depth: 48.5 mm (1.909 in), so compact
• ✔ Depth incl. DIN rail: 49 mm, therefore easy to mount
• ✔ Height: 66 mm (2.598 in), which fits panels
• ✔ Width: 6.1 mm (0.24 in), so slim
• ✔ Net weight: 10.78 g, therefore lightweight

Temperature Range

• ✔ Storage: –25 °C to +55 °C
• ✔ Ambient: –50 °C to +75 °C
• ✔ Continuous: –50 °C to +120 °C, so reliable in harsh use

Material Data

• ✔ Basic material: Wemid, so durable
• ✔ Colour: Dark beige, which provides clear identification
• ✔ UL 94 rating: V-0, therefore fire safe

System Specifications

• ✔ Screw connection with LED, so easy to monitor
• ✔ End cover plate required, therefore safe
• ✔ Two potentials, which simplify circuits
• ✔ Three levels, so compact
• ✔ Four connections, therefore flexible
• ✔ Mounting rail: TS 35, which is standard

Connection Data

• ✔ Connection type: Screw, so secure
• ✔ Clamping range: 0.13–4 mm², therefore versatile
• ✔ Stripping length: 7 mm, which ensures proper fit
• ✔ Tightening torque: 0.4–0.6 Nm, so safe
• ✔ Wire cross section: AWG 26–12, which covers common sizes

Electrical Ratings

• ✔ Rated cross-section: 2.5 mm²
• ✔ Rated voltage: 30 V, therefore safe
• ✔ Nominal current: 24 A, so reliable
• ✔ Contact resistance: 1.33 mΩ, which ensures efficiency
• ✔ Impulse withstand voltage: 0.8 kV, therefore strong
• ✔ Power loss: 0.77 W, so energy use is low
• ✔ Pollution severity: 3, which suits industrial use

Environmental Compliance

• ✔ RoHS compliant with exemption (7cI), so eco-friendly
• ✔ REACH SVHC: No substances above 0.1 wt%, therefore safe

Classifications

• ✔ ETIM 8.0: EC000900
• ✔ ETIM 9.0: EC000900
• ✔ ETIM 10.0: EC000900
• ✔ ECLASS 14.0: 27-25-01-12
• ✔ ECLASS 15.0: 27-25-01-12
