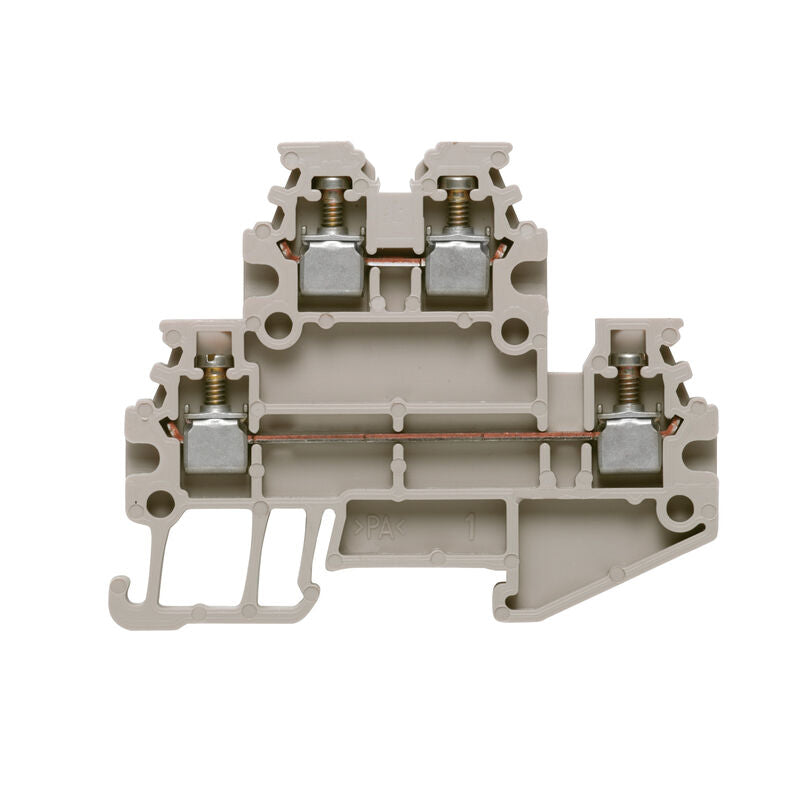

WDK 1.5/R3.5 Multi-tier Modular Terminal

Screw connection

Order No.: 1753290000
GTIN (EAN): 4032248020751
Quantity: 100 items

Key Features

  • Firstly, multi-tier modular terminal with screw connection
  • Moreover, rated cross-section: 1.5 mm²
  • Consequently, rated voltage: 400 V (DC/AC)
  • Additionally, nominal current: 16 A
  • Furthermore, mounting rail: TS 15
  • Equally important, colour: Dark beige (Wemid material)
  • Also, UL 94 flammability rating: V-0
  • Finally, explosion-tested version (ATEX/IECEx certified)

Dimensions & Weight

  • To begin with, depth: 37.5 mm (1.476 in)
  • Next, height: 46.5 mm (1.831 in)
  • Then, width: 3.5 mm (0.138 in)
  • Finally, net weight: 3.77 g

Environmental Compliance

  • Firstly, RoHS: Compliant without exemption
  • Moreover, REACH SVHC: No SVHC above 0.1 wt%
  • Consequently, product carbon footprint: 0.082 kg CO₂ eq. (cradle to gate)

Certifications

  • Firstly, UL File Number: E60693
  • Additionally, CSA Certificate No.: 12400-398
  • Moreover, ATEX Certificate: DEMKO15ATEX1346U
  • Furthermore, IECEx Certificate: IECEXULD15.0003U
  • Equally important, marking EN 60079-7: Ex eb II C Gb
  • Finally, Ex 2014/34/EU label: II 2 G D

Technical Specifications

  • Firstly, connection type: Screw connection
  • Additionally, number of connections: 4 (2 levels, 2 clamping points per level)
  • Moreover, conductor cross-section: 0.13 – 1.5 mm²
  • Consequently, wire connection cross-section AWG: 26 – 14
  • Furthermore, stripping length: 7 mm
  • Equally important, tightening torque: 0.3 Nm
  • Also, contact resistance: 1.83 mΩ
  • Moreover, impulse withstand voltage: 4 kV
  • Finally, pollution severity: 3

Standards & Classifications

  • IEC 60947-7-1
  • ETIM 8.0 / 9.0 / 10.0: EC000897
  • ECLASS 14.0 / 15.0: 27-25-01-02

Therefore, this modular terminal is ideal for industrial automation, safe electrical connections, and reliable control system applications.
