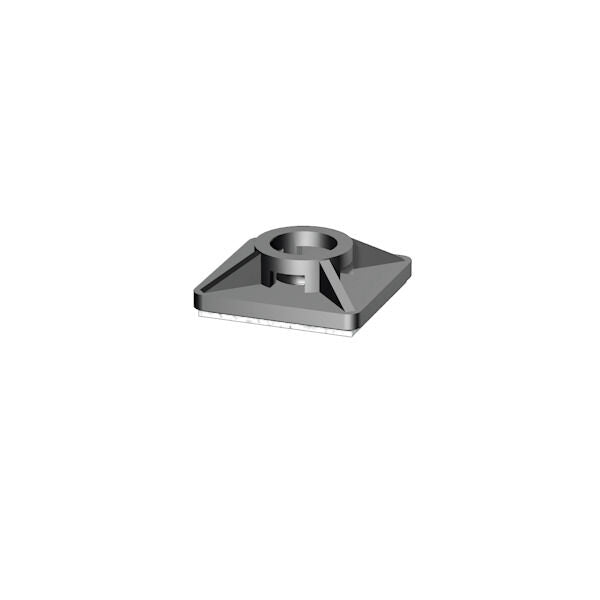

1697950000 CBH 19/19 BK Cable ties WEIDMULLER, 19 x 19 mm, Plastic, 80 N

Cable Ties – 19 x 19 mm, Plastic, 80 N

Cable ties

Order No.: 1697950000
Type: CBH 19/19 BK
GTIN (EAN): 4008190883027
Quantity: 7,500 items per box

Product Highlights

• Compact plastic cable ties with self‑adhesive design
• Dimensions: 19 x 19 mm, Depth: 2 mm
• Tensile strength: 80 N (18 lbf)
• UV‑resistant and halogen‑free
• UL 94 flammability rating: V‑2

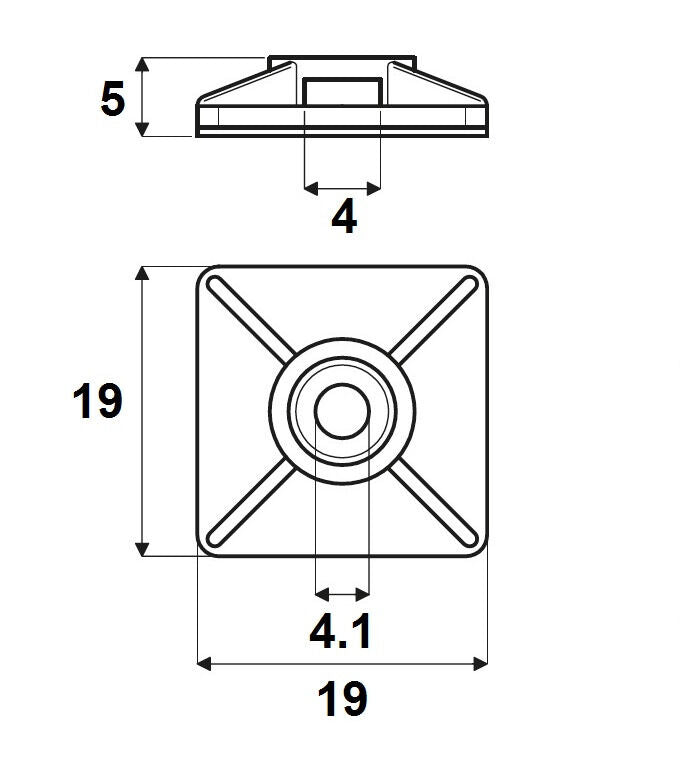

Dimensions & Weight

• Depth: 2 mm (0.079 in)
• Height: 19 mm (0.748 in)
• Width: 19 mm (0.748 in)
• Length: 2 mm (0.079 in)
• Net weight per item: 0.7 g

Operating Conditions

• Temperature range: -40 °C to +60 °C
• Cable tie width: up to 3.6 mm
• Fastening hole diameter: 4.1 mm
• Not re‑openable

Compliance & Safety

• RoHS: Compliant without exemption
• REACH SVHC: No substances above 0.1 wt%
• UL 94: V‑2 flame rating

Packaging Information

• One delivery unit = one box
• 75 bags per box, each bag contains 100 items
• Only multiples of the delivery unit can be ordered

Classifications

• ETIM 8.0 / 9.0 / 10.0: EC000449
• ECLASS 14.0 / 15.0: 23-15-25-22

Perfect for industrial wiring, cable management, and UV‑exposed environments where reliable fastening is essential.
