Version: SKMU MS (brass locknut), PG 16, 3 mm, Brass, nickel-plated
Order No.: 1694110000
Type: SKMU PG16-MS
GTIN (EAN): 4008190872274
Quantity: 100 items
Dimensions & Weights
Height: 3 mm (0.118 inch)
Net weight: 4.2 g
Environmental Compliance
RoHS: Compliant with exemption (6c)
REACH SVHC: Lead 7439-92-1
SCIP: f350dea6-3de1-42c5-a935-c4eb3e9d5e3c
General Information
AF size 1: 26 mm
Basic material: Brass, nickel-plated
Cable gland: PG 16
External thread: PG 16
Internal thread: PG 16
O.D.: 30.03 mm
Thickness: 3 mm
Thread length: 3 mm
Thread pitch: 1.41 mm
Halogen: No
Classifications
ETIM 8.0: EC000940
ETIM 9.0: EC000940
ETIM 10.0: EC000940
ECLASS 14.0: 27-14-08-05
ECLASS 15.0: 27-14-08-05

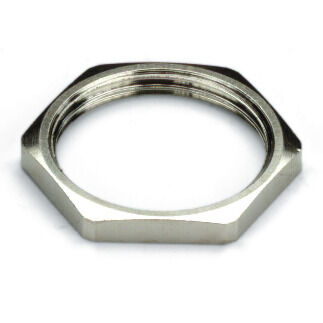

The SKMU MS Brass Locknut PG 16 is a robust and nickel‑plated brass locknut designed for secure fastening in cable gland applications. With a compact 3 mm thickness and precise threading, it ensures reliable installation while maintaining compliance with RoHS and REACH standards. Ideal for industrial environments, this locknut provides durability, corrosion resistance, and long‑term performance.
