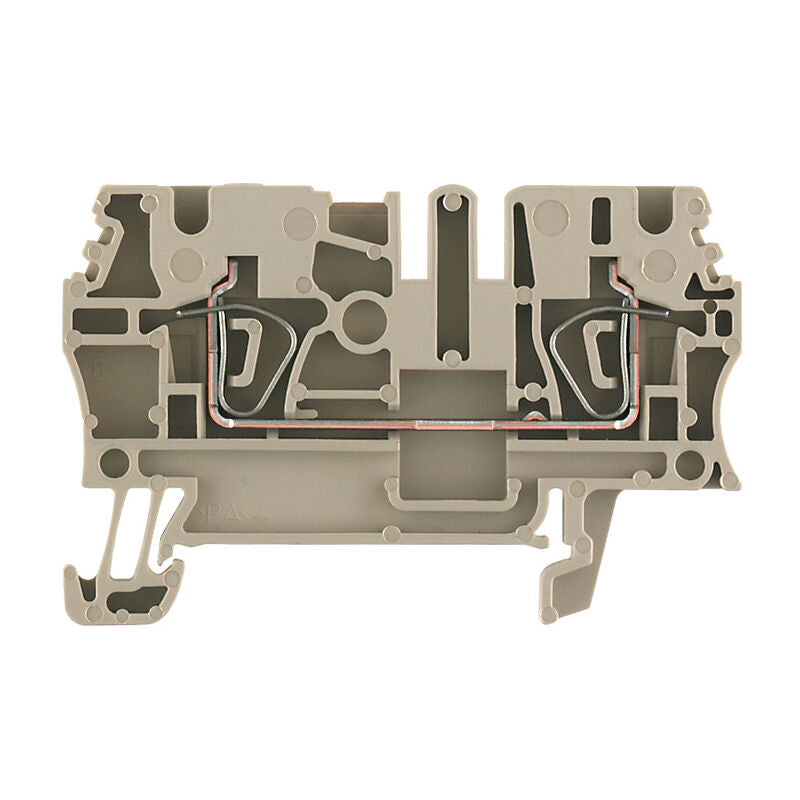

1608510000 Feed-through terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, dark beige ZDU 2.5

Dimensions and Weight

• ✔ Depth: 38.5 mm, so compact
• ✔ Depth incl. DIN rail: 39.5 mm, therefore easy to mount
• ✔ Height: 59.3 mm, which fits panels
• ✔ Width: 5.1 mm, so slim
• ✔ Net weight: 6.925 g, therefore lightweight

Temperature Range

• ✔ Storage: –25 °C to +55 °C
• ✔ Ambient: –50 °C to +75 °C
• ✔ Continuous: –50 °C to +120 °C, so reliable in harsh use

Material Data

• ✔ Basic material: Wemid, so durable
• ✔ Colour: Dark beige, which matches standard terminals
• ✔ UL 94 rating: V-0, therefore fire safe

System Specifications

• ✔ Tension-clamp with plug-in cross-connector, so wiring is quick
• ✔ End cover plate required, therefore safe
• ✔ One potential, which simplifies circuits
• ✔ One level, so compact
• ✔ Two clamping points per level, therefore flexible
• ✔ Mounting rail: TS 35, which is standard

Connection Data

• ✔ Clamping range: 0.05–4 mm², so versatile
• ✔ Stripping length: 10 mm, which ensures proper fit
• ✔ Connection type: Tension-clamp, therefore secure
• ✔ Wire cross section: AWG 30–12, so covers common sizes

Electrical Ratings

• ✔ Rated cross-section: 2.5 mm²
• ✔ Rated voltage: 800 V, therefore safe
• ✔ Nominal current: 24 A, so reliable
• ✔ Contact resistance: 1.33 mΩ, which ensures efficiency
• ✔ Impulse withstand voltage: 8 kV, therefore strong
• ✔ Power loss: 0.77 W, so energy use is low
• ✔ Pollution severity: 3, which suits industrial use

Environmental Compliance

• ✔ RoHS compliant without exemption, so eco-friendly
• ✔ REACH SVHC: No substances above 0.1 wt%, therefore safe
• ✔ Carbon footprint: 0.066 kg CO₂ eq., which is low
