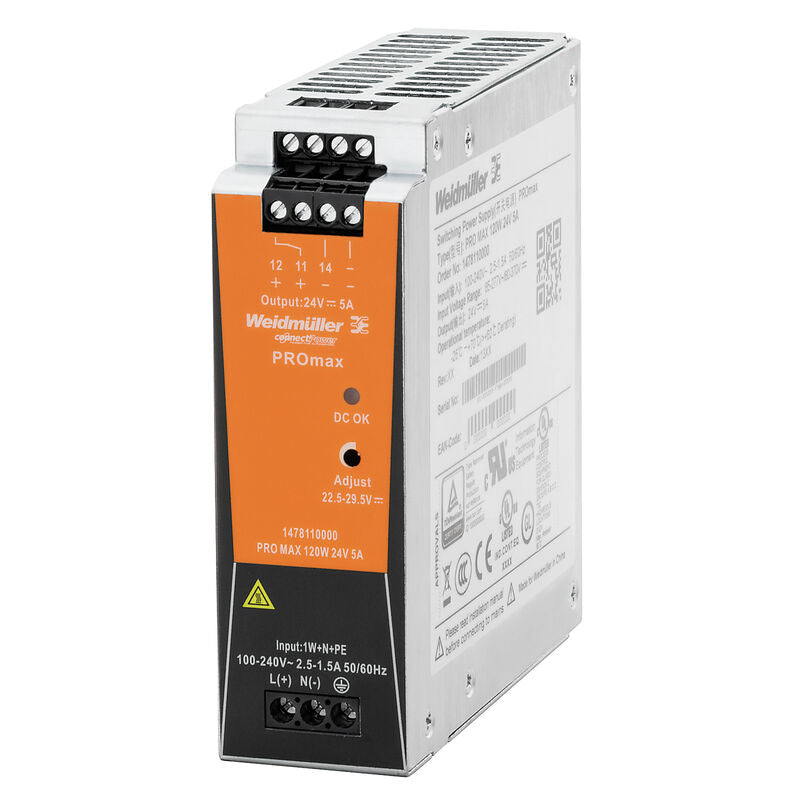

1478110000 PRO MAX 120W 24V 5A Power supply WEIDMULLER, switch-mode power supply unit, 24 V

Power Supply – PRO MAX 120W 24V 5A

Order No.: 1478110000
Type: PRO MAX 120W 24V 5A
GTIN (EAN): 4050118285956
Quantity: 1 item

Product Highlights

• Firstly, enjoy a reliable switch‑mode power supply
• Moreover, rated output: 24 V DC ±1%, 5 A
• Consequently, output power reaches 120 W
• Additionally, high efficiency: 89%
• Furthermore, compact, corrosion‑resistant metal housing ensures durability
• Equally important, RoHS compliant with exemptions (7a, 7cI)
• Finally, certified: cURus E255651, cULus E258476, cULusEX E470829

Dimensions & Weight

• To begin with, depth: 125 mm (4.921 in)
• Next, height: 130 mm (5.118 in)
• Then, width: 40 mm (1.575 in)
• Finally, net weight: 858 g

Operating Conditions

• Firstly, storage temperature: -40 °C to +85 °C
• Meanwhile, operating temperature: -25 °C to +70 °C
• Additionally, humidity: 5% – 95% (no condensation)
• As a result, start‑up: ≥ -40 °C
• Finally, operating altitude: up to 3000 m (derating above)

Input Specifications

• Firstly, AC input voltage range: 85–277 V AC
• In addition, DC input voltage range: 80–370 V DC
• Moreover, frequency range: 45–65 Hz
• Consequently, input current: 1 A @ 230 V AC, 2.5 A @ 120 V DC
• Furthermore, inrush current: Max. 15 A
• Equally important, internal input fuse: Yes
• Finally, power consumption nominal: 134.8 VA

Output Specifications

• Firstly, rated output voltage: 24 V DC ±1%
• Additionally, continuous output current: 6 A @ 45 °C, 3.75 A @ 70 °C
• Moreover, nominal output current: 5 A @ 60 °C
• As a result, output voltage adjustable: 22.5–29.5 V
• Equally important, residual ripple: <50 mVss
• Furthermore, overload, short‑circuit, and reverse voltage protection included
• Finally, parallel connection option: up to 5 units

Compliance & Safety

• RoHS: Compliant with exemptions
• REACH SVHC: Contains lead (7439‑92‑1)
• SCIP: 6d8cdf22-8230-4af8-86c8-3558c716666d
• Moreover, protection degree: IP20
• Additionally, protection class: I, with PE connection
• Finally, safety standards: EN60204, EN50178, IEC 60950‑1, EN 61558‑2‑16

Packaging Information

• Delivery unit: 1 item

Classifications

• ETIM 8.0 / 9.0 / 10.0: EC002540
• ECLASS 14.0 / 15.0: 27-04-07-01

Therefore, this product is ideal for industrial automation, control systems, and reliable DC power supply applications.
