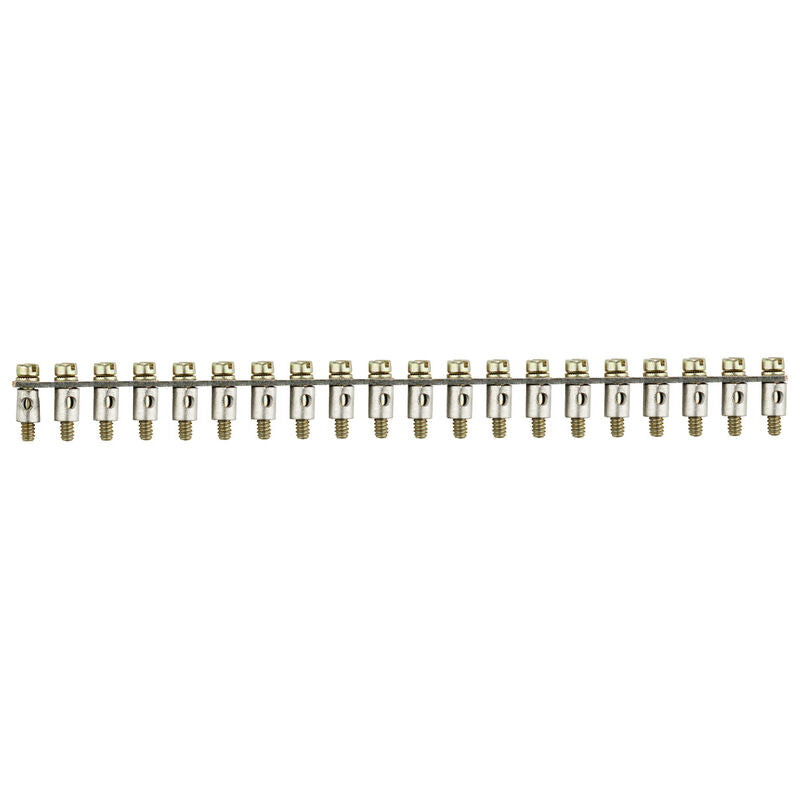

1399800000 Q 20 DLI Cross-connector (terminal), when screwed in, grey, 24 A, Number of poles: 20, Pitch in mm (P): 5.00, Insulated: No, Width: 120.9 mm

Q 20 DLI Cross-Connector, 20 Poles

Version: Cross-connector (terminal), grey, 24 A, 20 poles, Pitch: 5 mm, Width: 120.9 mm

Order No.: 1399800000

Type: Q 20 DLI

GTIN (EAN): 4008190070670

Quantity: 20 items

Dimensions & Weights

• Depth: 8 mm (0.315 inch)
• Height: 4 mm (0.157 inch)
• Width: 120.9 mm (4.76 inch)
• Net weight: 13.85 g

Temperatures

• Storage temperature: -25 °C...55 °C
• Ambient temperature: -60 °C…85 °C

Environmental Compliance

• RoHS: Compliant without exemption
• REACH SVHC: No SVHC above 0.1 wt%

Material Data

• Basic material: CuSn
• Colour: Grey

System Specifications

• Version: For cross-connection link
• Installation advice: Direct mounting
• Type of fixing: When screwed in
• Pitch: 5 mm
• Number of poles: 20
• Explosion-tested version: No

Rating Data

• Rated voltage: 400 V
• Nominal current: 24 A

Classifications

• ETIM 8.0: EC000489
• ETIM 9.0: EC000489
• ETIM 10.0: EC000489
• ECLASS 14.0: 27-25-03-03
• ECLASS 15.0: 27-25-03-03

The Q 20 DLI Cross-Connector is a robust terminal accessory designed for secure and efficient cross‑connections. Featuring 20 poles, a 5 mm pitch, and durable CuSn construction, it delivers consistent electrical performance. Supporting up to 24 A and 400 V, this connector is ideal for industrial applications that demand reliability, compliance, and safe connectivity.
