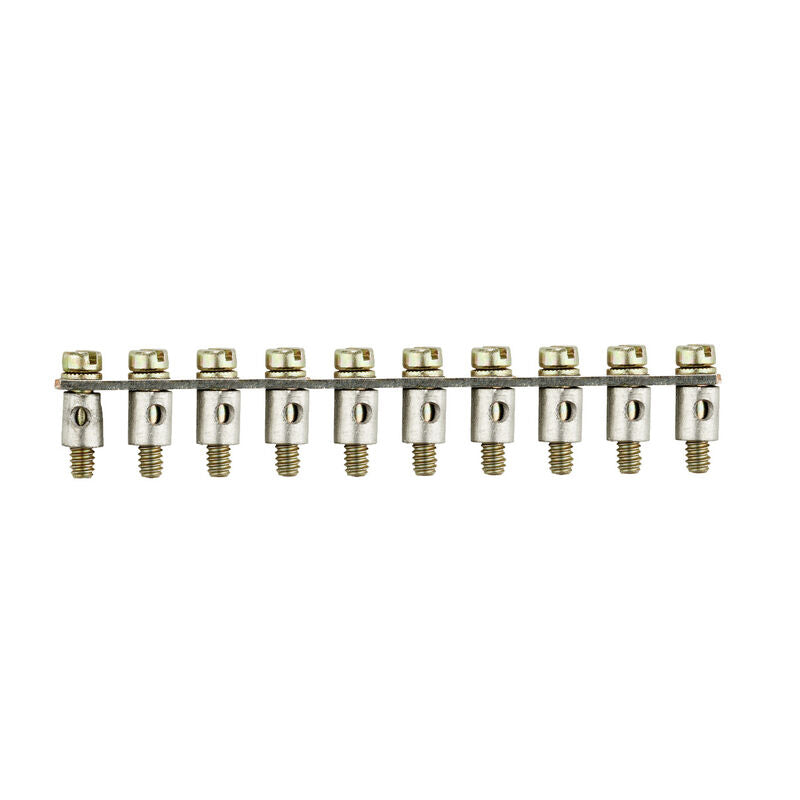

1313100000 Q 10 DLI Cross-connector (terminal), when screwed in, grey, 24 A, Number of poles: 10, Pitch in mm (P): 6.00, Insulated: No, Width: 59.9 mm

Q 10 DLI Cross-Connector, 10 Poles

Cross-connector

Version: Cross-connector (terminal), grey, 24 A, 10 poles, Pitch: 6 mm, Width: 59.9 mm

Order No.: 1313100000

Type: Q 10 DLI

GTIN (EAN): 4008190167622

Quantity: 20 items

Dimensions & Weights

• Depth: 8 mm (0.315 inch)
• Height: 4 mm (0.157 inch)
• Width: 59.9 mm (2.358 inch)
• Net weight: 6.895 g

Temperatures

• Storage temperature: -25 °C...55 °C
• Ambient temperature: -60 °C…85 °C

Environmental Compliance

• RoHS: Compliant without exemption
• REACH SVHC: No SVHC above 0.1 wt%

Material Data

• Basic material: CuSn
• Colour: Grey

System Specifications

• Version: For cross-connection link
• Installation advice: Direct mounting
• Type of fixing: When screwed in
• Pitch: 6 mm
• Number of poles: 10
• Explosion-tested version: No

Rating Data

• Rated voltage: 400 V
• Nominal current: 24 A

Classifications

• ETIM 8.0: EC000489
• ETIM 9.0: EC000489
• ETIM 10.0: EC000489
• ECLASS 14.0: 27-25-03-03
• ECLASS 15.0: 27-25-03-03

The Q 10 DLI Cross-Connector is a reliable terminal accessory that is specifically designed for secure cross‑connections. Moreover, with 10 poles, a 6 mm pitch, and a robust CuSn construction, it ensures consistent electrical performance. Furthermore, thanks to its compact yet durable design, it supports up to 24 A and 400 V, thereby making it ideal for industrial applications.
