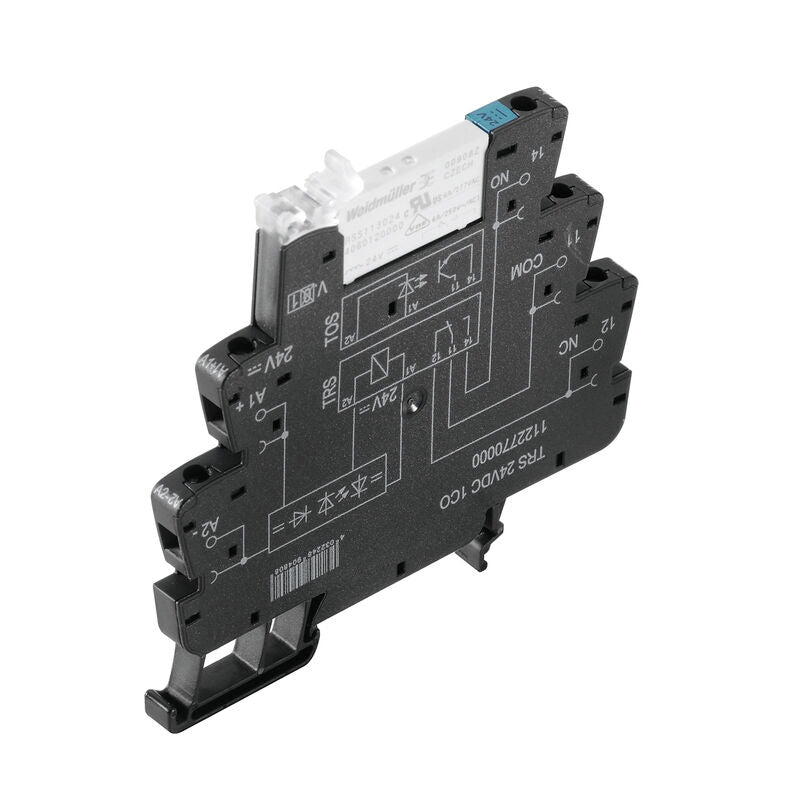

1122770000 TRS TERMSERIES Relay Module, TRS 24VDC 1CO

Dimensions & Weight

• ✔ Depth: 87.8 mm (3.457 in), so compact
• ✔ Height: 89.6 mm (3.528 in), therefore easy to fit
• ✔ Width: 6.4 mm (0.252 in), which saves space
• ✔ Net weight: 33 g, so lightweight

Temperature & Environmental Conditions

• ✔ Storage: –40 °C to +85 °C
• ✔ Operating: –40 °C to +60 °C, therefore reliable
• ✔ Humidity: 5–95% RH at 40 °C, which avoids condensation
• ✔ RoHS compliant with exemption (7a, 7cI), so eco‑friendly
• ✔ REACH SVHC: Contains lead (7439‑92‑1), therefore disclosed
• ✔ SCIP reference: 9e2cbc49‑76d9‑4611‑b8ec‑5b4f549a0aa9

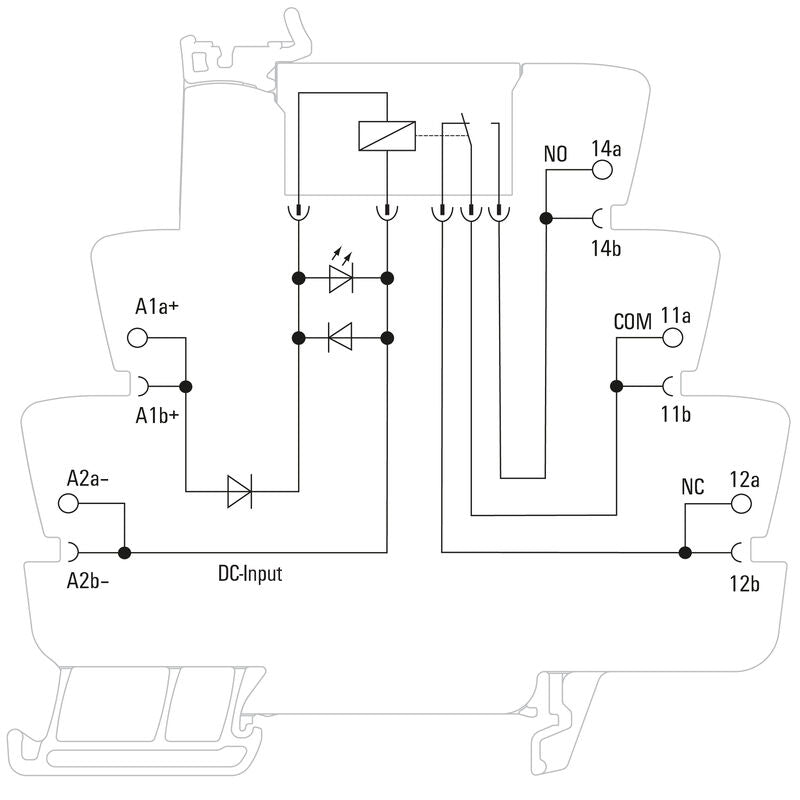

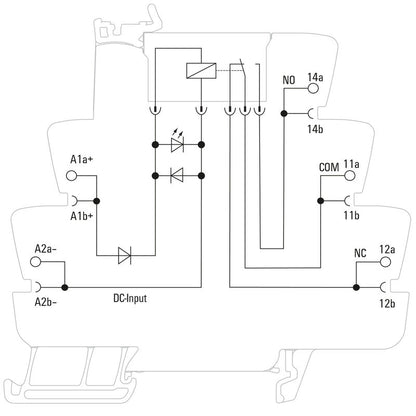

Control Side

• ✔ Rated control voltage: 24 V DC ±20%, so stable
• ✔ Rated current DC: 11.5 mA, therefore efficient
• ✔ Power rating: 280 mW, which saves energy
• ✔ Status indicator: Green LED, so clear
• ✔ Protective circuit: Free‑wheeling diode, reverse polarity protection, therefore safe
• ✔ Coil voltage replacement relay: 24 V DC

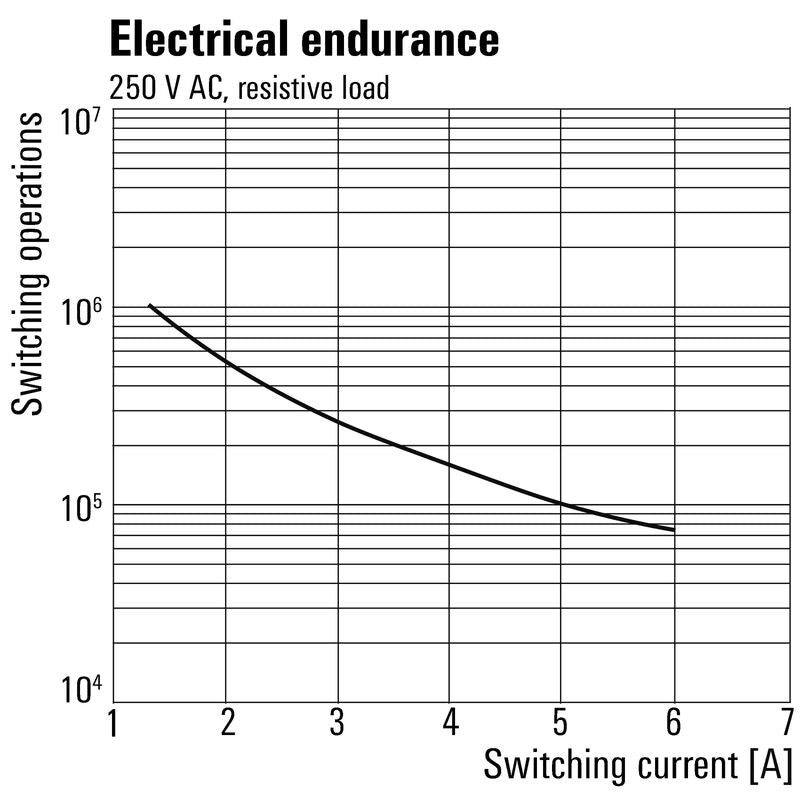

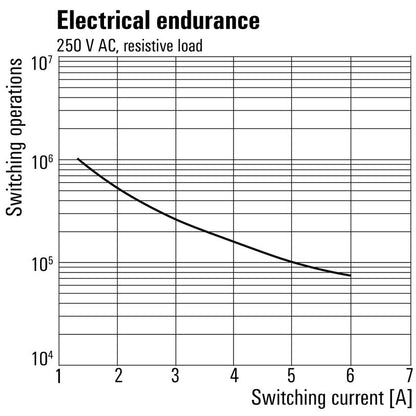

Load Side

• ✔ Rated switching voltage: 250 V AC, so versatile
• ✔ Continuous current: 6 A, therefore strong
• ✔ Max switching frequency: 0.1 Hz, which ensures stability
• ✔ Switching voltage max: 250 V AC/DC
• ✔ Min switching power: 1 mA @ 24 V, 10 mA @ 12 V, 100 mA @ 5 V
• ✔ Inrush current: 20 A / 20 ms, so robust
• ✔ AC switching capacity: 1500 VA
• ✔ DC switching capacity: 144 W @ 24 V
• ✔ Switch‑on delay: ≤ 6 ms
• ✔ Switch‑off delay: ≤ 16 ms
• ✔ Contact type: 1 CO contact (AgNi)
• ✔ Mechanical service life: 5 × 10⁶ cycles, therefore durable

Connection Data

• ✔ Wire connection: Screw, so secure
• ✔ Stripping length: 8 mm, therefore easy
• ✔ Tightening torque: 0.4 Nm, which ensures safety
• ✔ Clamping range: 0.14–2.5 mm², so flexible
• ✔ Wire cross‑section: AWG 26–14
• ✔ Blade size: PH0

Classifications

• ✔ ETIM 8.0: EC001437
• ✔ ETIM 9.0: EC001437
• ✔ ETIM 10.0: EC001437
• ✔ ECLASS 14.0: 27‑37‑16‑01
• ✔ ECLASS 15.0: 27‑37‑16‑01
