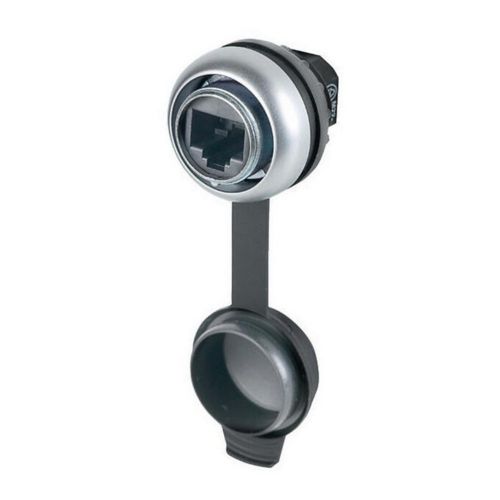

107413 M22-M22 Bulkhead Interface RJ45 socket, 8/8, Cat. 5e, titanium bezel
107413 M22-M22 Bulkhead Interface RJ45 socket, 8/8, Cat. 5e, titanium bezel
Regular price
$100.00 CAD
Regular price
Sale price
$100.00 CAD
Unit price
per
General Specifications
Eaton Moeller® M22 Bulkhead Interface, RJ45 socket, 8/8, Cat. 5e, titanium bezel
| Product Name | Eaton Moeller® M22 Bulkhead Interface RJ45 socket |
| Catalog Number | 107413 |
| Model Code | M22-RJ45-SA |
| EAN | 4015081071517 |
| Dimensions | 30 × 30 × 30 mm |
| Weight | 0.014 kg |
| Bezel | Titanium |
| Certifications | UL 508, CSA Std. C22.2 No. 142, IEC/EN 6113-2, CE, UL File No. E330994 |
| Compliances | CE Marked, RoHS conform |
| Catalog Notes | RJ45 socket, 8/8, Cat. 5e |
Electrical & Mechanical Ratings
- ✔ Rated voltage: 24 V AC, so safe
- ✔ Max voltage: 50 V, therefore reliable
- ✔ Nominal current: 1500 mA, which supports stable power
- ✔ Insulation resistance: ≥ 100 MΩ, so secure
- ✔ Contact resistance: < 30 mΩ, therefore efficient
- ✔ Contact material: CuSn, gold-plated, which ensures durability
- ✔ Mechanical lifespan: 750 insertion cycles, so long-lasting
Environmental Conditions
- ✔ Operating temperature: –25 °C to +70 °C, so reliable in varied climates
- ✔ Storage temperature: –25 °C to +80 °C, therefore safe
- ✔ Protection: IP65 closed, IP20 connected, which resists dust and water
- ✔ NEMA rating: 12 (closed cover), so suitable for industrial use
Applications
- ✔ Control panels, so operators can connect RJ45 safely
- ✔ Automation systems, therefore reliable communication
- ✔ Cabinet interfaces, which simplify external access
- ✔ Machine monitoring setups, so Ethernet connections remain protected
- ✔ General electrical installations, therefore versatile
