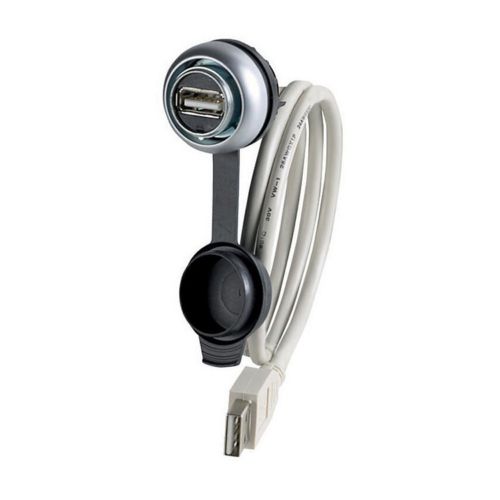

107412 M22-USB-SA M22 Bulkhead Interface, USB 3.0 Type A, titanium bezel, 0.6 m cable
107412 M22-USB-SA M22 Bulkhead Interface, USB 3.0 Type A, titanium bezel, 0.6 m cable
Regular price
$150.00 CAD
Regular price
Sale price
$150.00 CAD
Unit price
per
General Specifications
Eaton Moeller® M22 Bulkhead Interface, USB 3.0 Type A, titanium bezel, 0.6 m cable
| Product Name | Eaton Moeller® M22 Bulkhead Interface, USB 3.0 |
| Catalog Number | 107412 |
| Part Number | M22-USB-SA |
| EAN | 4015081071500 |
| Dimensions | 120 × 120 × 30 mm |
| Weight | 0.043 kg |
| Cable Length | 0.6 m prefabricated cable with USB 3.0 Type A plug |
| Bezel | Titanium |
| Certifications | UL 508, CSA Std. C22.2 No. 142, IEC/EN 6113-2, CE, UL File No. E330994 |
| Compliances | CE Marked, RoHS conform |
Electrical & Mechanical Ratings
- ✔ Rated voltage: 5 V AC/DC, so safe for USB devices
- ✔ Max voltage: 30 V, therefore reliable
- ✔ Nominal current: 900 mA, which supports stable power
- ✔ Data transfer rate: up to 5 Gbit/s, so fast
- ✔ Contact resistance: < 30 mΩ, therefore efficient
- ✔ Insulation resistance: ≥ 100 MΩ, which ensures safety
- ✔ Mechanical lifespan: 100 insertion cycles, so durable
Environmental Conditions
- ✔ Operating temperature: –20 °C to +70 °C, so reliable in varied climates
- ✔ Storage temperature: –25 °C to +80 °C, therefore safe
- ✔ Protection: IP65 closed, IP20 connected, which resists dust and water
- ✔ NEMA rating: 12 (closed cover), so suitable for industrial use
- ✔ Cable sheath: PVC, therefore flexible
- ✔ Outer diameter: 6.1 mm, which fits standard routing
- ✔ Bending radius: 15 × cable diameter, so installation is easy
Applications
- ✔ Control panels, so operators can connect USB devices safely
- ✔ Automation systems, therefore reliable data transfer
- ✔ Cabinet interfaces, which simplify external access
- ✔ Machine monitoring setups, so USB connections remain protected
- ✔ General electrical installations, therefore versatile
