WAP WDU2.5N/4N End plate for terminals 1060000000 WEIDMULLER
WAP WDU2.5N/4N End plate for terminals 1060000000 WEIDMULLER
Regular price
$1.20 CAD
Regular price
Sale price
$1.20 CAD
Unit price
/
per

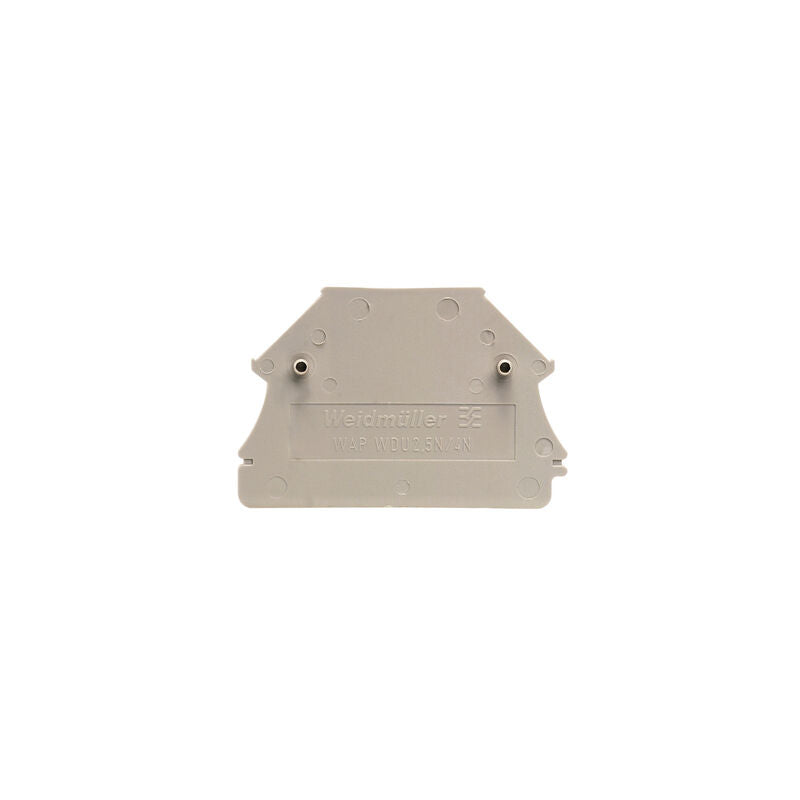

Weidmüller WAP WDU2.5N/4N End Plate
The Weidmüller WAP WDU2.5N/4N is a high-quality end plate designed for use with compatible terminal blocks to provide electrical isolation and a professional finished appearance within terminal assemblies. Manufactured from durable Wemid insulating material, this end plate offers excellent mechanical strength, flame resistance, and long-term reliability in industrial control and automation applications.
Key Features
- End plate for compatible terminal block assemblies
- Provides electrical and mechanical separation at the end of terminal rows
- Manufactured from durable Wemid insulation material
- Dark beige color for standard industrial installations
- Compact 1.5 mm width minimizes panel space requirements
- UL 94 V-0 flame-retardant rating
- Direct mounting design
- RoHS compliant without exemptions
- Suitable for industrial control panels and automation systems
Technical Specifications
| Manufacturer | Weidmüller |
|---|---|
| Model | WAP WDU2.5N/4N |
| Part Number | 1060000000 |
| GTIN (EAN) | 4008190149154 |
| Product Type | Terminal Block End Plate |
| Installation Method | Direct Mounting |
| Snap-On | No |
| Material | Wemid |
| Colour | Dark Beige |
| Flammability Rating | UL 94 V-0 |
Dimensions & Weight
| Width | 1.5 mm |
|---|---|
| Height | 44 mm |
| Depth | 29.7 mm |
| Net Weight | 1.781 g |
Environmental Specifications
- Storage Temperature: -25°C to +55°C
- Ambient Temperature: -60°C to +85°C
- Continuous Operating Temperature: -50°C to +120°C
- RoHS Compliance: Compliant without exemption
- REACH SVHC: No SVHC above 0.1 wt%
- Product Carbon Footprint (Cradle to Gate): 0.02 kg CO₂ eq.
Applications
The WAP WDU2.5N/4N end plate is used to terminate and isolate terminal block assemblies in electrical control panels, switchgear systems, industrial machinery, building automation systems, and power distribution installations. It enhances safety while providing a clean and professional terminal arrangement.
Package Information
- Order Number: 1060000000
- Type: WAP WDU2.5N/4N
