WQV 2.5/10 Cross-connector Weidmuller 32 A, Number of poles: 10 1054460000
WQV 2.5/10 Cross-connector Weidmuller 32 A, Number of poles: 10 1054460000
Regular price
$9.00 CAD
Regular price
Sale price
$9.00 CAD
Unit price
/
per

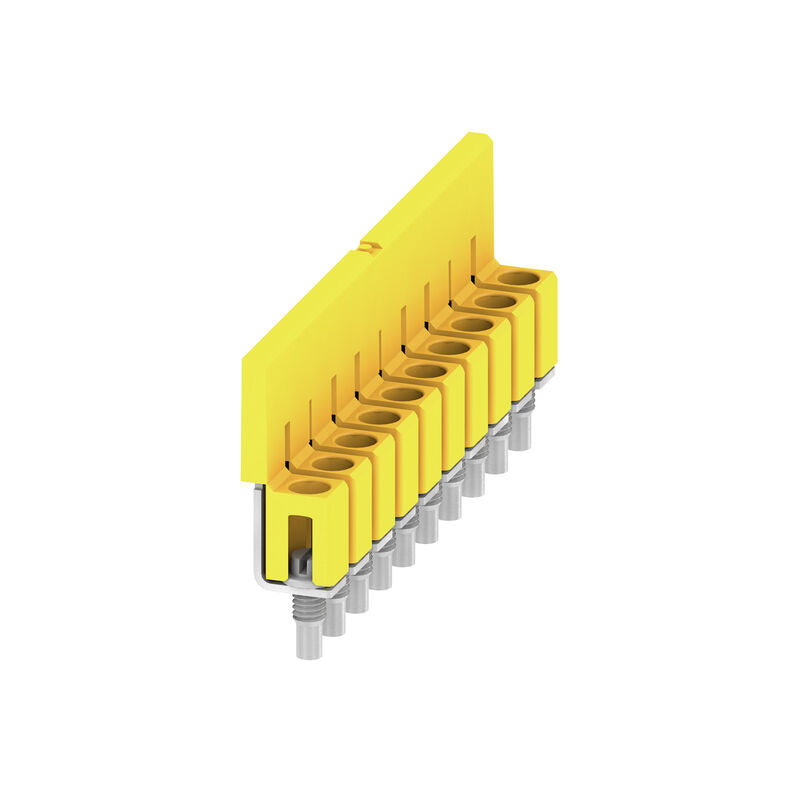

Weidmüller WQV 2.5/10 Cross-Connector
The Weidmüller WQV 2.5/10 is an insulated 10-pole cross-connector designed for efficient potential distribution across compatible terminal blocks. Engineered for reliable electrical bridging, this screw-mounted cross-connector simplifies wiring, reduces installation time, and ensures consistent power distribution in industrial control panels and automation systems.
Key Features
- 10-pole insulated cross-connector for terminal blocks
- Designed for efficient potential distribution
- Screw-fixed installation for secure mounting
- Rated current up to 32 A
- Rated voltage up to 400 V
- 5.1 mm pitch spacing
- Yellow insulated housing for easy identification
- Manufactured from durable PA 66 material
- UL 94 V-0 flame-retardant rating
- RoHS compliant without exemptions
- Suitable for industrial automation and control panel applications
Technical Specifications
| Manufacturer | Weidmüller |
|---|---|
| Model | WQV 2.5/10 |
| Part Number | 1054460000 |
| GTIN (EAN) | 4008190135089 |
| Product Type | Cross-Connector / Jumper Bar |
| Number of Poles | 10 |
| Pitch | 5.1 mm |
| Mounting Method | Screw Fixed |
| Insulated | Yes |
| Rated Voltage | 400 V |
| Nominal Current | 32 A |
| Material | PA 66 |
| Colour | Yellow |
| Flammability Rating | UL 94 V-0 |
Dimensions & Weight
| Width | 7 mm |
|---|---|
| Height | 49.9 mm |
| Depth | 18 mm |
| Net Weight | 7.75 g |
Environmental Specifications
- Storage Temperature: -25°C to +55°C
- Ambient Temperature: -60°C to +85°C
- Continuous Operating Temperature: -60°C to +130°C
- RoHS Compliance: Compliant without exemption
- REACH SVHC: No SVHC above 0.1 wt%
Applications
The WQV 2.5/10 cross-connector is used to bridge multiple terminal blocks, enabling rapid and reliable distribution of common potentials within electrical control panels, switchgear assemblies, power distribution systems, and industrial automation equipment.
Package Information
- Order Number: 1054460000
- Type: WQV 2.5/10
