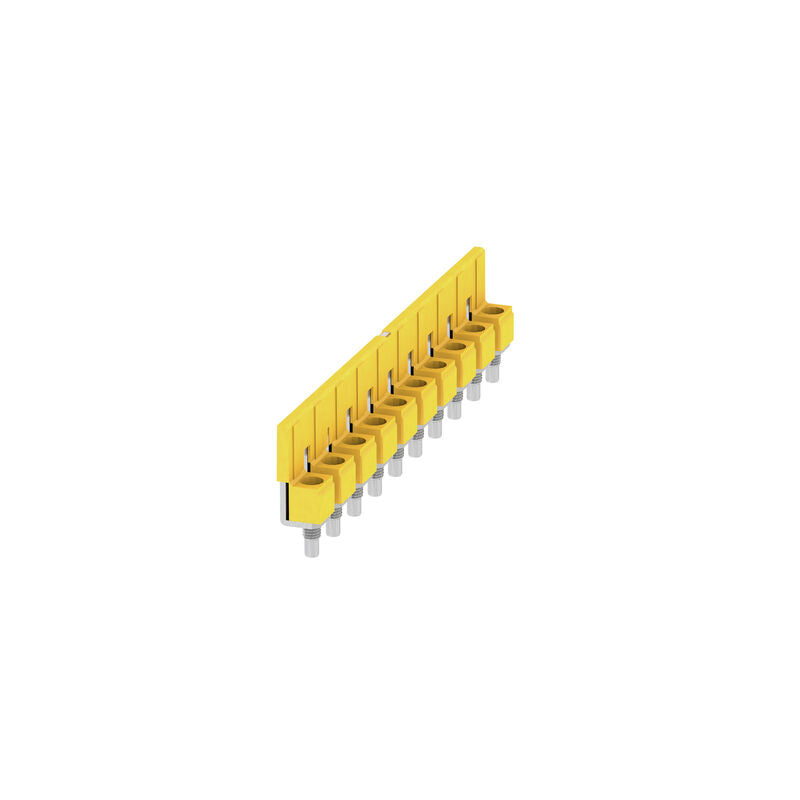

1052460000 Cross-connector (terminal), when screwed in, yellow, 63 A, Number of poles: 10, Pitch in mm (P): 9.90, Insulated: Yes, Width: 7.55 mm WQV 10/10

Dimensions and Weight

• ✔ Depth: 18 mm, so compact
• ✔ Height: 96.1 mm, therefore fits panels
• ✔ Width: 7.55 mm, which saves space
• ✔ Net weight: 18.85 g, so lightweight

Temperature Range

• ✔ Storage: –25 °C to +55 °C
• ✔ Ambient: –60 °C to +85 °C
• ✔ Continuous: –60 °C to +130 °C, therefore reliable

Material Data

• ✔ Basic material: PA 66, so durable
• ✔ Colour: Yellow, which is standard
• ✔ UL 94 rating: V-0, therefore fire safe

System Specifications

• ✔ For terminals, so easy integration
• ✔ Direct mounting, therefore simple
• ✔ Fixing: screwed in, which ensures stability
• ✔ Number of poles: 10, so flexible
• ✔ Pitch: 9.9 mm, therefore precise

Electrical Ratings

• ✔ Rated voltage: 400 V, so safe
• ✔ Nominal current: 63 A, therefore strong

Environmental Compliance

• ✔ RoHS compliant without exemption, so eco-friendly
• ✔ REACH SVHC: No substances above 0.1 wt%, therefore safe
