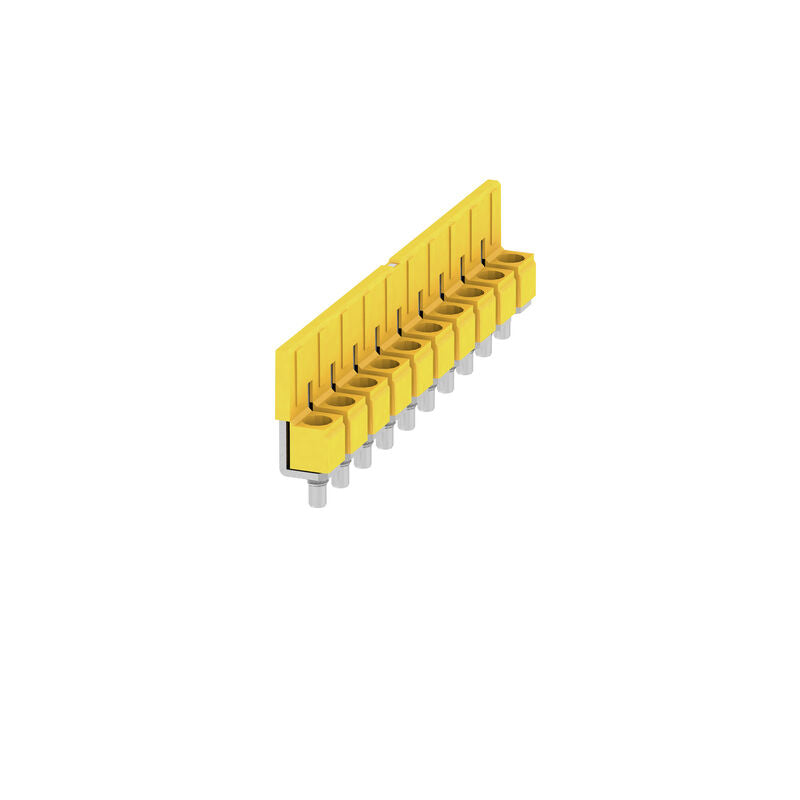

Weidmüller WQV 6/10 Cross-Connector
The Weidmüller WQV 6/10 is an insulated 10-pole cross-connector engineered for reliable potential distribution across compatible terminal blocks. Designed for industrial control panels and automation systems, this screw-fixed jumper bar allows fast and secure bridging of multiple terminals while maintaining electrical safety and installation efficiency.
Key Features
- 10-pole insulated cross-connector for terminal blocks
- Provides efficient common potential distribution
- Screw-fixed design for secure installation
- Rated current up to 57 A
- Rated voltage up to 400 V
- 8.0 mm pitch compatibility
- Insulated yellow housing for easy circuit identification
- Manufactured from durable PA 66 material
- UL 94 V-0 flame-retardant construction
- RoHS compliant without exemptions
- Ideal for industrial automation and power distribution applications
Technical Specifications
| Manufacturer | Weidmüller |
|---|---|
| Model | WQV 6/10 |
| Part Number | 1052260000 |
| GTIN (EAN) | 4008190153977 |
| Product Type | Cross-Connector / Jumper Bar |
| Number of Poles | 10 |
| Pitch | 8.0 mm |
| Mounting Method | Screw Fixed |
| Insulated | Yes |
| Rated Voltage | 400 V |
| Nominal Current | 57 A |
| Material | PA 66 |
| Colour | Yellow |
| Flammability Rating | UL 94 V-0 |
Dimensions & Weight
| Width | 7.6 mm |
|---|---|
| Height | 77.3 mm |
| Depth | 18 mm |
| TS 35 Offset | 28 mm |
| Net Weight | 17 g |
Environmental Specifications
- Storage Temperature: -25°C to +55°C
- Ambient Temperature: -60°C to +85°C
- Continuous Operating Temperature: -60°C to +130°C
- RoHS Compliance: Compliant without exemption
- REACH SVHC: No SVHC above 0.1 wt%
Material Information
- Base Material: PA 66
- Colour: Yellow
- Flammability Rating: UL 94 V-0
- Insulated Construction: Yes
Applications
The WQV 6/10 cross-connector is designed to bridge multiple terminal blocks, allowing quick and reliable distribution of common electrical potentials in control panels, switchgear assemblies, machinery wiring systems, power distribution cabinets, and industrial automation equipment. Its insulated construction enhances safety while simplifying wiring and reducing installation time.
Package Information
- Order Number: 1052260000
- Type: WQV 6/10
