WAP 2.5-10 End plate for terminals WEIDMULLER dark beige 1050000000

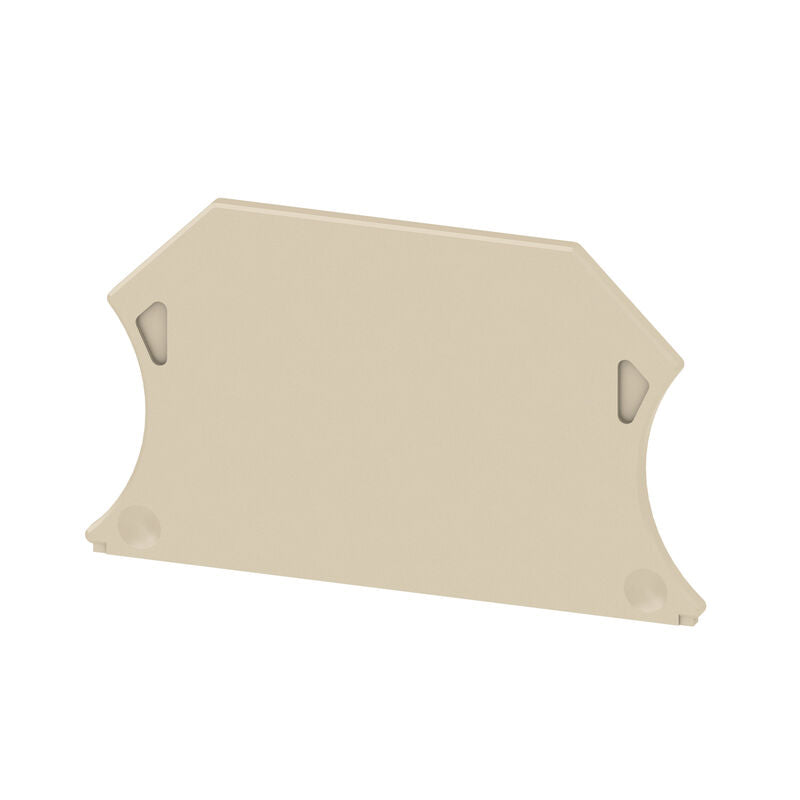

Weidmüller WAP 2.5-10 End Plate

The Weidmüller WAP 2.5-10 is a high-quality terminal block end plate designed to provide electrical isolation and mechanical protection at the end of terminal block assemblies. Manufactured from durable Wemid insulation material, this end plate ensures a clean, professional installation while maintaining safety and reliability in industrial control panels and automation systems.

Key Features

• End plate for terminal block assemblies
• Provides electrical and mechanical separation at terminal row ends
• Compatible with Weidmüller W-Series terminal blocks
• Slim 1.5 mm profile minimizes panel space requirements
• Manufactured from high-performance Wemid insulating material
• Dark beige color for standard industrial applications
• UL 94 V-0 flame-retardant material
• Direct mounting installation
• RoHS compliant without exemptions
• Designed for long-term use in industrial environments

Technical Specifications

Dimensions & Weight

Environmental Specifications

• Storage Temperature: -25°C to +55°C
• Ambient Temperature: -60°C to +85°C
• Continuous Operating Temperature: -60°C to +130°C
• RoHS Compliance: Compliant without exemption
• REACH SVHC: No SVHC above 0.1 wt%
• Product Carbon Footprint (Cradle to Gate): 0.957 kg CO₂ eq.

Applications

The WAP 2.5-10 end plate is used to terminate terminal block rows and provide insulation between adjacent components within electrical control panels, industrial automation systems, switchgear assemblies, machinery control cabinets, and power distribution equipment. It helps improve safety, organization, and overall installation quality.

Package Information

• Order Number: 1050000000
• Type: WAP 2.5-10
