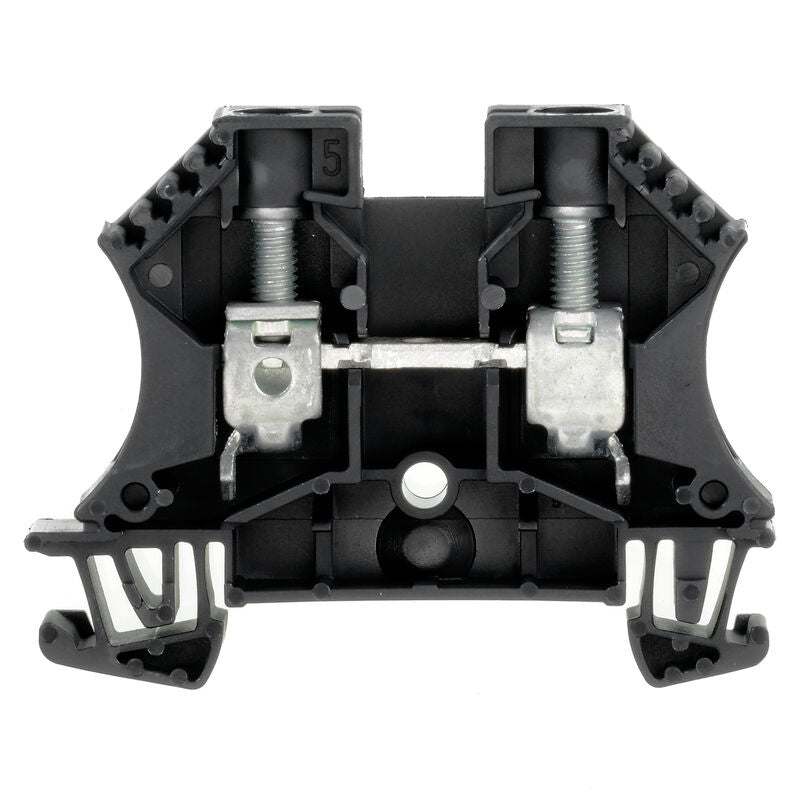

WDU 10 SW Feed-through Terminal Block

Feed-through

Order No.: 1020310000

GTIN (EAN): 4008190343682

Quantity: 50 items

Key Features

  • To begin with, this is a feed-through terminal block with screw connection
  • Moreover, it supports a rated cross-section of 10 mm²
  • Additionally, it withstands a rated voltage of 1000 V (DC/AC)
  • Consequently, it carries a nominal current of 57 A (up to 76 A at max wires)
  • Furthermore, it mounts easily on TS 35 rail
  • In terms of appearance, it comes in Black (Wemid material)
  • Importantly, it meets UL 94 flammability rating: V-0
  • Finally, it is explosion-tested (ATEX/IECEx certified)

Dimensions & Weight

  • First of all, depth: 46.5 mm (1.831 in)
  • Next, height: 60 mm (2.362 in)
  • Then, width: 9.9 mm (0.39 in)
  • As a result, net weight: 15.699 g

Environmental Compliance

  • To clarify, RoHS: Compliant without exemption
  • Equally important, REACH SVHC: No SVHC above 0.1 wt%
  • Therefore, Product Carbon Footprint: 0.15 kg CO₂ eq. (cradle to gate)

Certifications

  • Specifically, UL File Number: E60693
  • In addition, CSA Certificate No.: 200039-1057876
  • Also, ATEX Certificate: DEMKO14ATEX1338U
  • Moreover, IECEx Certificate: IECEXULD14.0005U
  • Accordingly, Marking EN 60079-7: Ex eb II C Gb
  • Finally, Ex 2014/34/EU label: II 2 G D

Technical Specifications

  • To start, connection type: Screw connection
  • Additionally, number of connections: 2 (single level, 2 clamping points)
  • Moreover, conductor cross-section: 1.5 – 16 mm²
  • Equivalently, wire connection cross-section AWG: 6 – 16
  • Next, stripping length: 12 mm
  • Furthermore, tightening torque: 1.2 – 1.9 Nm
  • Also, clamping screw: M 4
  • As a result, contact resistance: 0.56 mΩ
  • Consequently, impulse withstand voltage: 8 kV
  • Finally, pollution severity: 3

Standards & Classifications

  • Specifically, IEC 60947-7-1
  • Additionally, ETIM 8.0 / 9.0 / 10.0: EC000897
  • Finally, ECLASS 14.0 / 15.0: 27-25-01-01
