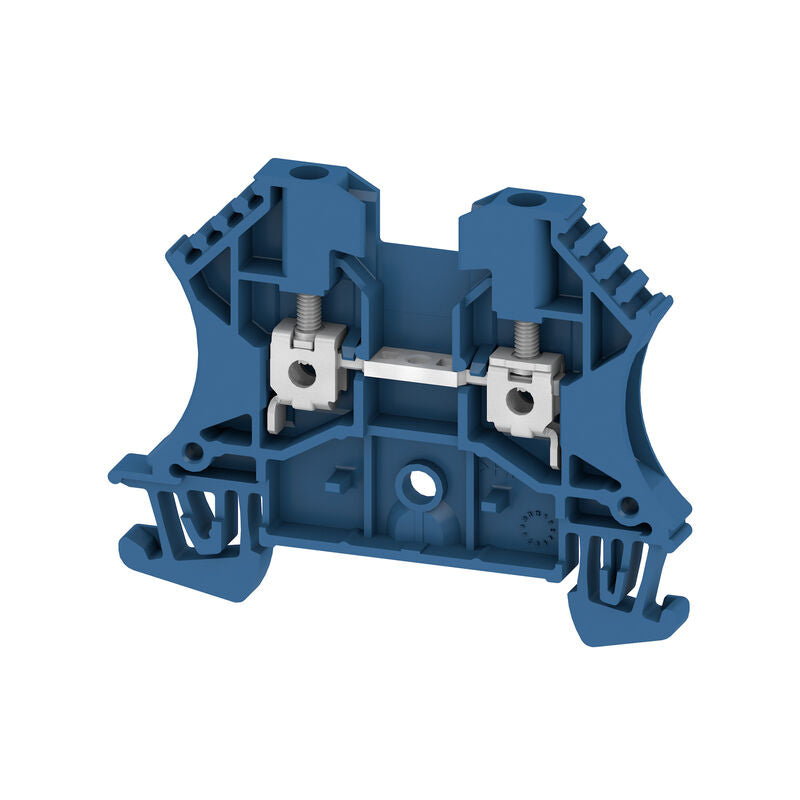

1020080000 WDU 2.5 BL Feed-through terminal block WEIDMULLER, Screw connection, blue, 2.5 mm², 24 A, 800 V, Number of connections: 2

WDU 2.5 BL Feed-through Terminal Block

Feed-through

Order No.: 1020080000

GTIN (EAN): 4008190163235

Quantity: 100 items

Key Features

• To begin with, this is a feed-through terminal block with screw connection
• Moreover, it supports a rated cross-section of 2.5 mm²
• Additionally, it withstands a rated voltage of 800 V (DC/AC)
• Consequently, it carries a nominal current of 24 A (up to 32 A at max wires)
• Furthermore, it mounts easily on TS 35 rail
• In terms of appearance, it comes in Blue (Wemid material)
• Importantly, it meets UL 94 flammability rating: V-0
• Finally, it is explosion-tested (ATEX/IECEx certified)

Dimensions & Weight

• First of all, depth: 46.5 mm (1.831 in)
• Next, height: 60 mm (2.362 in)
• Then, width: 5.1 mm (0.201 in)
• As a result, net weight: 7.43 g

Environmental Compliance

• To clarify, RoHS: Compliant without exemption
• Equally important, REACH SVHC: No SVHC above 0.1 wt%
• Therefore, Product Carbon Footprint: 0.063 kg CO₂ eq. (cradle to gate)

Certifications

• Specifically, UL File Number: E60693
• In addition, CSA Certificate No.: 200039-1057876
• Also, ATEX Certificate: DEMKO14ATEX1338U
• Moreover, IECEx Certificate: IECEXULD14.0005U
• Accordingly, Marking EN 60079-7: Ex eb II C Gb
• Finally, Ex 2014/34/EU label: II 2 G D

Technical Specifications

• To start, connection type: Screw connection
• Additionally, number of connections: 2 (single level, 2 clamping points)
• Moreover, conductor cross-section: 0.5 – 4 mm²
• Equivalently, wire connection cross-section AWG: 30 – 12
• Next, stripping length: 10 mm
• Furthermore, tightening torque: 0.4 – 0.8 Nm
• Also, clamping screw: M 2.5
• As a result, contact resistance: 1.33 mΩ
• Consequently, impulse withstand voltage: 8 kV
• Finally, pollution severity: 3

Important Note

Notably, 2.5 mm² wires with wire ferrule including the plastic collar are only clampable with diameter‑optimized collar (Order No. 1333100000, pack of 500).

Standards & Classifications

• Specifically, IEC 60947-7-1
• Additionally, ETIM 8.0 / 9.0 / 10.0: EC000897
• Finally, ECLASS 14.0 / 15.0: 27-25-01-01
