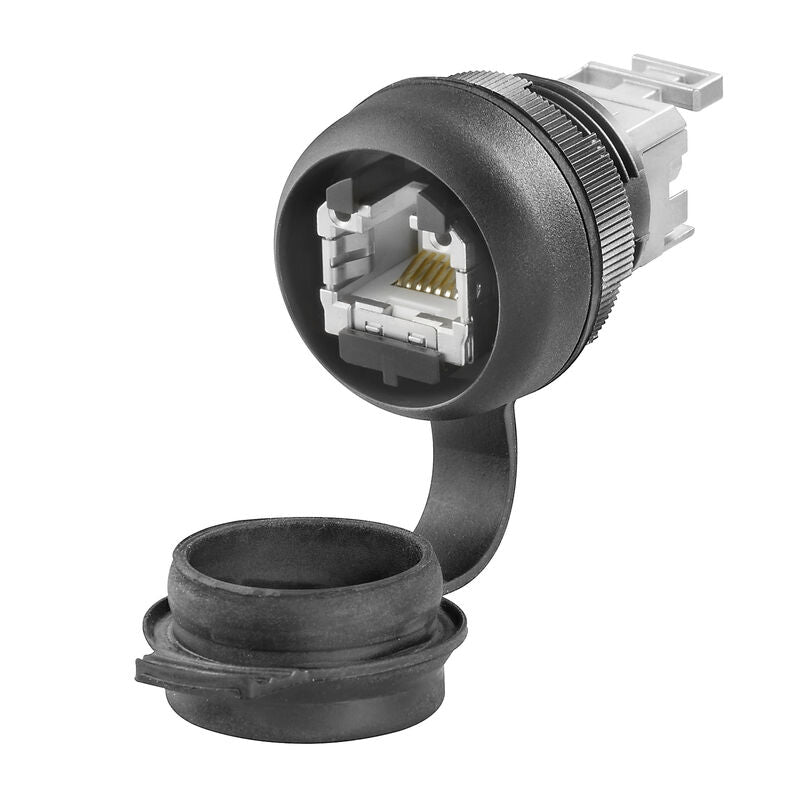

1018810000 WEIDMULLER IE-FCM-RJ45-FJ-A FrontCom Micro RJ45 module, TIA-568A
1018810000 WEIDMULLER IE-FCM-RJ45-FJ-A FrontCom Micro RJ45 module, TIA-568A
Regular price
$42.33 CAD
Regular price
Sale price
$42.33 CAD
Unit price
/
per
🔌 FrontCom RJ45 Module (TIA-568A)
FrontCom Module
Order No.: 1018810000
Type: IE-FCM-RJ45-FJ-A
GTIN (EAN): 4032248730063
Quantity: 10 items per pack
✨ Product Highlights
- To begin with, RJ45 module with IDC termination
- Moreover, wiring standard: TIA-568A
- Additionally, category: Cat.6A / Class EA (ISO/IEC 11801:2010)
- Furthermore, housing material: PA UL 94 V0
- Equally important, colour: Black
- In addition, gold over nickel contact surface
- As a result, protection degree: IP65 (closed state)
- Meanwhile, shielding: 360° shield contact
- Consequently, plugging cycles: 750
- Finally, PoE / PoE+ conforming to IEEE 802.3bt

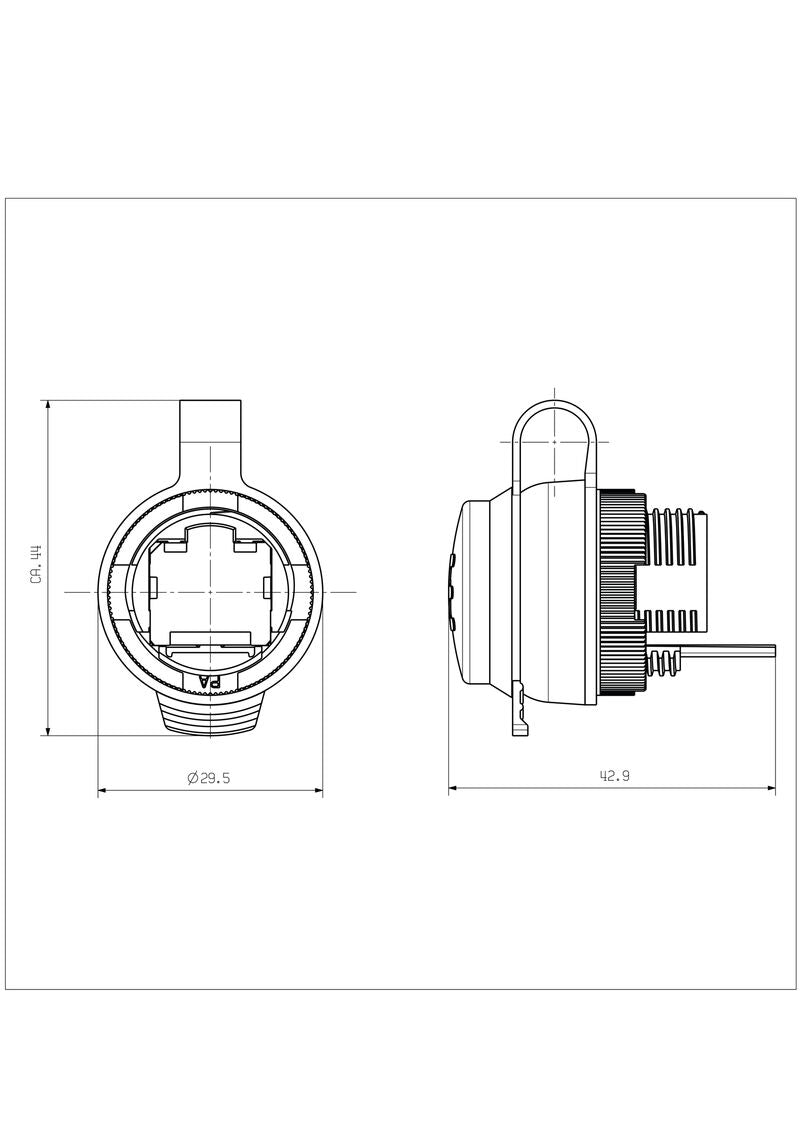

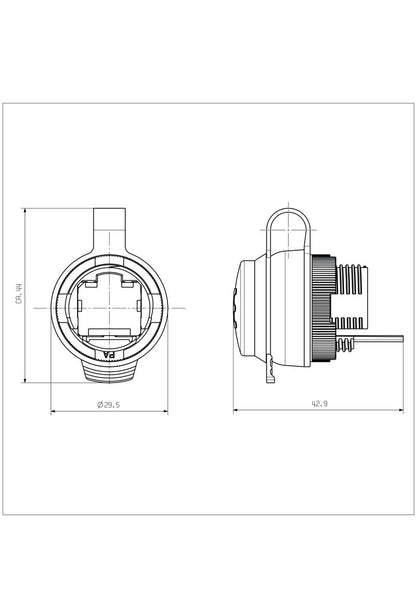

📐 Dimensions & Weight
- When it comes to depth: 42.9 mm (1.689 in)
- Similarly, height: 44 mm (1.732 in)
- Also, width: 29.5 mm (1.161 in)
- Moreover, wall thickness: 1–5 mm
- Despite its robust design, net weight: 28.93 g
🌡️ Operating Conditions
- Equally important, operating temperature: -40 °C to +70 °C
✅ Compliance & Approvals
- Not only RoHS: Compliant without exemption
- But also REACH SVHC: No substances above 0.1 wt%
- On top of that, cULus Certificate: E316369
⚙️ Technical Specifications
- To start with, tightening torque (fixing nut): 2 Nm
- Next, connection 1: RJ45
- Meanwhile, connection 2: IDC
- Additionally, insulation cross-section max: 1.6 mm
- Solid conductor diameter: 0.4–0.64 mm (AWG 24–22)
- Flexible conductor diameter: 0.48–0.76 mm (AWG 26–22)
- Moreover, sheath diameter: 5.5–10 mm
- Mounting: Cabinet / Distribution box
- As a result, dielectric strength (contact/contact): ≥ 1000 V AC/DC
- Furthermore, dielectric strength (contact/shield): ≥ 1500 V AC/DC
- Finally, connector standard: IEC 60603-7-51
📦 Classifications
- ETIM 8.0 / 9.0 / 10.0: EC001031
- Moreover, ECLASS 14.0 / 15.0: 27-18-28-92
👉 All things considered, ideal for industrial cabinet installations, offering secure RJ45 connectivity, high shielding, and compliance with Cat.6A standards.
