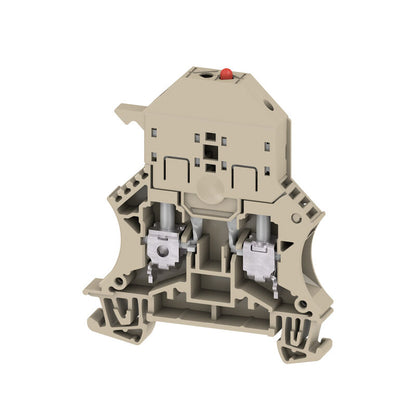

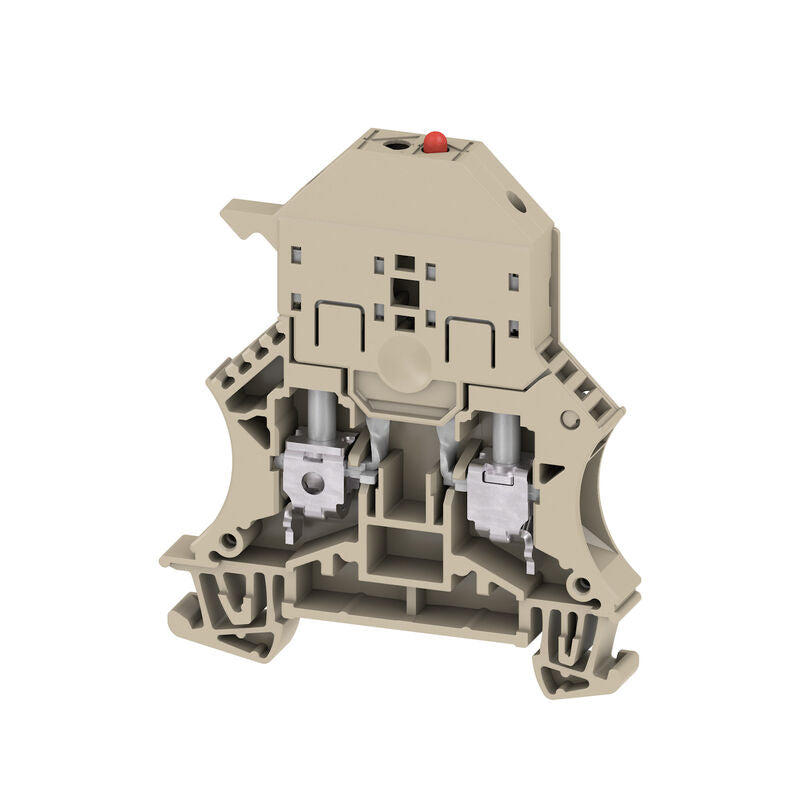

1012300000 Fuse terminal, Screw connection, dark beige, 6 mm², 6.3 A, 150 V, Number of connections: 2, Number of levels: 1, TS 35 WSI 6/LD 60-150V DC/AC

Dimensions and Weight

• ✔ Depth: 71.5 mm (72 mm incl. DIN rail), so compact design is ensured
• ✔ Height: 60 mm, therefore suitable for tight spaces
• ✔ Width: 7.9 mm, which makes it slim
• ✔ Net weight: 19.37 g, so handling is easy

Key Features

• ✔ Screw connection with fuse isolator and LED, so monitoring is simple
• ✔ Pivoting fuse holder, which makes replacement quick
• ✔ Red LED display, therefore fault indication is clear
• ✔ End cover plate required, so installation stays safe
• ✔ UL 94 V-0 flammability rating, which ensures fire safety
• ✔ Made of Wemid material, therefore durable and resistant

Electrical Ratings

• ✔ Rated voltage: 150 V AC/DC, so it works in many setups
• ✔ Nominal current: 6.3 A, therefore suitable for medium loads
• ✔ Rated cross-section: 6 mm², which supports standard wiring
• ✔ Contact resistance: 0.78 mΩ, so efficiency is high
• ✔ Impulse withstand voltage: 6 kV, therefore reliable under surges
• ✔ Power loss: 1.31 W, which keeps energy use low
• ✔ Pollution severity: 3, so it fits industrial environments

Connection Data

• ✔ Clamping range: 0.5–10 mm², so flexible wiring is possible
• ✔ Stripping length: 12 mm, which ensures proper fit
• ✔ Tightening torque: 0.8–1.6 Nm, therefore secure connection
• ✔ Clamping screw: M3.5, so standard tools can be used
• ✔ Wire connection cross section: AWG 20–8, which covers common sizes

Environmental Compliance

• ✔ RoHS compliant with exemption 7cI, so it meets EU rules
• ✔ REACH SVHC: No substances above 0.1 wt%, therefore safer

Applications

• ✔ Transformer and control circuit protection, so reliability improves
• ✔ Industrial automation panels, therefore safer operation
• ✔ Power distribution systems, which need secure fuse terminals
• ✔ HVAC and building management systems, so motors stay protected
• ✔ General electrical installations needing fuse terminals
