WPE 6 PE Protective Earth (PE) terminal block 1010200000 WEIDMULLER Green/yellow, 6 mm²
WPE 6 PE Protective Earth (PE) terminal block 1010200000 WEIDMULLER Green/yellow, 6 mm²
Regular price
$6.50 CAD
Regular price
Sale price
$6.50 CAD
Unit price
/
per

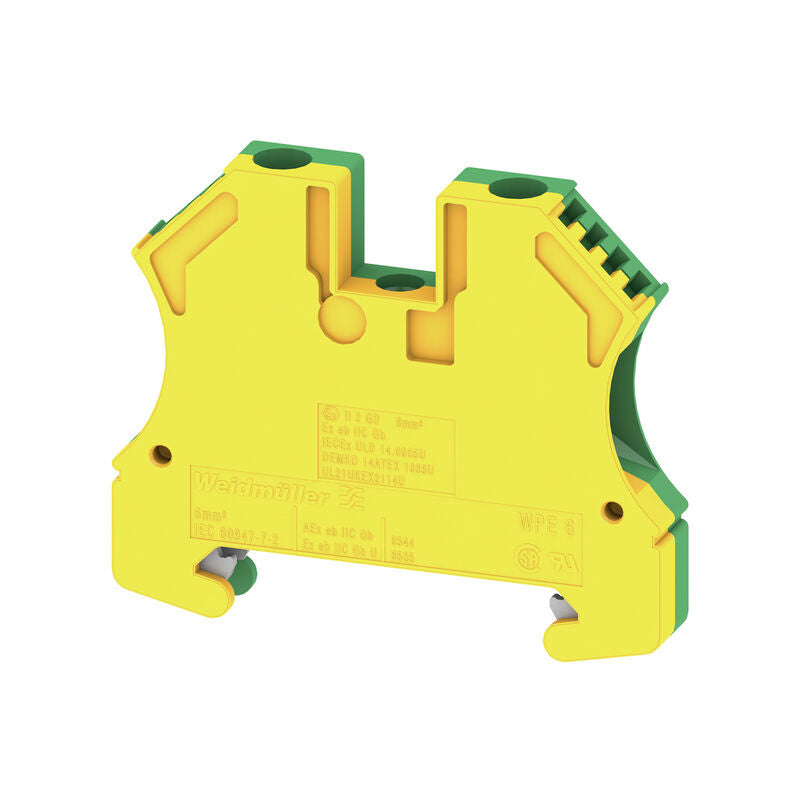

Weidmüller WPE 6 PE Terminal Block
The Weidmüller WPE 6 is a robust protective earth (PE) terminal block engineered for safe grounding applications in industrial control panels, switchgear, and automation systems. Designed for TS 35 DIN rail mounting, this terminal offers dependable screw-clamp connections, high conductivity, and compliance with global industrial safety standards.
Key Features
- Protective Earth (PE) terminal block
- Reliable screw connection technology
- Rated conductor cross-section: 6 mm²
- Accepts conductor sizes up to 10 mm²
- Compact DIN rail mounting design
- Green/yellow housing for easy grounding identification
- High-performance Wemid insulation material
- UL 94 V-0 flame-retardant construction
- ATEX and IECEx certified for hazardous environments
- RoHS compliant without exemptions
- Suitable for demanding industrial applications
Technical Specifications
| Manufacturer | Weidmüller |
|---|---|
| Series | W-Series |
| Model | WPE 6 |
| Part Number | 1010200000 |
| GTIN (EAN) | 4008190090098 |
| Terminal Type | PE (Protective Earth) Terminal Block |
| Connection Type | Screw Connection |
| Number of Connections | 2 |
| Number of Levels | 1 |
| Rated Cross Section | 6 mm² |
| Maximum Conductor Size | 10 mm² |
| Rated Voltage | 800 V |
| Rated DC Voltage | 800 V |
| Rated Impulse Withstand Voltage | 8 kV |
| Contact Resistance | 0.78 mΩ |
| Conductor Range | 0.08 mm² – 10 mm² |
| Wire Size Range | AWG 26 – AWG 8 |
| Stripping Length | 12 mm |
| Tightening Torque | 0.8 – 1.3 Nm |
| Clamping Screw | M3 |
| Connection Direction | Side Entry |
| Mounting Type | TS 35 DIN Rail |
| Material | Wemid |
| Colour | Green / Yellow |
| Flammability Rating | UL 94 V-0 |
Dimensions & Weight
| Width | 7.9 mm |
|---|---|
| Height | 56 mm |
| Depth | 46.5 mm |
| Depth Including DIN Rail | 47 mm |
| TS 35 Offset | 50 mm |
| Net Weight | 25.98 g |
Environmental Specifications
- Storage Temperature: -25°C to +55°C
- Ambient Temperature: -60°C to +85°C
- Continuous Operating Temperature: -60°C to +130°C
- RoHS Compliance: Compliant without exemption
- REACH SVHC: No SVHC above 0.1 wt%
- Product Carbon Footprint (Cradle to Gate): 0.562 kg CO₂ eq.
Approvals & Certifications
- UL Certificate (UR): E60693
- cURusEX Certificate: E184763
- CSA Certificate: 200039-1888378
- ATEX Certificate: DEMKO14ATEX1338U
- IECEx Certificate: IECEXULD14.0005U
- IEC Standard: IEC 60947-7-2
- Explosion Protection Marking: Ex eb IIC Gb
- ATEX Classification: II 2 G D
- Explosion-Tested Version
Applications
The WPE 6 terminal block is ideal for grounding and bonding applications in industrial automation systems, electrical panels, machinery, power distribution equipment, process control installations, and hazardous-area environments requiring secure protective earth connections.
Package Information
- Order Number: 1010200000
- Type: WPE 6
