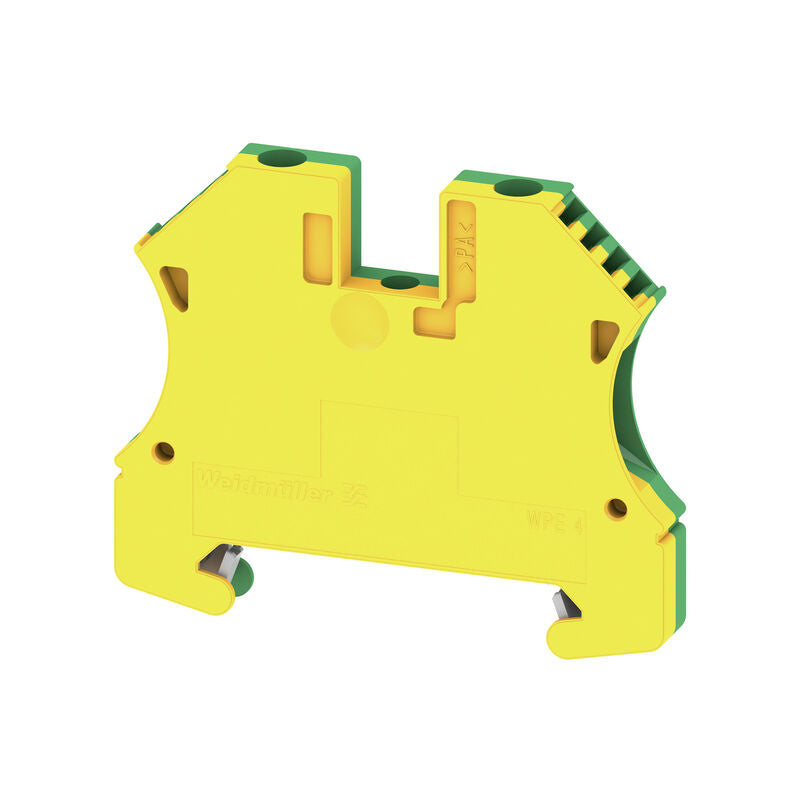

WPE 4 PE terminal Block protective earth (PE) WEIDMULLER 1010100000 Green/yellow
WPE 4 PE terminal Block protective earth (PE) WEIDMULLER 1010100000 Green/yellow
Regular price
$6.00 CAD
Regular price
Sale price
$6.00 CAD
Unit price
/
per
Weidmüller WPE 4 PE Terminal Block
The Weidmüller WPE 4 is a high-quality protective earth (PE) terminal block designed for secure grounding and bonding applications in industrial control panels and electrical installations. Featuring a robust screw-clamp connection system and compact DIN rail mounting design, this terminal block provides reliable performance, excellent electrical conductivity, and compliance with international safety standards.
Key Features
- Protective Earth (PE) terminal block
- Reliable screw connection technology
- Suitable for TS 35 DIN rail mounting
- Compact and space-saving design
- Rated conductor cross-section: 4 mm²
- Supports conductor sizes up to 6 mm²
- Green/yellow housing for easy PE identification
- Manufactured from high-performance Wemid insulation material
- UL 94 V-0 flame-retardant rating
- ATEX and IECEx certified for hazardous area applications
- RoHS compliant without exemptions
Technical Specifications
| Manufacturer | Weidmüller |
|---|---|
| Series | W-Series |
| Model | WPE 4 |
| Part Number | 1010100000 |
| GTIN (EAN) | 4008190039820 |
| Terminal Type | PE (Protective Earth) Terminal Block |
| Connection Type | Screw Connection |
| Number of Connections | 2 |
| Number of Levels | 1 |
| Rated Cross Section | 4 mm² |
| Maximum Conductor Size | 6 mm² |
| Rated Voltage | 800 V |
| Rated DC Voltage | 800 V |
| Rated Impulse Withstand Voltage | 8 kV |
| Contact Resistance | 1 mΩ |
| Conductor Range | 0.13 mm² – 6 mm² |
| Wire Size Range | AWG 26 – AWG 10 |
| Stripping Length | 10 mm |
| Tightening Torque | 0.5 – 1.0 Nm |
| Clamping Screw | M3 |
| Mounting Type | TS 35 DIN Rail |
| Connection Direction | Side Entry |
| Material | Wemid |
| Colour | Green / Yellow |
| Flammability Rating | UL94 V-0 |
Dimensions & Weight
| Width | 6.1 mm |
|---|---|
| Height | 56 mm |
| Depth | 46.5 mm |
| Depth Including DIN Rail | 47.5 mm |
| TS 35 Offset | 28 mm |
| Net Weight | 18.5 g |
Environmental Specifications
- Storage Temperature: -25°C to +55°C
- Ambient Temperature: -60°C to +85°C
- Continuous Operating Temperature: -60°C to +130°C
- RoHS Compliance: Compliant without exemption
- REACH SVHC: No SVHC above 0.1 wt%
- Product Carbon Footprint (Cradle to Gate): 0.522 kg CO₂ eq.
Approvals & Certifications
- UL Certificate (UR): E60693
- cURusEX Certificate: E184763
- CSA Certificate: 200039-1888378
- ATEX Certificate: DEMKO14ATEX1338U
- IECEx Certificate: IECEXULD14.0005U
- IEC Standard: IEC 60947-7-2
- Explosion Protection Marking: Ex eb IIC Gb
- ATEX Classification: II 2 G D
- Explosion-Tested Version
Applications
The WPE 4 terminal block is designed for safe grounding and bonding of electrical circuits in control panels, switchgear assemblies, industrial automation systems, power distribution equipment, machinery installations, and hazardous-area applications where dependable protective earth connections are required.
Package Information
- Order Number: 1010100000
- Type: WPE 4
