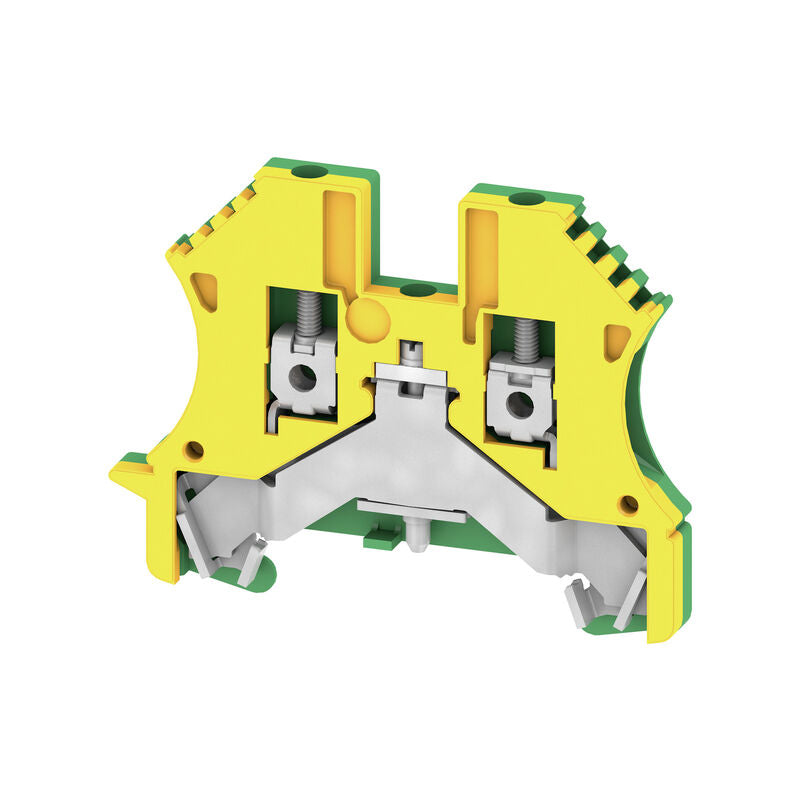

WPE 2.5 PE terminal Block Protective Earth WEIDMULLER 1010000000 Green/yellow 14AWG
WPE 2.5 PE terminal Block Protective Earth WEIDMULLER 1010000000 Green/yellow 14AWG
Regular price
$6.00 CAD
Regular price
Sale price
$6.00 CAD
Unit price
/
per
Weidmüller WPE 2.5 PE Terminal Block
The Weidmüller WPE 2.5 is a single-level protective earth (PE) terminal block designed for secure grounding applications in industrial control panels and electrical installations. Featuring a reliable screw connection system, this terminal block supports conductors up to 4 mm² and mounts directly onto TS 35 DIN rails.
Key Features
- Protective Earth (PE) terminal block
- Reliable screw-clamp connection technology
- Suitable for TS 35 DIN rail mounting
- Compact 5.1 mm width for space-saving installations
- High-performance Wemid insulating material
- Green/yellow housing for PE identification
- Flammability rating UL 94 V-0
- ATEX and IECEx certified for hazardous environments
- Operating temperature range from -60°C to +130°C
- RoHS compliant without exemptions
Technical Specifications
| Manufacturer | Weidmüller |
|---|---|
| Series | W-Series |
| Model | WPE 2.5 |
| Part Number | 1010000000 |
| GTIN (EAN) | 4008190143640 |
| Terminal Type | PE (Protective Earth) Terminal Block |
| Connection Type | Screw Connection |
| Number of Connections | 2 |
| Number of Levels | 1 |
| Rated Cross Section | 2.5 mm² |
| Rated Voltage | 800 V |
| Rated DC Voltage | 800 V |
| Rated Impulse Voltage | 8 kV |
| Contact Resistance | 1.33 mΩ |
| Conductor Range | 0.05 mm² to 4 mm² |
| Wire Size Range | AWG 30 to AWG 12 |
| Stripping Length | 10 mm |
| Tightening Torque | 0.4 – 0.6 Nm |
| Mounting | TS 35 DIN Rail |
| Material | Wemid |
| Colour | Green / Yellow |
| Flammability Rating | UL94 V-0 |
Dimensions
| Width | 5.1 mm |
|---|---|
| Height | 60 mm |
| Depth | 46.5 mm |
| Depth Including DIN Rail | 47 mm |
| TS 35 Offset | 32 mm |
| Weight | 16.22 g |
Environmental Specifications
- Storage Temperature: -25°C to +55°C
- Ambient Temperature: -60°C to +85°C
- Continuous Operating Temperature: -60°C to +130°C
- RoHS Compliance: Compliant without exemption
- REACH SVHC: No SVHC above 0.1 wt%
- Product Carbon Footprint (Cradle to Gate): 0.503 kg CO₂ eq.
Approvals & Certifications
- UL Certificate (UR): E60693
- cURusEX Certificate: E184763
- CSA Certificate: 200039-1888378
- ATEX Certificate: DEMKO14ATEX1338U
- IECEx Certificate: IECEXULD14.0005U
- IEC Standard: IEC 60947-7-2
- Ex Marking: Ex eb IIC Gb
- Ex Directive: II 2 G D
Applications
The WPE 2.5 grounding terminal block is ideal for industrial automation systems, control cabinets, machinery installations, power distribution panels, and hazardous-area applications requiring reliable protective earth connections and compliance with international safety standards.
