General Specifications

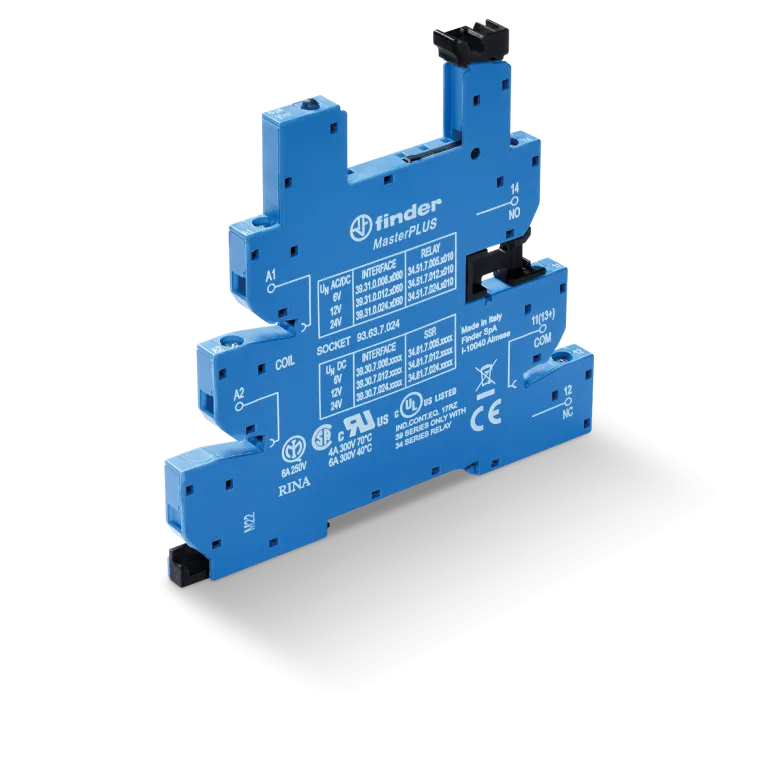

Finder Type 93.63 – Screw terminal socket for 34 series relays, DIN rail mounting, secure wiring, and accessory compatibility.
| Product Name | Finder 93.63 Screw Terminal Socket |
| Series Compatibility | Finder 34 Series Relays |
| Mounting | 35 mm DIN rail (EN 60715) |
| Connection Type | Screw terminals |
| Dielectric Strength | 6 kV (1.2/50 μs) between coil and contacts |
| Protection Category | IP20 |
| Ambient Temperature | –40 °C to +70 °C (≤ 60 V), –40 °C to +55 °C (> 60 V) |
| Wire Capacity | 1 × 2.5 mm² or 2 × 1.5 mm² (solid/stranded) |
| Screw Torque | 0.5 Nm |
| Accessories | 20-way jumper link, plastic separator, marker tags |
| Approvals | UL Listing (with certain relay/socket combinations), CE |
Key Features
- ✔ Secure screw terminal connections
- ✔ DIN rail mounting for easy installation
- ✔ Compatible with Finder 34 series relays
- ✔ Supports jumper links and marker tags
- ✔ Provides 6 kV dielectric strength
- ✔ Compact design with IP20 protection
Typical Applications
- ✔ Industrial automation panels
- ✔ Control cabinets with slim relays
- ✔ HVAC and building management systems
- ✔ Water treatment and pump control
- ✔ General electrical installations
