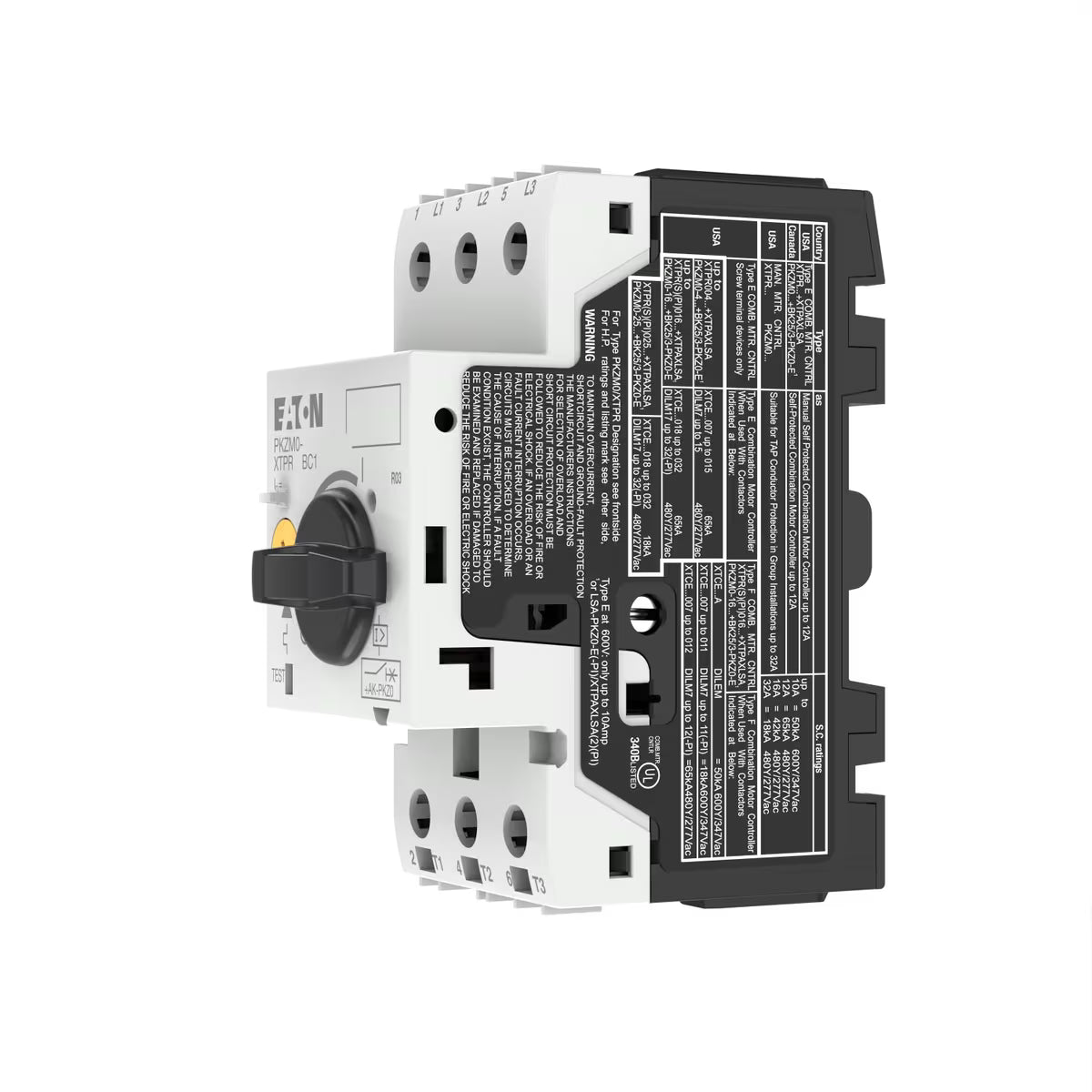

072736 PKZM0-2,5 Motor-protective circuit-breaker, 0.75 kW, 1.6 - 2.5 A
072736 PKZM0-2,5 Motor-protective circuit-breaker, 0.75 kW, 1.6 - 2.5 A
Regular price
$289.00 CAD
Regular price
Sale price
$289.00 CAD
Unit price
per
General Specifications
Eaton Moeller® series PKZM0-2,5 Motor-protective circuit-breaker, 0.75 kW, 1.6–2.5 A, Screw terminals
| Product Name | Eaton Moeller® series PKZM0 Motor-protective circuit-breaker |
| Catalog Number | 072736 |
| Model Code | PKZM0-2,5 |
| EAN | 4015080727361 |
| Product Length/Depth | 76 mm |
| Product Height | 93 mm |
| Product Width | 45 mm |
| Product Weight | 0.287 kg |
| Certifications | UL File No.: E36332 UL Category Control No.: NLRV UL 60947-4-1 CSA CSA-C22.2 No. 60947-4-1-14 CSA File No.: 165628 CSA Class No.: 3211-05 IEC/EN 60947 IEC/EN 60947-4-1 VDE 0660 CE |
Key Features
- ✔ Protects motors up to 0.75 kW, and therefore ensures reliable operation
- ✔ Adjustable overload release range: 1.6–2.5 A, so it adapts to different setups
- ✔ Three-pole design with screw terminals, which makes wiring secure
- ✔ Phase-failure sensitivity (IEC/EN 60947-4-1, VDE 0660), and consequently prevents damage
- ✔ Temperature compensation from –25 °C to +55 °C, and thus suitable for harsh environments
- ✔ Compact DIN rail mounting (IEC/EN 60715), so installation is simplified
- ✔ Certified to UL, CSA, CE, IEC standards, which guarantees compliance worldwide
Electrical Ratings
- ✔ Motor rating (AC-3): 0.37 kW at 230 V, 0.75 kW at 400 V, 1.1 kW at 440–500 V, 1.5 kW at 690 V
- ✔ Short-circuit release: max 38.8 A, therefore offering added safety
- ✔ Rated operational voltage: up to 690 V AC
- ✔ Rated impulse withstand voltage: 6000 V AC, which ensures durability
- ✔ Mechanical lifespan: 100,000 operations, and consequently long service life
- ✔ Electrical lifespan: 100,000 operations, so performance remains consistent
- ✔ Operating frequency: 40 operations/hour
Additional Details
- ✔ Shock resistance: 25 g mechanical (IEC/EN 60068-2-27), therefore suitable for rugged use
- ✔ Finger and back-of-hand proof (EN 50274), so safety is enhanced
- ✔ Explosion safety category: ATEX dust-ex protection, Ex II (2) GD
- ✔ Terminal capacity: 1 × (1–6 mm²), 2 × (1–6 mm²), AWG 18–10
- ✔ Tightening torque: 1 Nm (control circuit), 1.7 Nm (main cable)
- ✔ Ambient operating temperature: –25 °C to +55 °C (open), –25 °C to +40 °C (enclosed)
- ✔ Storage temperature: –40 °C to +80 °C
- ✔ Altitude: up to 2000 m
Typical Applications
- ✔ Motor protection for pumps, fans, and conveyors, and consequently reduces downtime
- ✔ Industrial automation panels requiring compact breakers
- ✔ HVAC systems with small motors, so energy efficiency improves
- ✔ Water treatment and filtration plants, and therefore safer operations
- ✔ General electrical installations needing overload protection
