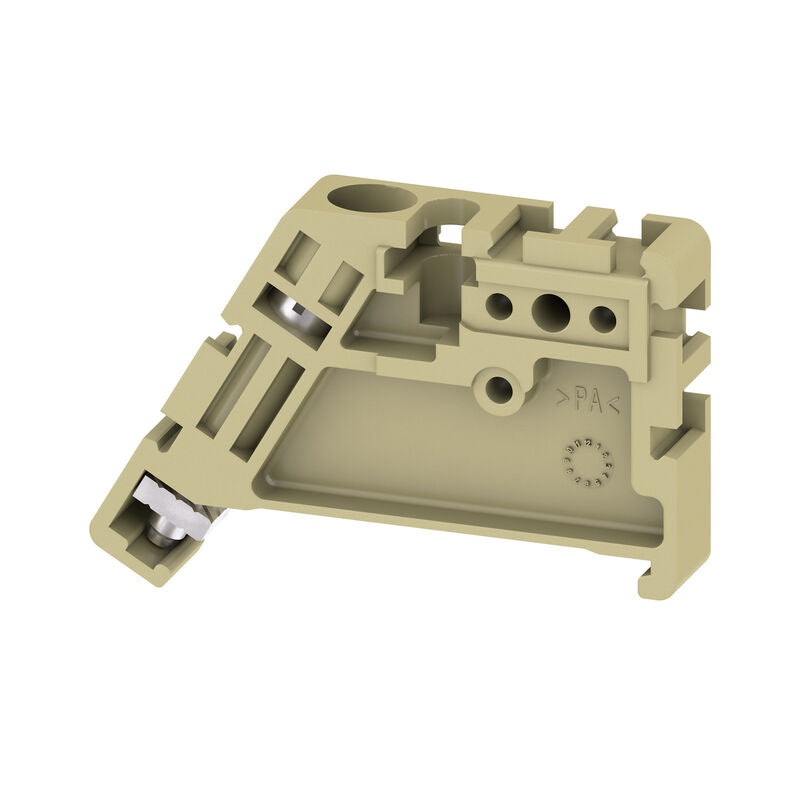

0383560000 EW 35 End bracket, beige WEIDMULLER, TS 35, V-2, Wemid, Width: 8.5 mm, 100 °C

0383560000 EW 35 End bracket, beige WEIDMULLER, TS 35, V-2, Wemid, Width: 8.5 mm, 100 °C

$1.51 CAD
$1.51 CAD
Sale Sold out



🟤 EW 35 End Bracket (Beige, TS 35)

End bracket, beige

Order No.: 0383560000

Type: EW 35

GTIN (EAN): 4008190181314

Quantity: 50 items per pack

✨ Product Highlights

  • End bracket for terminals
  • Mounting rail: TS 35
  • Width: 8.5 mm
  • Continuous operating temperature: up to 100 °C
  • Material: Wemid (beige)
  • UL 94 flammability rating: V-2

📐 Dimensions & Weight

  • Depth: 27 mm (1.063 in)
  • Height: 46 mm (1.811 in)
  • Width: 8.5 mm (0.335 in)
  • Net weight: 5.32 g

🌡️ Operating Conditions

  • Ambient temperature: -50 °C to +55 °C
  • Continuous operating: -50 °C to +100 °C

✅ Environmental Product Compliance

  • RoHS: Compliant without exemption
  • REACH SVHC: No substances above 0.1 wt%
  • Product Carbon Footprint: 0.044 kg CO₂ eq. (cradle to gate)

⚙️ Technical Specifications

  • Installation advice: Direct mounting
  • Locking: For screw fixing
  • Mounting type: When screwed in
  • Tightening torque: 0.5 Nm
  • TS 35 offset: 22.5 mm

📦 Classifications

  • ETIM 8.0 / 9.0 / 10.0: EC001041
  • ECLASS 14.0 / 15.0: 27-25-03-02

👉 Perfect for **secure terminal mounting** on TS 35 rails, offering durability, compliance, and reliable performance in industrial environments.
